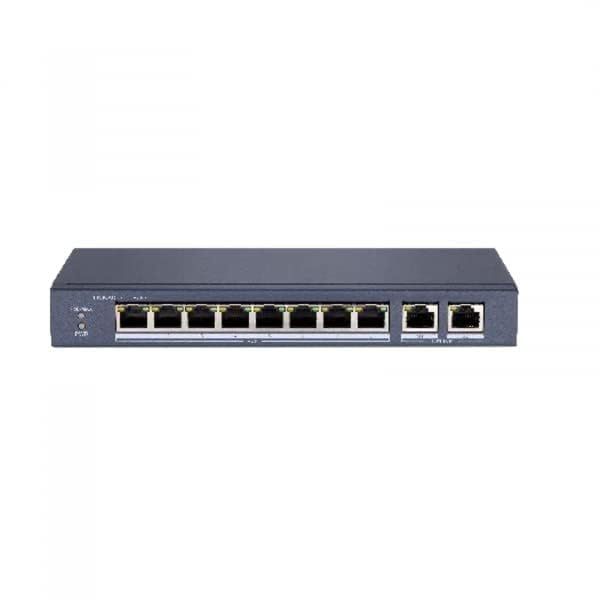

Hikvision DS-3E0310P-E/M 8 Port Fast Ethernet Unmanaged POE Switch

Hikvision DS-3E0310P-E/M 8-Port Fast Ethernet Unmanaged PoE Switch is a compact and reliable plug-and-play networking solution designed for small CCTV systems and business networks. With 8 PoE ports and additional Gigabit uplink ports, it delivers both power and data over a single Ethernet cable, simplifying installation for IP cameras and other PoE-enabled devices. Its unmanaged design requires no configuration, while features like long-range transmission, surge protection, and stable power delivery ensure dependable performance in everyday surveillance deployments.

Product Features

8 Fast Ethernet PoE Ports with Gigabit Uplinks

Equipped with 8 × 10/100 Mbps PoE ports and 2 × Gigabit RJ45 uplink ports for efficient device connectivity and network expansion.

Unmanaged Plug-and-Play Operation

No configuration required—simply connect devices and the switch automatically handles power and data transmission.

IEEE 802.3af/at PoE Support

Supports both PoE and PoE+ standards, delivering up to 30 W per port for IP cameras, access points, and VoIP devices.

60W Total PoE Power Budget

Provides a total PoE power budget of up to 60 W, suitable for small to medium camera deployments.

Long-Range Transmission up to 300m

Supports extended PoE transmission up to 300 meters, ideal for outdoor and wide-area surveillance setups.

6kV Surge Protection

Built-in surge protection safeguards the switch and connected devices from electrical spikes and lightning.

Stable Wire-Speed Forwarding

Ensures efficient data transmission with store-and-forward switching for reliable network performance.

Durable Fan-Free Metal Design

Features a high-strength metal enclosure with silent, fanless operation for long-term reliability.

Product Specifications

• Ports: 8 × 10/100 Mbps PoE ports, 2 × Gigabit RJ45 uplink ports
• PoE standard: IEEE 802.3af / IEEE 802.3at
• Max port power: Up to 30 W per port
• Total PoE power budget: 60 W
• Switching capacity: 5.6 Gbps
• Packet forwarding rate: 4.17 Mpps
• MAC address table: 8K entries
• Internal cache: 4 Mbits
• Transmission distance: Up to 300 m (extend mode)
• Surge protection: 6 kV
• Power supply: 48 VDC, 1.35 A
• Power consumption: Max. 65 W
• Operating temperature: 0°C to 40°C
• Storage temperature: -40°C to 85°C
• Operating humidity: 5% to 95% (non-condensing)
• Dimensions: 217.6 × 103.35 × 27.8 mm
• Weight: Approx. 0.55 kg
• Installation: Desktop or wall-mounted
• Enclosure: Metal, fanless design
