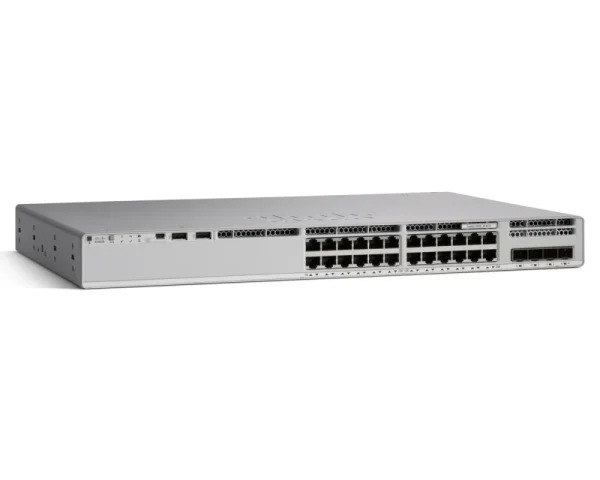

Cisco C9200L-24P-4G-E – 24-Port PoE+, 4×1G uplinks

Cisco Catalyst C9200L-24P-4G-E delivers enterprise-grade access-layer switching for small-to-medium business or branch-office environments, with 24 full-speed PoE+ downlink ports (10/100/1000 Mbps) and four fixed 1 Gb uplink ports. It offers advanced Layer 2/3 features, stacking capability and intelligent power delivery to edge devices such as wireless access points, IP cameras and VoIP phones, while maintaining a compact rack-mount form factor and robust manageability.

Product Features

24 Gigabit PoE+ Access Ports

Enables full-speed 10/100/1000 connectivity for 24 client devices and supplies PoE+ power to each port, reducing the need for separate power supplies for connected devices.

4 × 1G Fixed Uplink Ports

Provides four dedicated 1 Gbps uplink ports (typically SFP or combo) for reliable backbone or aggregation links to core switches or upstream network paths.

Full Managed Layer 2+/Layer 3 Capabilities

As part of the Catalyst 9200 series, this model supports advanced features such as VLANs, link aggregation, QoS, access control lists (ACLs), IPv6-first-hop security, dynamic ARP inspection and more — making it suitable for mission-critical access networks.

Robust Hardware & Efficient Operation

Built with energy-efficient technologies (including support for stacking up to 80 Gbps for this “L” fixed-uplink variant) and designed for 1U rack-mount deployment.

Product Specifications

• Model: C9200L-24P-4G-E
• Downlink Ports: 24 × 10/100/1000 Mbps RJ-45 with full PoE+ support (24 ports)
• Uplink Ports: 4 × 1 Gb fixed uplinks
• Switching Capacity: approximately 56 Gbps
• Forwarding Rate: around 41.66 Mpps (64-byte packets)
• Stacking Bandwidth: up to ~80 Gbps for this fixed-uplink “L” variant
• Default Power Supply: PWR-C5-600WAC
• Form Factor / Dimensions: approx. 1.73″ H × 17.5″ W × 11.3″ D (4.4 × 44.5 × 28.8 cm)
• Weight: ~4.35 kg (≈9.6 lb) for this model variant
• Software Package: “Network Essentials” licensing (denoted by the “-E” suffix)
