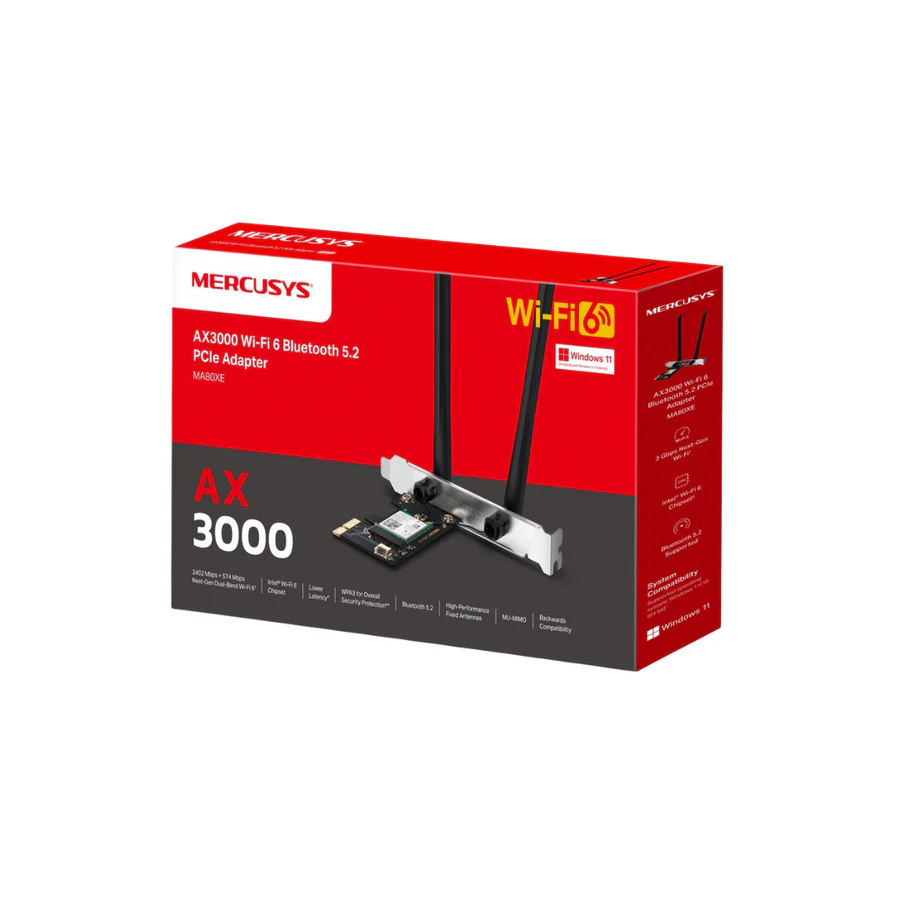

Mercusys MA80XE AX3000 Wi-Fi 6 Bluetooth 5.2 PCIe Adapter

Mercusys MA80XE AX3000 Wi-Fi 6 Bluetooth 5.2 PCIe Adapter is a high-performance desktop networking solution designed to deliver ultra-fast wireless connectivity and advanced Bluetooth functionality for gaming, streaming, video conferencing, and heavy internet usage. Powered by the latest Wi-Fi 6 technology and an Intel Wi-Fi 6 chipset, this PCIe adapter provides combined wireless speeds of up to 3000Mbps across dual-band frequencies. Equipped with two high-gain antennas, Bluetooth 5.2 support, WPA3 security, and low-latency OFDMA technology, the MA80XE enhances network stability, expands wireless coverage, and improves overall performance for modern desktop PCs.

Product Features

AX3000 Dual-Band Wi-Fi 6 Performance

Delivers ultra-fast wireless speeds of up to 2402Mbps on the 5GHz band and 574Mbps on the 2.4GHz band for smooth 4K streaming, online gaming, downloads, and multitasking.

Advanced Wi-Fi 6 Technology

Supports OFDMA and MU-MIMO technologies to improve network efficiency, reduce latency, and allow multiple devices to communicate simultaneously without congestion.

Bluetooth 5.2 Connectivity

Features the latest Bluetooth 5.2 technology for faster data transfer, broader wireless range, and stable connections with headphones, keyboards, mice, controllers, and other Bluetooth devices.

Intel Wi-Fi 6 Chipset

Built with an Intel Wi-Fi 6 chipset that provides stable wireless performance, enhanced compatibility, and reliable high-speed connectivity for demanding applications.

High-Gain External Antennas

Equipped with two fixed high-performance antennas that extend Wi-Fi coverage and improve signal reception for stronger and more consistent connectivity.

Enhanced WPA3 Security

Supports WPA3 wireless encryption for improved protection against unauthorized access, password attacks, and network security threats.

PCIe Interface for Desktop PCs

Uses a PCI Express interface for high-bandwidth wireless performance and reliable desktop installation.

Wide Windows Compatibility

Compatible with Windows 10 and Windows 11 64-bit operating systems for seamless integration with modern desktop computers.

Product Specifications

• Brand: Mercusys
• Model: MA80XE
• Product type: PCIe Wi-Fi and Bluetooth adapter
• Wi-Fi technology: Wi-Fi 6 (802.11ax)
• Wireless standards: IEEE 802.11ax/ac/a/b/g/n
• Wi-Fi speed: Up to 2402Mbps on 5GHz and 574Mbps on 2.4GHz
• Frequency bands: Dual-band 2.4GHz and 5GHz
• Bluetooth version: Bluetooth 5.2
• Interface: PCI Express (PCIe)
• Antennas: 2 × fixed high-performance omnidirectional antennas
• Wireless security: WPA-PSK, WPA2-PSK, WPA3-SAE
• Wireless technologies: OFDMA, MU-MIMO, 1024-QAM
• Chipset: Intel Wi-Fi 6 chipset
• Operating systems: Windows 10 and Windows 11 (64-bit)
• Dimensions: 226.3 × 120.8 × 21.5 mm
• Package contents: MA80XE adapter, Bluetooth header cable, quick installation guide, resource CD
• Applications: Desktop Wi-Fi upgrade, gaming, streaming, video conferencing, Bluetooth connectivity, home and office networking
