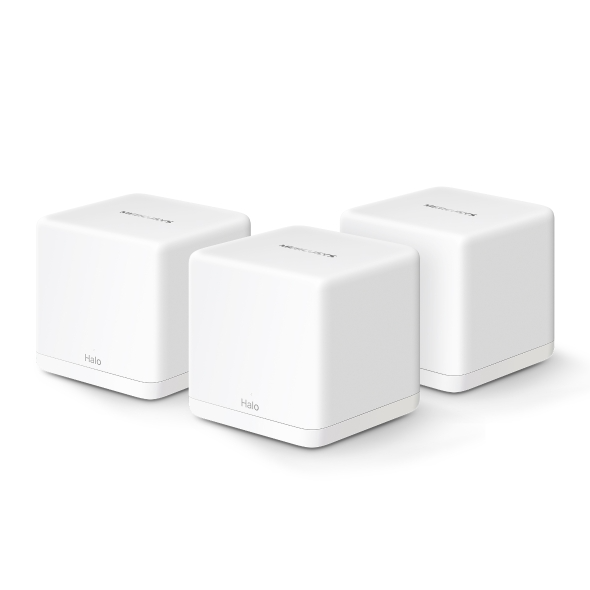

Mercusys Halo H60X access point Wi-Fi 6 AX1500 Mesh

Mercusys Halo H60X AX1500 Whole Home WiFi 6 Mesh System is a powerful mesh networking solution designed to eliminate WiFi dead zones and deliver seamless high-speed internet coverage throughout homes and offices. Powered by advanced WiFi 6 technology, the Halo H60X provides combined wireless speeds of up to 1500Mbps, supporting smooth 4K streaming, online gaming, video conferencing, and smart home connectivity. With intelligent mesh roaming, multiple Halo units work together under a single WiFi network name, automatically connecting devices to the strongest signal as users move around. Its easy app-based setup, gigabit ports, and support for over 100 connected devices make it an ideal solution for modern high-density wireless environments.

Product Features

Advanced WiFi 6 Performance

Equipped with WiFi 6 technology, the Halo H60X improves wireless speed, capacity, and efficiency for faster and more stable internet connections across multiple devices.

AX1500 Dual-Band Wireless Speeds

Delivers combined wireless speeds of up to 1500Mbps, including up to 1201Mbps on the 5GHz band and 300Mbps on the 2.4GHz band for smooth streaming and low-latency gaming.

Seamless Whole-Home Mesh Coverage

Creates a unified mesh network that automatically switches devices between Halo units for uninterrupted connectivity while moving around the home or office.

Wide Area Coverage

Provides extensive wireless coverage of up to 4,000 ft² (350 m²) for 2-pack systems and up to 6,000 ft² (550 m²) for 3-pack systems, effectively eliminating WiFi dead zones.

Supports Over 100 Connected Devices

Designed to handle high-density wireless environments with stable connectivity for smartphones, laptops, smart TVs, IP cameras, gaming consoles, and IoT devices.

Intelligent Roaming Technology

Uses 802.11k/v/r roaming protocols to automatically connect devices to the strongest Halo node for a smoother and more reliable network experience.

Full Gigabit Ethernet Ports

Features gigabit WAN/LAN ports for ultra-fast wired connections to gaming consoles, PCs, smart TVs, and NAS devices.

Easy App-Based Management

The MERCUSYS mobile app simplifies installation, parental controls, guest network setup, and remote network management from Android and iOS devices.

Product Specifications

• Brand: Mercusys
• Model: Halo H60X
• Product type: Whole-home WiFi 6 mesh system
• Wireless standard: IEEE 802.11ax/ac/n/a 5GHz, IEEE 802.11n/b/g 2.4GHz
• WiFi speed: Up to 1201Mbps on 5GHz and 300Mbps on 2.4GHz
• Frequency bands: Dual-band 2.4GHz and 5GHz
• Mesh protocol: 802.11k/v/r
• Wireless technologies: OFDMA, MU-MIMO, Beamforming, 1024-QAM, BSS Color
• Wireless security: WPA-PSK, WPA2-PSK, WPA3
• Coverage: Up to 4,000 ft² (2-pack) or 6,000 ft² (3-pack)
• Device capacity: Supports over 100 devices
• Ethernet ports: Gigabit WAN/LAN ports
• Operating modes: Router mode and Access Point mode
• Guest network: Supported on both 2.4GHz and 5GHz
• Management: MERCUSYS mobile app and web management
• IPv6 support: Yes
• QoS support: WMM
• Firewall security: SPI Firewall
• Dimensions: 88 × 88 × 88 mm per unit
• Package contents: Halo units, power adapters, RJ45 Ethernet cable, quick installation guide
• Applications: Whole-home WiFi coverage, smart homes, gaming, streaming, office networking, multi-floor internet coverage
