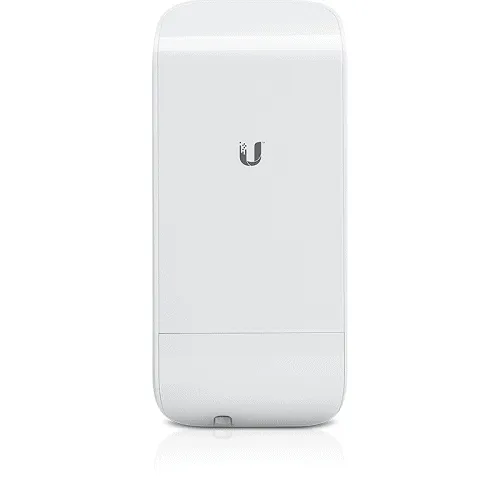

Ubiquiti LOCOM2 NanoStation Loco M2 2.4GHz Outdoor CPE Access Point

Ubiquiti LOCOM2 NanoStation Loco M2 is a compact and cost-effective 2.4GHz outdoor CPE (Customer Premises Equipment) designed for reliable point-to-point and point-to-multipoint wireless networking. Built for WISP deployments, CCTV connectivity, rural internet distribution, and long-range wireless bridging, this device combines an integrated high-gain antenna with Ubiquiti’s advanced airMAX technology to deliver stable throughput and low-latency performance. Its weather-resistant enclosure and passive PoE support make it ideal for outdoor installations in demanding environments.

Product Features

Integrated 8dBi Dual-Polarized Antenna

The NanoStation Loco M2 features a built-in 8dBi dual-polarized MIMO antenna optimized for 2.4GHz operation. This integrated design enhances signal strength and reduces interference, making it suitable for short to medium-range wireless links.

airMAX TDMA Technology

Powered by Ubiquiti’s airMAX TDMA protocol, the device improves network efficiency and reduces latency compared to standard Wi-Fi protocols. This ensures better performance in high-density deployments and WISP environments.

Compact and Weather-Resistant Design

The slim, lightweight enclosure is UV-stabilized and built for outdoor use. It withstands harsh weather conditions, making it ideal for rooftop, pole, or wall mounting.

Flexible Deployment Options

The NanoStation Loco M2 supports point-to-point (PtP), point-to-multipoint (PtMP), and CPE applications. It can function as an access point, station, or bridge, offering versatile deployment scenarios.

Passive Power over Ethernet (PoE) Support

The device includes 24V passive PoE support for simplified installation. Both power and data are transmitted over a single Ethernet cable, reducing cabling complexity and installation costs.

Advanced airOS Management

Ubiquiti’s intuitive airOS interface provides powerful configuration tools, including signal strength monitoring, throughput testing, VLAN support, QoS, and advanced security settings for professional network management.

Product Specifications

• Brand: Ubiquiti
• Model: NanoStation Loco M2 (LOCOM2)
• Frequency Band: 2.4GHz (2400–2483.5 MHz)
• Wireless Standards: IEEE 802.11b/g/n
• airMAX Technology: Yes
• Antenna Gain: 8dBi integrated dual-polarized
• Maximum Throughput: Up to 150 Mbps
• Ethernet Port: 1 × 10/100 Mbps RJ45
• Power Method: 24V Passive PoE
• Power Consumption: Approximately 5.5W
• Operating Temperature: -30°C to 75°C
• Enclosure: Outdoor UV-stabilized plastic
• Mounting: Pole-mount kit included
• Operating Modes: Access Point, Station, Bridge
• Security: WPA2-AES, MAC filtering, VLAN support

Ubiquiti LOCOM2 NanoStation Loco M2 is a reliable and affordable solution for extending wireless networks, connecting remote buildings, and delivering last-mile internet connectivity with consistent performance.
