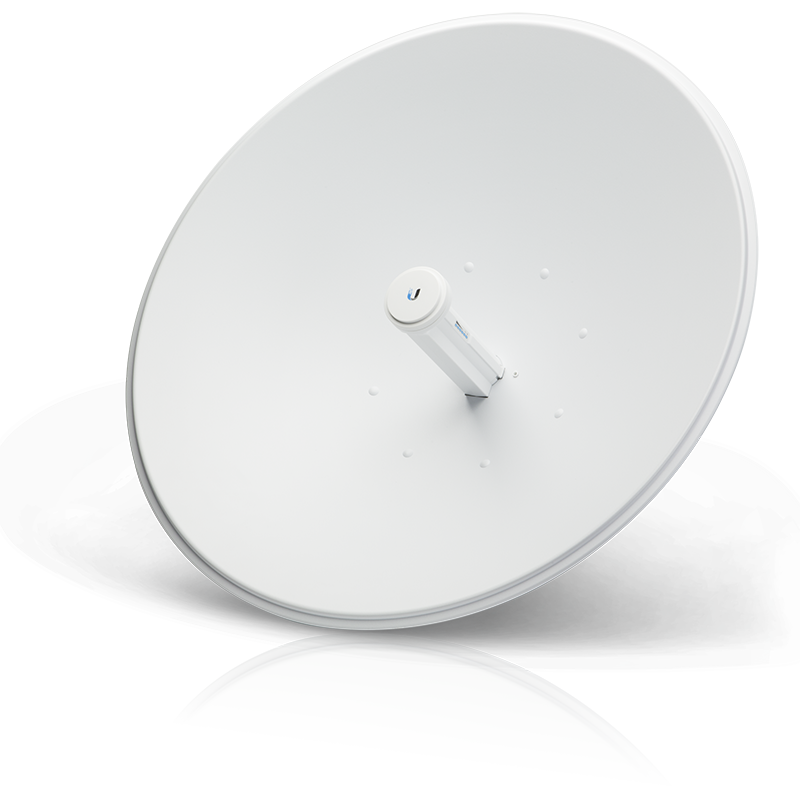

Ubiquiti PBE-5AC-620 PowerBeam ac 620 High-Performance 5GHz Outdoor Bridge
Ubiquiti PBE-5AC-620 PowerBeam ac 620 is a high-gain 5GHz outdoor wireless bridge engineered for long-range point-to-point connectivity and high-capacity backhaul deployments. Designed with Ubiquiti’s advanced airMAX ac technology, this powerful CPE delivers exceptional throughput, improved noise immunity, and enhanced scalability for WISPs, enterprise networks, and surveillance systems. Its integrated 620mm dish reflector and precision-engineered radio architecture ensure stable, high-speed connections over extended distances, even in challenging RF environments.
Product Features
High-Gain 29dBi Integrated Dish Antenna
The PowerBeam ac 620 features a large 620mm dish reflector with a 29dBi antenna gain, delivering focused beam performance for long-distance links. This design enhances signal strength, reduces interference, and improves link reliability.
airMAX ac Technology
Powered by Ubiquiti’s airMAX ac TDMA protocol, the PBE-5AC-620 significantly increases network efficiency and throughput while reducing latency. It is ideal for high-density deployments requiring stable and scalable wireless backhaul.
Dedicated Management Radio
The device includes a dedicated Wi-Fi management radio for quick and convenient setup using the UNMS mobile app or web interface. This simplifies installation and remote monitoring without disrupting the primary wireless link.
Gigabit Ethernet Connectivity
Equipped with a 10/100/1000 Mbps Gigabit Ethernet port, the PowerBeam ac 620 supports high-speed data transfer, making it suitable for bandwidth-intensive applications such as video surveillance and enterprise connectivity.
Advanced RF Performance
The enhanced RF design provides superior noise filtering and interference resistance. This ensures stable performance in crowded 5GHz environments and maximizes link uptime.
Durable Outdoor Construction
Built with UV-stabilized materials and industrial-grade components, the PBE-5AC-620 is engineered to withstand harsh weather conditions, including extreme temperatures and wind exposure.
Flexible Deployment and Alignment
The precision alignment mount allows for accurate aiming during installation, ensuring optimal signal performance for long-range wireless bridges.
Product Specifications
- Brand: Ubiquiti
- Model: PBE-5AC-620
- Product Line: PowerBeam ac
- Frequency Band: 5GHz (5150–5875 MHz)
- Wireless Standards: 802.11ac
- airMAX ac Support: Yes
- Antenna Gain: 29dBi
- Dish Diameter: 620 mm
- Maximum Throughput: Up to 450+ Mbps real TCP/IP throughput
- Ethernet Port: 1 × 10/100/1000 Mbps RJ45
- Power Method: 24V Passive PoE
- Power Consumption: Approximately 8.5W
- Operating Temperature: -40°C to 70°C
- Wind Survivability: Up to 200 km/h
- Mounting: Pole-mount kit included
- Management Interface: airOS with mobile app support
- Security: WPA2-AES, VLAN support, advanced QoS
Ubiquiti PBE-5AC-620 PowerBeam ac 620 is a professional-grade outdoor wireless solution for long-distance bridging and high-capacity backhaul, delivering reliable performance, advanced RF efficiency, and scalable network expansion for demanding deployments.
