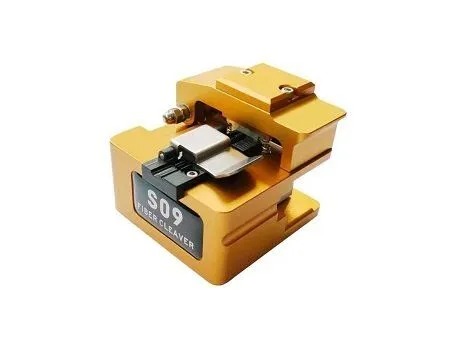

S09 Fiber Cleaver

S09 Fiber Cleaver is a high-precision optical fiber cutting tool designed for accurate and reliable fiber preparation during fusion splicing and fiber optic termination. Built for professional FTTH installations, telecommunications maintenance, and fiber optic networking projects, the S09 delivers clean and consistent cleaves with minimal splice loss. Its durable metal construction, precision tungsten steel blade, and compact portable design make it suitable for both field technicians and laboratory environments.

Product Features

High-Precision Fiber Cleaving

The S09 Fiber Cleaver delivers accurate fiber cuts with a cleave angle of less than 0.5° to 0.8°, ensuring clean fiber ends for efficient fusion splicing and reduced signal loss.

Durable Tungsten Steel Blade

Equipped with a high-strength tungsten steel blade designed for long service life and consistent cutting performance even in demanding field conditions.

Long Blade Lifespan

The rotating multi-position blade supports approximately 32,000 to 48,000 cleaves depending on usage and maintenance, reducing replacement frequency and operational costs.

Compatible with Multiple Fiber Types

Supports single-mode and multi-mode optical fibers with coating diameters ranging from 250μm to 900μm and compatible with 3.0mm fiber cables.

Compact and Portable Design

Its lightweight and compact aluminum alloy body makes it easy to transport and operate during field installations and maintenance tasks.

Built-In Waste Fiber Collector

The integrated waste fiber container helps maintain a clean working environment and improves safety during fiber cutting operations.

Easy Blade Adjustment

Features adjustable blade height and rotation settings for maintaining optimal cleaving performance and extending blade usability.

Stable 3-in-1 Fiber Clamp

The cleaver includes a multifunctional fiber holder capable of securely handling bare fibers, pigtails, and sheathed fiber cables for precise positioning during cutting.

Product Specifications

• Product Type: Optical Fiber Cleaver
• Model: S09 Fiber Cleaver
• Application: Fiber optic splicing and FTTH installation
• Cleaving Type: Single quartz optical fiber
• Compatible Fiber Types: Single-mode and multi-mode fiber
• Applicable Cladding Diameter: 125μm
• Applicable Coating Diameter: 250μm to 900μm
• Supported Cable Diameter: Up to 3.0mm fiber cable
• Cleave Length: Approximately 8mm to 20mm
• Cleave Angle: Less than 0.5° to 0.8°
• Blade Material: Tungsten steel
• Blade Positions: 16 to 20 rotating cutting positions
• Blade Life: Approximately 32,000 to 48,000 cleaves
• Body Material: Aluminum alloy / metal construction
• Weight: Approximately 300g
• Features: Waste fiber collector, adjustable blade, portable design
• Usage: FTTH installation, telecommunications, fiber optic maintenance, fusion splicing applications
