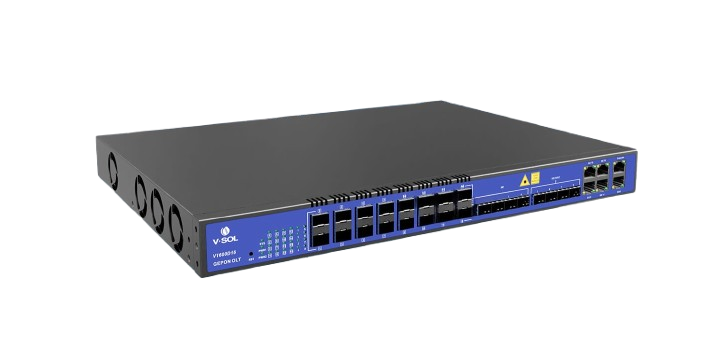

V-SOL 16 Port EPON OLT V1600D16

V-SOL V1600D16 is a high-performance 16-port EPON OLT (Optical Line Terminal) ideal for fiber access network deployment in ISPs, telecom operators, and enterprise applications. Engineered for stability, scalability, and ease of management, this compact 1U rack-mount device supports up to 1024 ONUs and ensures smooth data transmission across FTTH (Fiber to the Home) infrastructures. Designed to meet the evolving demands of fiber broadband deployment, it integrates advanced Layer 2 switching features and powerful traffic management functions.

Product Features

High Port Density and Scalability

Equipped with 16 EPON ports, the V1600D16 supports up to 1024 ONU devices, making it highly scalable for expanding networks and medium-to-large deployments.

Compact and Rack-Mountable Design

With a 1U height, this OLT is space-efficient and easily integrated into standard 19-inch racks, ideal for data centers and equipment rooms with limited space.

Advanced Layer 2 Switching Capabilities

Supports VLAN, QinQ, port isolation, MAC address filtering, and STP/RSTP protocols for secure and flexible network segmentation.

Comprehensive Management Options

Includes CLI, Telnet, SNMP, Web-based GUI, and EMS (Element Management System) for versatile and simplified network administration.

Robust Network Protection

Features include loop detection, port storm control, broadcast suppression, and security binding to protect network integrity and prevent data loss.

High Uplink Capacity

Comes with 4 uplink ports (2×10GE SFP+ and 2×GE Combo), allowing flexible high-speed connections to the core network.

Energy Efficient with Intelligent Cooling

Smart fan control and energy-saving architecture reduce operational costs and extend device lifespan.

Product Specifications

• 16 EPON ports, SC/UPC connectors
• Supports up to 1024 ONU devices
• 2×10GE SFP+ uplink ports
• 2×GE Combo uplink ports (RJ45/SFP)
• 1U 19-inch rack-mountable form factor
• Switching capacity: 92 Gbps
• Forwarding rate: 68.8 Mpps
• MAC address table: 16K
• Jumbo frame: 9600 Bytes
• Power supply: AC 100–240V, 50/60Hz
• Operating temperature: -10°C to 55°C
• Storage temperature: -40°C to 85°C
• Management interfaces: CLI, Telnet, SNMP, Web, EMS
• Dimensions: 442mm × 320mm × 44mm
• Weight: Approx. 4.2 kg

Application

V-SOL 16 Port EPON OLT V1600D16 is purpose-built for high-performance fiber optic access networks, delivering exceptional efficiency and scalability across a variety of deployment scenarios. It is ideal for:

• FTTH (Fiber to the Home): Enables high-speed internet, IPTV, VoIP, and other broadband services for residential users with minimal latency and high reliability.
• FTTB (Fiber to the Building): Suitable for connecting multiple users in residential complexes, hotels, and office buildings with secure and segmented access.
• ISPs and Telecom Operators: Supports large-scale user access and bandwidth management in service provider networks, allowing flexible and cost-effective network expansion.
• Enterprise Networks: Provides stable and scalable fiber connectivity for corporate campuses, government institutions, and educational facilities.
• Industrial Parks and Smart Cities: Facilitates high-capacity data transmission to support surveillance systems, IoT devices, and automation infrastructure.
• Hospitality and Commercial Facilities: Delivers uninterrupted multimedia and internet services to hotels, malls, and commercial centers with centralized control.

V1600D16 empowers operators to build next-generation broadband networks with low total cost of ownership, future-ready scalability, and simplified operation.

FAQs

Q1: How many users can the V-SOL V1600D16 support?
A: V1600D16 supports up to 1024 ONU (Optical Network Unit) devices, making it suitable for medium to large-scale deployments in both residential and commercial networks.

Q2: What is the difference between EPON and GPON?
A: EPON (Ethernet Passive Optical Network) uses Ethernet protocols and is generally more cost-effective for high-bandwidth applications. GPON (Gigabit Passive Optical Network) offers higher security and better QoS but at a higher cost. The V1600D16 supports EPON technology for scalable and efficient fiber network deployment.

Q3: What uplink options are available on this OLT?
A: The device includes 4 uplink ports: 2×10GE SFP+ ports and 2×GE Combo ports (RJ45/SFP), allowing flexible high-speed connections to aggregation or core switches.

Q4: Can I manage the V1600D16 remotely?
A: Yes, it supports multiple remote management options including Web GUI, CLI, Telnet, SNMP, and EMS (Element Management System) for convenient network administration.

Q5: Is this OLT suitable for outdoor installations?
A: No, the V1600D16 is designed for indoor rack-mount environments. It should be installed in a climate-controlled equipment room to ensure reliable operation.

Q6: Does the V1600D16 support VLAN configuration?
A: Yes, it supports advanced Layer 2 features including 4K VLANs, QinQ, port-based VLAN, and VLAN isolation to allow efficient traffic management and network segmentation.

Q7: What power source is required?
A: It operates on a standard AC power supply of 100–240V, 50/60Hz.

Q8: Can it be used in multi-service networks?
A: Yes, it supports high-speed data, voice, and video services simultaneously, making it ideal for triple-play service providers and integrated enterprise networks.
