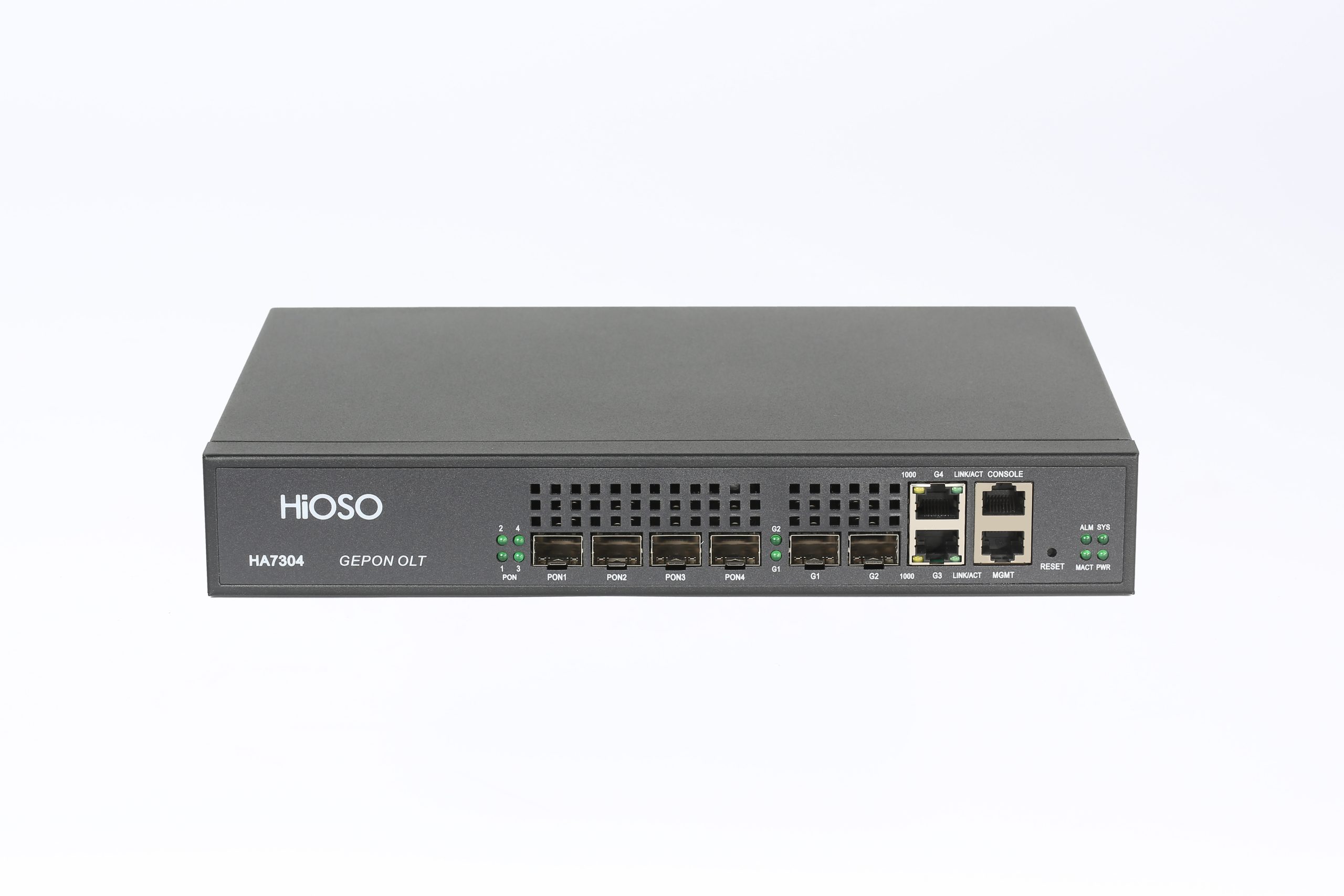

Hioso HA7304 Standalone 4PON EPON OLT

Hioso HA7304 Standalone 4PON EPON OLT is a compact and cost-effective solution for deploying high-speed fiber access networks in residential, commercial, and campus environments. This unit is designed for small to medium-scale Fiber to the Home (FTTH) and Fiber to the Building (FTTB) applications, supporting up to 256 ONUs with a 1:64 split ratio per PON port. Featuring four EPON ports, flexible uplink interfaces, advanced Layer 2 switching capabilities, and multiple management options, the HA7304 ensures reliable, scalable, and secure broadband service delivery.

Product Features

Scalable EPON Access

Supports 4 EPON ports with a maximum capacity of 256 ONUs, allowing for high-density deployments in growing access networks.

Compact and Standalone Design

The HA7304 is built for standalone deployment without requiring a rack, making it ideal for environments where space or rack infrastructure is limited.

Flexible Uplink Connectivity

Includes 4 uplink ports (2 Gigabit RJ45 + 2 Gigabit SFP combo), providing redundancy and high-speed backbone integration.

Layer 2 Switching and VLAN Support

Offers advanced Layer 2 features including 802.1Q VLAN, QinQ, MAC address filtering, port aggregation, and storm control for traffic optimization.

User-Friendly Management

Supports Web GUI, CLI, SNMP, and Telnet, offering simplified local or remote configuration and monitoring of network operations.

Network Security Features

Protects network integrity with support for port isolation, access control lists (ACLs), and MAC address binding.

Product Specifications

• 4 EPON ports (SFP-based, IEEE 802.3ah compliant)
• 4 uplink ports (2 GE RJ45 + 2 GE SFP combo)
• Supports up to 256 ONUs
• 1:64 optical splitting ratio per PON port
• Optical transmission distance: up to 20 km
• Switching capacity: 8 Gbps
• Forwarding rate: 5.952 Mpps
• VLAN support: IEEE 802.1Q, port-based VLAN, QinQ
• QoS: Supports 802.1p, DSCP, WRR, SP scheduling
• Management interfaces: Web GUI, CLI, Telnet, SNMP
• Power input: AC 100–240V, 50/60Hz
• Operating temperature: 0°C to 50°C
• Storage temperature: -40°C to 85°C
• Installation: Desktop or wall-mounted standalone unit
• Dimensions: Approximately 310mm × 200mm × 45mm

Application

Hioso HA7304 Standalone 4PON EPON OLT is engineered for flexible deployment in environments that require reliable fiber optic broadband without the need for full rack installations. Its compact, standalone design, combined with high port density and advanced features, makes it suitable for a variety of network applications, including:

• Fiber to the Home (FTTH): Enables delivery of high-speed internet, IPTV, and VoIP services directly to individual residential subscribers via EPON infrastructure.
• Fiber to the Building (FTTB): Ideal for providing centralized fiber connectivity in apartment complexes, office buildings, and gated communities.
• Enterprise Networks: Supports campus and branch office interconnectivity with scalable fiber access, secure traffic handling, and centralized management.
• Small to Medium ISPs: Perfect for regional internet service providers looking to expand their fiber coverage with a compact, cost-efficient OLT system.
• Educational Institutions: Powers campus-wide broadband connectivity for schools and universities with centralized, reliable, and secure network control.
• Hotels and Commercial Complexes: Offers consistent, high-speed fiber broadband access to guests and tenants in hospitality and retail environments.
• Industrial Parks and Government Facilities: Ensures stable fiber connectivity for mission-critical operations, surveillance systems, and municipal services.

FAQs

Q1: How many ONUs can the Hioso HA7304 Standalone OLT support?
A1: HA7304 supports up to 256 ONUs with a 1:64 optical split ratio on each of its 4 EPON ports.

Q2: Is the device suitable for use without a rack?
A2: Yes, the HA7304 is a standalone unit designed for desktop or wall-mounted installations, making it ideal for environments without rack infrastructure.

Q3: What type of uplink interfaces does the HA7304 provide?
A3: It includes 4 uplink ports—2 Gigabit RJ45 and 2 Gigabit SFP combo ports—for flexible and redundant backbone connectivity.

Q4: What is the maximum transmission distance supported?
A4: OLT supports up to 20 kilometers of optical transmission using standard single-mode fiber.

Q5: Does the HA7304 support remote management?
A5: Yes, it supports SNMP, Web GUI, CLI, and Telnet for convenient remote configuration, monitoring, and management.

Q6: Is the HA7304 compatible with third-party EPON ONUs?
A6: Yes, it complies with IEEE 802.3ah standards and is interoperable with most EPON ONUs from other vendors.

Q7: What Layer 2 functions are available?
A7: It includes VLAN tagging (802.1Q), QinQ, MAC address filtering, port aggregation, storm suppression, and QoS traffic control.

Q8: What are the power input requirements?
A8: The device uses a standard AC power input of 100–240V at 50/60Hz.

Q9: Can this OLT be used in outdoor environments?
A9: No, the HA7304 is intended for indoor use only and should be installed in a controlled environment free of dust, moisture, and extreme temperatures.

Q10: Does the device support QoS for prioritizing network traffic?
A10: Yes, it supports 802.1p, DSCP, and scheduling algorithms like WRR and SP to ensure efficient traffic prioritization.
