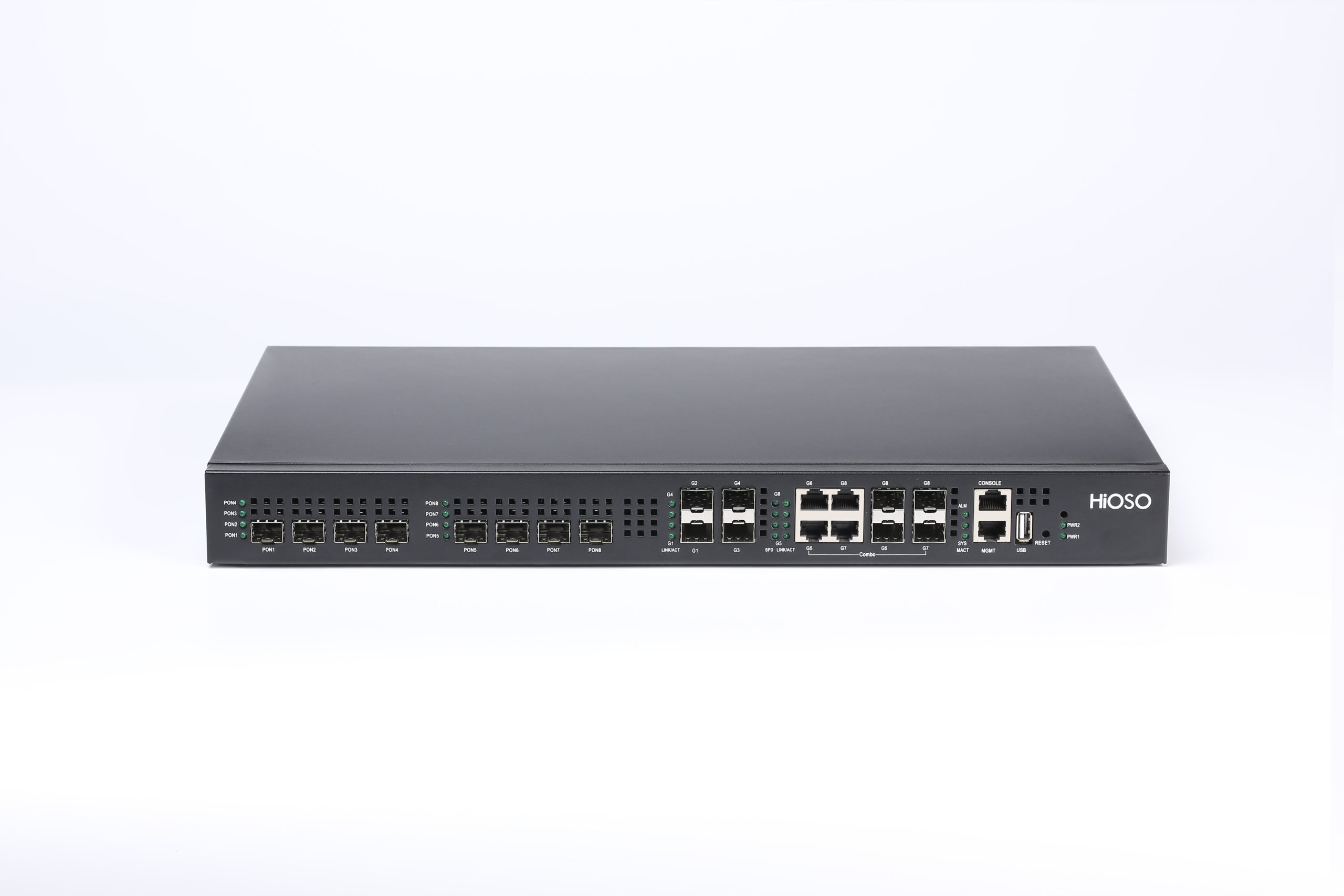

Hioso EPON HA7308C Rack Type 8 PON EPON OLT

Hioso EPON HA7308C is a high-density rack-mounted 8 PON EPON OLT designed for next-generation fiber access networks. Engineered to deliver high-speed broadband services over passive optical networks, this OLT supports up to 512 end users through its 8 EPON ports, with a 1:64 optical splitting ratio per port. It is ideal for Fiber to the Home (FTTH), Fiber to the Building (FTTB), and Fiber to the Business (FTTBz) applications. HA7308C offers robust Layer 2 switching, advanced management features, and flexible uplink options, making it suitable for ISPs, data centers, and campus networks looking for scalable and reliable EPON infrastructure.

Product Features

High-Capacity EPON Access

Equipped with 8 EPON ports, the HA7308C supports up to 512 ONUs, enabling wide-scale fiber deployments in residential or commercial environments.

Versatile Uplink Options

Provides 4 gigabit combo uplink ports (2 GE RJ45 + 2 GE SFP), offering flexibility for uplink connections to aggregation or core switches.

Layer 2 Switching Capabilities

Features full Layer 2 functions including VLAN, port trunking, QoS, MAC address control, and broadcast storm suppression for efficient traffic management.

Intelligent and Remote Management

Supports CLI, SNMP, Web GUI, and Telnet for local and remote configuration, monitoring, and firmware upgrades.

Rack-Mountable 1U Design

Its compact 1U form factor fits standard 19-inch racks, allowing easy integration into existing network environments.

Enhanced Network Security

Includes port isolation, MAC address filtering, and access control mechanisms to protect against unauthorized access and network threats.

Product Specifications

• 8 EPON ports (SFP-based)
• 4 uplink ports (2 GE RJ45 + 2 GE SFP combo)
• Supports up to 512 ONUs
• 1:64 optical splitting ratio per PON port
• Optical transmission distance: up to 20 km
• Switching capacity: 8 Gbps
• Forwarding rate: 5.952 Mpps
• VLAN support: IEEE 802.1Q, port-based VLAN, QinQ
• QoS support: 802.1p, DSCP, WRR, SP scheduling
• Management interfaces: CLI, SNMP, Telnet, Web GUI
• Power input: AC 100–240V, 50/60Hz
• Operating temperature: 0°C to 50°C
• Storage temperature: -40°C to 85°C
• Dimensions: 440mm × 200mm × 44mm (1U standard rack size)

Application

Hioso EPON HA7308C Rack Type 8 PON EPON OLT is built to meet the demands of high-speed fiber access in a variety of network environments. Its high port density, scalability, and advanced management features make it a practical solution for broadband service providers, enterprise networks, and multi-tenant buildings. It is especially suited for:

• Fiber to the Home (FTTH): Delivers high-speed internet, IPTV, and VoIP services directly to residential users via optical fiber, supporting up to 512 subscribers.
• Fiber to the Building (FTTB): Enables fiber connectivity for apartment complexes, office buildings, and commercial centers with centralized OLT control.
• Campus and Educational Networks: Ensures reliable, high-capacity data delivery for universities, schools, and training centers requiring scalable and secure fiber infrastructure.
• Enterprise Backbone Networks: Connects multiple office branches or departments with a stable and secure optical backbone, enhancing internal communications and cloud access.
• Internet Service Providers (ISPs): Offers an affordable and efficient way to expand fiber access coverage in both urban and rural deployments.
• Industrial and Smart City Deployments: Provides a robust optical backbone for surveillance systems, IoT networks, smart metering, and public Wi-Fi infrastructure.

FAQs

Q1: How many ONUs can the Hioso HA7308C support?
A1: The HA7308C supports up to 512 ONUs with a maximum 1:64 optical splitting ratio per EPON port across its 8 PON ports.

Q2: Is the HA7308C compatible with third-party EPON ONUs?
A2: Yes, it is compliant with the IEEE 802.3ah EPON standard, ensuring interoperability with most standard-compliant EPON ONUs from other manufacturers.

Q3: What is the maximum optical transmission distance?
A3: The maximum transmission distance is up to 20 kilometers using standard single-mode fiber.

Q4: Does this OLT support remote management?
A4: Yes, the HA7308C supports remote management via Web GUI, Telnet, CLI, and SNMP, allowing flexible and efficient network administration.

Q5: Can the device be installed in a standard network rack?
A5: Yes, the HA7308C features a 1U standard 19-inch rack-mountable design, suitable for data centers and telecom rooms.

Q6: What uplink options are available on the HA7308C?
A6: The device includes 4 uplink ports: 2 Gigabit Ethernet (RJ45) and 2 Gigabit SFP combo ports for flexible network connectivity.

Q7: What security features are integrated into the device?
A7: It includes port isolation, MAC address filtering, broadcast storm suppression, and access control mechanisms to ensure network integrity.

Q8: Does the OLT support VLAN and QoS configurations?
A8: Yes, the HA7308C supports IEEE 802.1Q VLAN tagging, port-based VLAN, QinQ, and Quality of Service (QoS) features such as 802.1p, DSCP, and multiple scheduling algorithms including WRR and SP.

Q9: What is the power input requirement for the HA7308C?
A9: It supports AC power input ranging from 100–240V at 50/60Hz, suitable for standard power environments.
