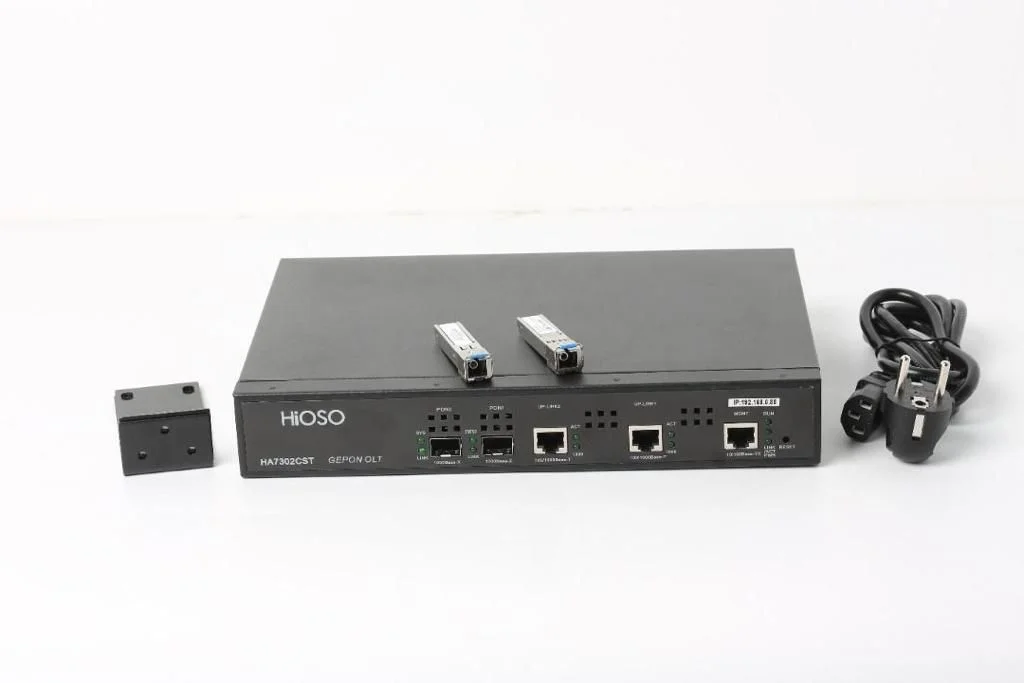

Hioso HA7302CS 2PON EPON OLT

Hioso HA7302CS 2PON EPON OLT is a compact and high-performance optical line terminal designed for Fiber to the Home (FTTH) and Fiber to the Building (FTTB) solutions. This device supports up to 2 PON ports and is ideal for small to medium-sized ISP networks or campus deployments. Featuring advanced Layer 2 switching capabilities, high reliability, and efficient bandwidth allocation, the HA7302CS ensures seamless and stable data transmission across GPON or EPON networks. It is designed to meet the growing demands for fast broadband access and supports up to 128 ONU devices.

Product Features

High Port Density and Scalability

The HA7302CS is equipped with 2 EPON ports, enabling support for up to 128 ONUs with a 1:64 split ratio per port, making it scalable for growing network requirements.

Efficient Bandwidth Allocation

Supports dynamic bandwidth allocation (DBA) and static bandwidth allocation, ensuring stable and optimized data flow for all users connected to the network.

Advanced Layer 2 Switching

Comes with robust Layer 2 features including VLAN, QoS, port aggregation, and MAC address filtering, offering greater control and efficiency in traffic management.

Compact and Rack-Mountable Design

Its 1U compact chassis is suitable for installation in standard network racks, saving space while maintaining high performance.

Intelligent Management Support

Provides SNMP, Telnet, CLI, and Web GUI management interfaces for simplified and remote configuration, monitoring, and troubleshooting.

Strong Network Security

Features comprehensive security mechanisms including port isolation, MAC filtering, and broadcast storm suppression to protect network integrity.

Product Specifications

• 2 EPON ports (SFP-based)
• 2 uplink GE combo ports (2x GE copper + 2x GE SFP)
• Supports up to 128 ONUs
• 1:64 optical splitting ratio per port
• Transmission distance: up to 20 km (standard EPON)
• Switching capacity: 4 Gbps
• Forwarding rate: 2.976 Mpps
• VLAN support: IEEE 802.1Q, port-based VLAN
• QoS support: 802.1p, DSCP, WRR/SP/DRR scheduling
• Operating temperature: 0°C to 50°C
• Power supply: AC 100–240V, 50/60Hz
• Dimensions: 440mm × 200mm × 44mm (1U)

Application

Hioso HA7302CS 2PON EPON OLT is purpose-built for modern optical access networks, making it suitable for a wide range of deployment scenarios. It is an excellent choice for internet service providers, enterprises, and system integrators seeking to deliver high-speed fiber broadband services. Its compact form factor, high user capacity, and advanced management features make it ideal for:

• Fiber to the Home (FTTH): Provides high-speed internet, IPTV, and VoIP services to residential users over fiber.
• Fiber to the Building (FTTB): Enables high-capacity connectivity for multi-tenant buildings such as apartments, office complexes, or campuses.
• Small to Medium ISPs: Supports cost-effective expansion of fiber broadband networks in rural, urban, or suburban environments.
• Enterprise Campus Networks: Ensures secure, scalable, and manageable fiber connectivity across multiple office locations.
• Smart City Infrastructure: Powers fiber backbone networks for intelligent transport, surveillance, and utility systems.
• Educational Institutions: Delivers reliable broadband connectivity across school or university campuses with centralized control.

FAQs

Q1: How many ONUs can the Hioso HA7302CS support?
A1: HA7302CS supports up to 128 ONUs, with a 1:64 optical splitting ratio per EPON port.

Q2: Is the HA7302CS compatible with third-party EPON ONUs?
A2: Yes, it complies with IEEE 802.3ah standards and supports interoperability with most standard-compliant EPON ONUs.

Q3: What is the maximum transmission distance supported by this OLT?
A3: HA7302CS supports a transmission distance of up to 20 km over single-mode fiber.

Q4: Does the device support remote management?
A4: Yes, it supports multiple management methods including SNMP, Web GUI, CLI (via Telnet or console), and TR-069 for remote configuration and monitoring.

Q5: Can the OLT be mounted on a rack?
A5: Yes, the HA7302CS comes in a 1U rack-mountable metal chassis, making it suitable for standard network cabinets.

Q6: What kind of power input does it require?
A6: OLT uses an AC power supply with a voltage range of 100–240V at 50/60Hz.

Q7: Does the OLT support VLAN and QoS configurations?
A7: Yes, it supports IEEE 802.1Q VLAN tagging, port-based VLAN, as well as QoS features including 802.1p priority, DSCP, and scheduling algorithms like WRR and SP.

Q8: What security features are available?
A8: Security features include MAC address filtering, port isolation, access control lists (ACLs), and broadcast storm suppression.
