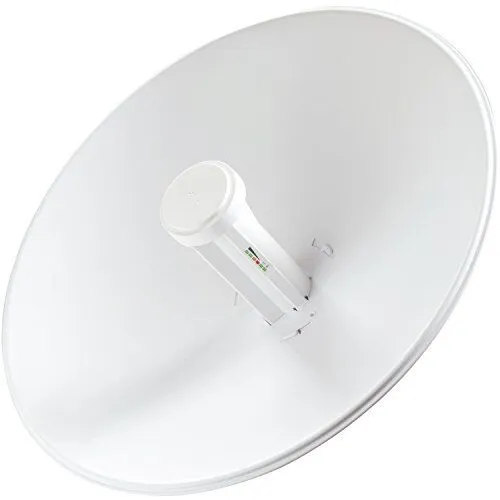

Ubiquiti airMAX PowerBeam M5 (PBE-M5-400)
KSh 16,000.00 (+ VAT(16%)
Ubiquiti airMAX PowerBeam M5 400 (PBE‑M5‑400) is a high-gain (25 dBi), 400 mm dish wireless bridge operating in the 5 GHz band, engineered for long-range, high-performance PtP and PtMP links with 150+ Mbps real throughput over 25 km. Its integrated InnerFeed design minimizes cable loss, while robust airMAX TDMA technology, powered by a 560 MHz Atheros CPU and 64 MB RAM, reduces latency and improves noise immunity.
Built tough for outdoor conditions—UV-resistant housing, pole-mount kit, extreme weather tolerance (–40 to 70 °C, wind survivability up to 200 km/h), and ±24 kV ESD protection—it runs on 8 W via included 24 V passive PoE. The device includes a Gigabit Ethernet port, adjustable signal-strength LEDs, and is managed via airOS with advanced tools like airView spectrum analysis.
Ubiquiti airMAX PowerBeam M5 PBE-M5-400
Ubiquiti PowerBeam M5 400 (PBE-M5-400) is a high-performance wireless bridge designed for point-to-point and point-to-multipoint connections. Below are its detailed specifications:
General Specifications:
- Frequency Band: 5 GHz
- Antenna Gain: 25 dBi
- Dish Reflector Diameter: 400 mm
- Maximum Throughput: 150+ Mbps
- Maximum Range: 25+ km
- Processor: Atheros MIPS 74Kc, 560 MHz
- Memory: 64 MB DDR2, 8 MB Flash
- Network Interface: 10/100/1000 Ethernet Port
- Power Consumption: 8W
- Power Supply: 24V, 0.5A Gigabit PoE Adapter (included)
Physical and Environmental Specifications:
- Dimensions: 420 x 420 x 275 mm
- Weight: 1.753 kg
- Operating Temperature: -40 to 70° C (-40 to 158° F)
- Operating Humidity: 5 to 95% non-condensing
- Wind Survivability: 200 km/h (125 mph)
- ESD/EMP Protection: Air/contact: ±24 kV
Compliance and Certifications:
- Certifications: CE, FCC, IC
- RoHS Compliance: Yes
Additional Features:
LED Indicators: Power, LAN, and 4 WLAN Signal Strength LEDs (software-adjustable to correspond to custom RSSI levels)
- Channel Sizes: 5/8/10/20/30/40 MHz
- Polarization: Dual linear
- Operating Frequency (MHz):
- Worldwide: 5170 – 5875 MHz
- US/CA: 5725 – 5850 MHz
For enhanced performance in noisy environments, Ubiquiti offers an optional RF Isolated Reflector version, the PBE-M5-400-ISO, which includes a 400 mm RF isolated reflector to improve noise immunity.
