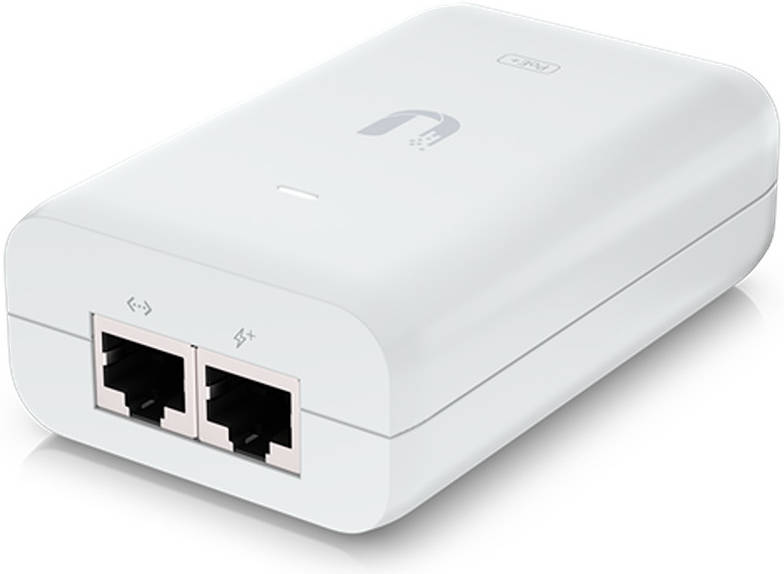

Ubiquiti Networks U-POE-AT PoE+ Adapter 48V DC @ 0.65A

Ubiquiti Networks U-POE-AT is a high-efficiency PoE+ adapter designed to deliver up to 30W of power to compatible 802.3at devices. It provides safe, stable, and reliable power for networking equipment such as access points, IP phones, and surveillance devices.

Electrical Specifications

• Output Voltage: 48V DC at 0.65A
• Power Output: Up to 30W
• Input Voltage: 100–240V AC at 50/60Hz
• Input Current: 0.75A maximum
• Efficiency: 87%
• Output Ripple: 1% maximum
• Switching Frequency: 70 kHz maximum
• Line Regulation: ≤ 3%
• Load Regulation: ≤ 5%

Physical Specifications

• Dimensions: 93 x 62 x 35 mm (3.66 x 2.44 x 1.38 inches)
• Weight: 156 g (5.5 oz)
• AC Connector: IEC-320 C6

Data Ports:

• Data In: RJ45 shielded socket
• PoE Out: RJ45 shielded socket

Features:

• Gigabit LAN Port: Yes
• LAN Activity Indicator: No
• Remote Reset Capability: No
• Reset Button: No
• 2-Pair Powering: Pins 4, 5 (+) and 7, 8 (–)
• 4-Pair Powering: No

Protection:

• Surge Protection: Difference and common mode
• Clamping Protection: 11V (data), 60V (power)
• Maximum Surge Discharge: 1500A (8/20 µs) power
• Peak Pulse Current: 36A (10/1000 µs) data
• Shunt Capacitance: <5 pF data
• Response Time: <1 ns
