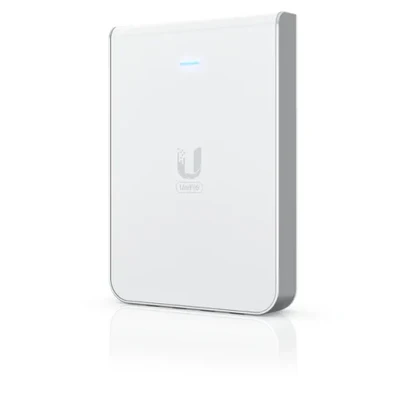

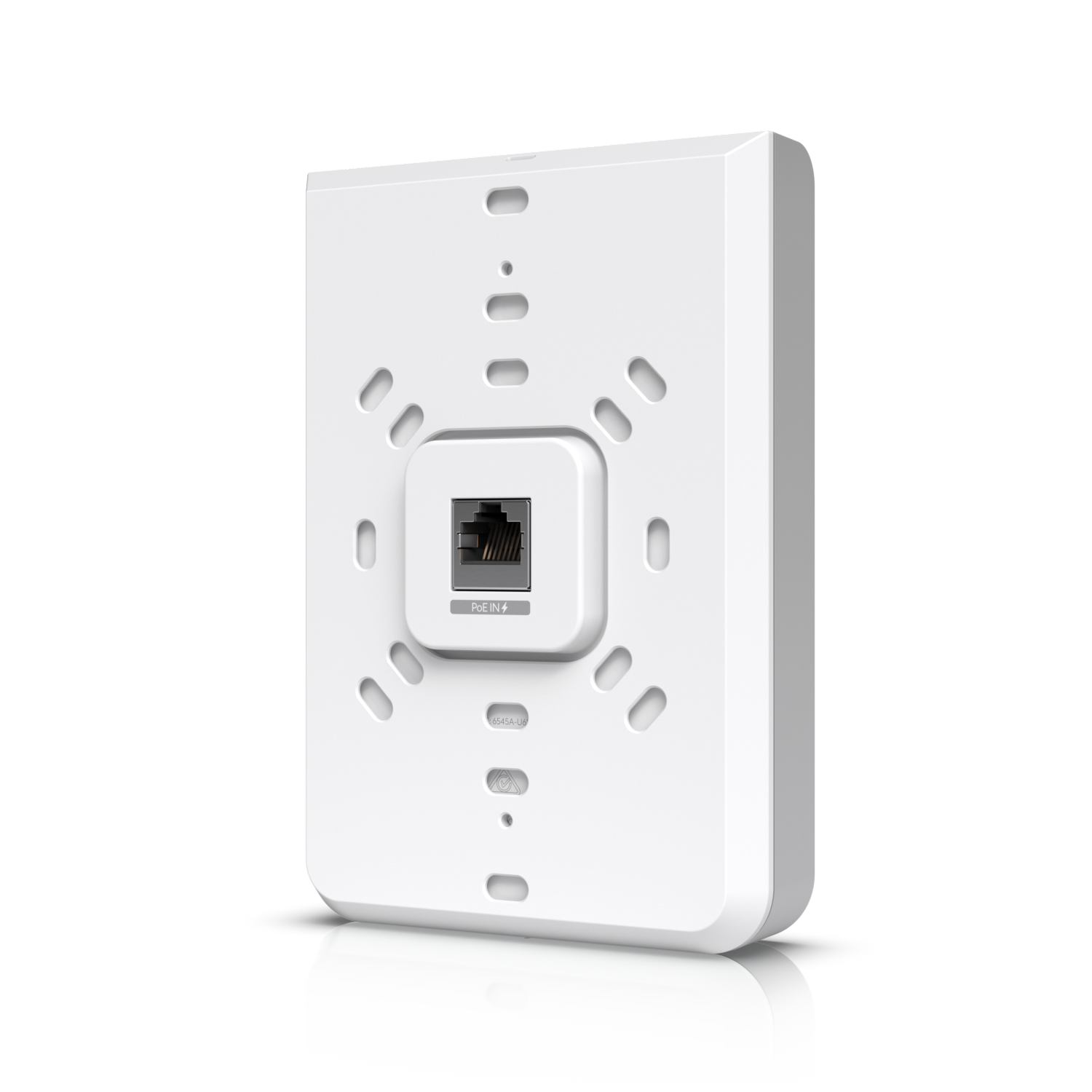

Ubiquiti UniFi 6 In-Wall Access Point (U6-IW)
Ubiquiti UniFi 6 In-Wall Access Point (U6-IW) is a compact, high-performance device that transforms any Ethernet wall jack into a powerful WiFi 6 access point. Designed for seamless deployment in modern networks, it offers gigabit Ethernet connectivity, PoE+ support, and dual-band wireless coverage with advanced MU-MIMO technology. Ideal for enterprise environments, hotels, and high-density locations, the U6-IW access point delivers speed, efficiency, and scalability.
Product Features
High-Speed Wireless Performance
Supports the latest WiFi 6 (802.11ax) standard for enhanced speed, capacity, and coverage, delivering up to 4.8 Gbps on the 5 GHz band and 573.5 Mbps on 2.4 GHz.
Integrated Ethernet Ports
Includes four Gigabit Ethernet data-out ports for wired devices, plus one PoE-in port, making it perfect for setups requiring both wireless and wired connections.
Power over Ethernet (PoE+)
Easily powered via PoE+, eliminating the need for external power supplies. One port also supports PoE output when connected to a PoE+ switch.
Dual MU-MIMO Technology
Delivers efficient multi-user connectivity with 2×2 MU-MIMO on 2.4 GHz and 4×4 MU-MIMO on 5 GHz, supporting 300+ concurrent clients.
Secure and Scalable
Offers advanced wireless security (WPA3, VLAN support, guest traffic isolation) and integrates seamlessly with the UniFi Network Controller for centralized management.
Product Specifications
- Dimensions: 139.7 x 96 x 31.2 mm
- Weight: 460 g
- Enclosure Material: Plastic, aluminum
- Mount Material: Aluminum
- Networking Interfaces:
- (1) GbE RJ45 Data-In port
- (4) GbE RJ45 Data-Out ports
- Management Interfaces: Ethernet, Bluetooth
- Power Method: PoE / PoE+
- Max Power Consumption: 13W (excluding PoE output)
- Voltage Range (PoE): 44–57V DC
- Max PoE Wattage Per Port: 15.4W (requires PoE+ switch)
- WiFi Standards: 802.11a/b/g/n/ac/ax (WiFi 6)
- Max Transmit Power:
- 2.4 GHz: 22 dBm
- 5 GHz: 26 dBm
- MIMO:
- 2.4 GHz: 2×2 DL/UL MU-MIMO
- 5 GHz: 4×4 DL/UL MU-MIMO
- Max Data Rates:
- 2.4 GHz: 573.5 Mbps
- 5 GHz: 4.8 Gbps
- Antenna Gain:
- 2.4 GHz: 5 dBi
- 5 GHz: 5.9 dBi
- Operating Temperature: -30 to 60°C
- Humidity: 5–95% non-condensing
- Certifications: CE, FCC, IC
- Wireless Security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
- Other Features:
- VLAN support (802.1Q)
- Advanced QoS
- Guest traffic isolation
- Zero-Wait DFS
- BSSID: Up to 8 per radio
- Controller Compatibility: Requires UniFi Network Version 6.4.52 or later
