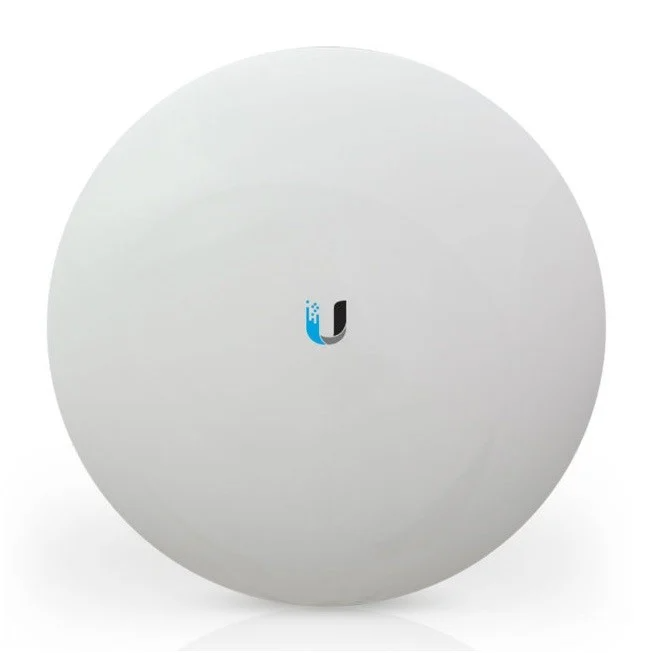

Ubiquiti airMAX NanoBeam AC NBE-5AC-GEN2

Ubiquiti airMAX NanoBeam AC NBE-5AC-GEN2 is a compact and powerful 5GHz wireless bridge designed for long-range point-to-point and point-to-multipoint connectivity. Built with advanced airMAX AC technology, this device delivers high throughput, low latency, and reliable performance for wireless ISP deployments, enterprise networking, and outdoor broadband extension. Its integrated design combines the radio and antenna into a single unit, reducing signal loss while improving efficiency. With enhanced noise immunity and improved beamforming, it ensures stable connections even in congested RF environments.

Product Features

Advanced airMAX AC Technology

Equipped with airMAX AC protocol, the NanoBeam AC GEN2 provides superior throughput and reduced latency compared to legacy airMAX devices, making it ideal for high-capacity wireless links.

Integrated High Gain Antenna

Features a 19 dBi directional antenna that enhances signal strength and enables long-distance connectivity while minimizing interference.

Dedicated Management Radio

Includes a separate Wi-Fi radio for easy setup and management via the Ubiquiti mobile app, improving installation efficiency without interrupting the main link.

Improved Noise Immunity

Designed with advanced RF filtering and shielding to maintain stable performance in environments with high wireless interference.

Quick and Easy Installation

The compact, all-in-one design simplifies mounting and alignment, reducing deployment time for both professionals and installers.

airOS User Interface

Runs on an intuitive airOS interface that offers powerful monitoring tools, configuration flexibility, and real-time performance analytics.

Robust Outdoor Design

Engineered with durable materials to withstand harsh outdoor conditions, ensuring long-term reliability in various climates.

Product Specifications

• Model: NBE-5AC-GEN2
• Frequency Band: 5 GHz
• Throughput: Up to 450+ Mbps
• Antenna Gain: 19 dBi
• Processor: Atheros MIPS 74KC
• Memory: 128 MB DDR2 RAM, 8 MB Flash
• Networking Interface: 1 x 10/100/1000 Ethernet Port
• Power Supply: 24V Passive PoE
• Max Power Consumption: 8.5W
• Mounting: Pole Mount Kit Included
• Operating Temperature: -40°C to 70°C
• Operating Humidity: 5% to 95% non-condensing
• Management: airOS Web Interface, Ubiquiti Mobile App
• Use Case: Point-to-Point and Point-to-Multipoint Wireless Links
• Certification: FCC, CE, IC
