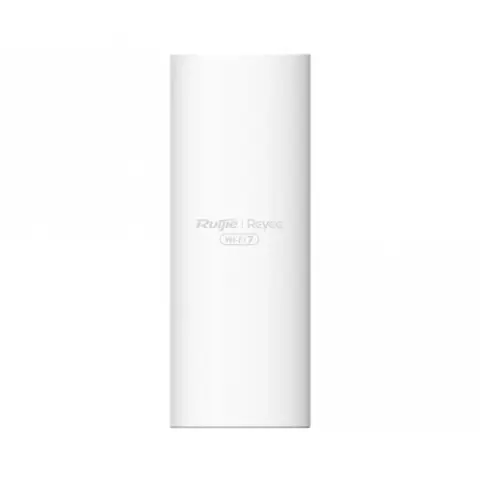

Ruijie RG-RAP72Pro-OD, BE5040 Wi-Fi 7 Outdoor Access Point

Ruijie RG-RAP72Pro-OD BE5040 Wi-Fi 7 Outdoor Access Point is a next-generation, enterprise-grade wireless solution designed for high-density outdoor and hybrid indoor environments. Built on the latest Wi-Fi 7 (802.11be) standard, it delivers ultra-high throughput, reduced latency, and enhanced reliability using advanced technologies such as Multi-Link Operation (MLO) and preamble puncturing. With its rugged IP65-rated design, 2.5G uplink, and AI-powered mesh networking, it provides seamless, high-speed connectivity for demanding deployments such as campuses, hotels, retail spaces, and large residential compounds.

Product Features

Next-Generation Wi-Fi 7 Performance

Powered by Wi-Fi 7 technology with BE5040-class speeds, delivering significantly higher throughput, lower latency, and improved efficiency compared to previous Wi-Fi standards.

Multi-Link Operation (MLO) for Ultra-Low Latency

Uses MLO to transmit data across multiple frequency bands simultaneously, reducing latency and improving connection stability in high-interference environments.

High-Speed 2.5G Ethernet Uplink

Equipped with a 2.5 Gigabit Ethernet port for high-speed backhaul, ensuring optimal performance in multi-gig network environments.

Advanced Preamble Puncturing Technology

Improves spectrum efficiency by bypassing interference-affected channels, increasing channel utilization and overall network performance.

Durable IP65 Weatherproof Design

Built for outdoor deployment with IP65-rated protection against dust, rain, and harsh weather, ensuring stable operation year-round.

AI-Powered Mesh and Seamless Roaming

Supports Reyee Mesh and AI roaming, enabling multiple access points to work together seamlessly for extended coverage without manual configuration.

Flexible Indoor and Outdoor Deployment

Designed for both indoor and outdoor use, with wall or pole mounting options for versatile installation in various environments.

Enterprise Security and Network Control

Supports advanced security features including WPA3 encryption, VLAN segmentation, and centralized cloud or controller-based management.

Cloud Management and Smart Monitoring

Allows remote configuration, monitoring, and troubleshooting via Ruijie Cloud, simplifying network management across multiple sites.

Product Specifications

• Model: RG-RAP72Pro-OD
• Wi-Fi Standard: Wi-Fi 7 (802.11be)
• Speed Class: BE5040
• Frequency Bands: Dual-band (2.4GHz and 5GHz)
• Max Throughput: Up to ~5Gbps combined (class rating)
• Key Technologies: MLO, OFDMA, MU-MIMO, Beamforming, Preamble Puncturing
• Ethernet Port: 1 × 2.5G Ethernet uplink
• Power Supply: PoE / PoE+ (802.3at)
• Antennas: Built-in high-gain antennas
• Mesh Support: Reyee Mesh with AI roaming
• Security: WPA3, VLAN, guest network support
• Management: Cloud, app, or controller-based management
• Weatherproof Rating: IP65
• Mounting Options: Wall or pole mount
• Operating Environment: Indoor and outdoor deployment
• Application: Outdoor Wi-Fi coverage, campuses, retail, hospitality, residential compounds, enterprise networks
