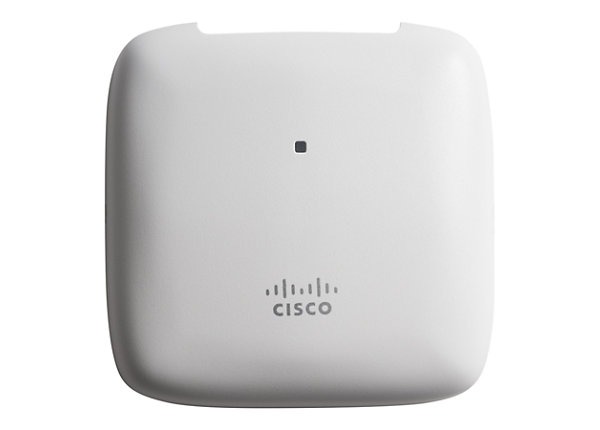

Cisco Business 240AC Wi-Fi Access Point 802.11ac 4×4 2 GbE Ports Ceiling Mount CBW240AC-E
Cisco Business 240AC (CBW240AC-E) is a high-performance ceiling-mount Wi-Fi 5 (802.11ac Wave 2) access point designed to deliver enterprise-class wireless coverage and density in small to medium-sized business environments. With 4×4 MU-MIMO, dual-gigabit Ethernet ports, and support for both standard and high-power PoE, this unit is well-suited for modern office spaces, guest networks, IoT deployments, or high-device-density areas.
Product Features
802.11ac Wave 2 with 4×4 MU-MIMO
Offers four spatial streams and MU-MIMO capability, enabling simultaneous transmission to multiple client devices and helping maintain high throughput in busy wireless environments.
Dual Gigabit Ethernet Ports
Includes two 10/100/1000 Mbps RJ-45 ports for uplink connectivity—providing flexibility, link redundancy or flexibility for wired client/pass-through scenarios.
PoE-Powered for Flexible Installation
Supports PoE input (802.3af/at) for simplified ceiling-mount deployment—no dedicated power outlet needed at the mounting location.
High Client Capacity & Coverage
Certified to support up to 200 clients per radio (400 clients per AP) and optimized for high-density use cases such as conference rooms, training centres or retail environments.
Simplified Management & Mesh Support
Designed for easy setup and deployment via the Cisco Business mobile app, and supports mesh extension to cover areas without wired drops.
Product Specifications
- Wireless standard: IEEE 802.11ac Wave 2 (Wi-Fi 5)
- Spatial streams: 4×4 (four spatial streams)
- Approximate maximum data rate: up to 1733 Mbps on 5 GHz + ~600 Mbps on 2.4 GHz
- Antenna gain: 4 dBi (2.4 GHz), 5 dBi (5 GHz) (internal omnidirectional)
- Ethernet ports: 2 × RJ-45 10/100/1000BASE-T autosensing
- Power draw: ~13.2W typical from PoE
- Mounting: Ceiling or wall mount bracket included
- Operating temperature: 0 °C to 50 °C
- Management: Via mobile app or web UI, supports mesh extension and guest-access features
