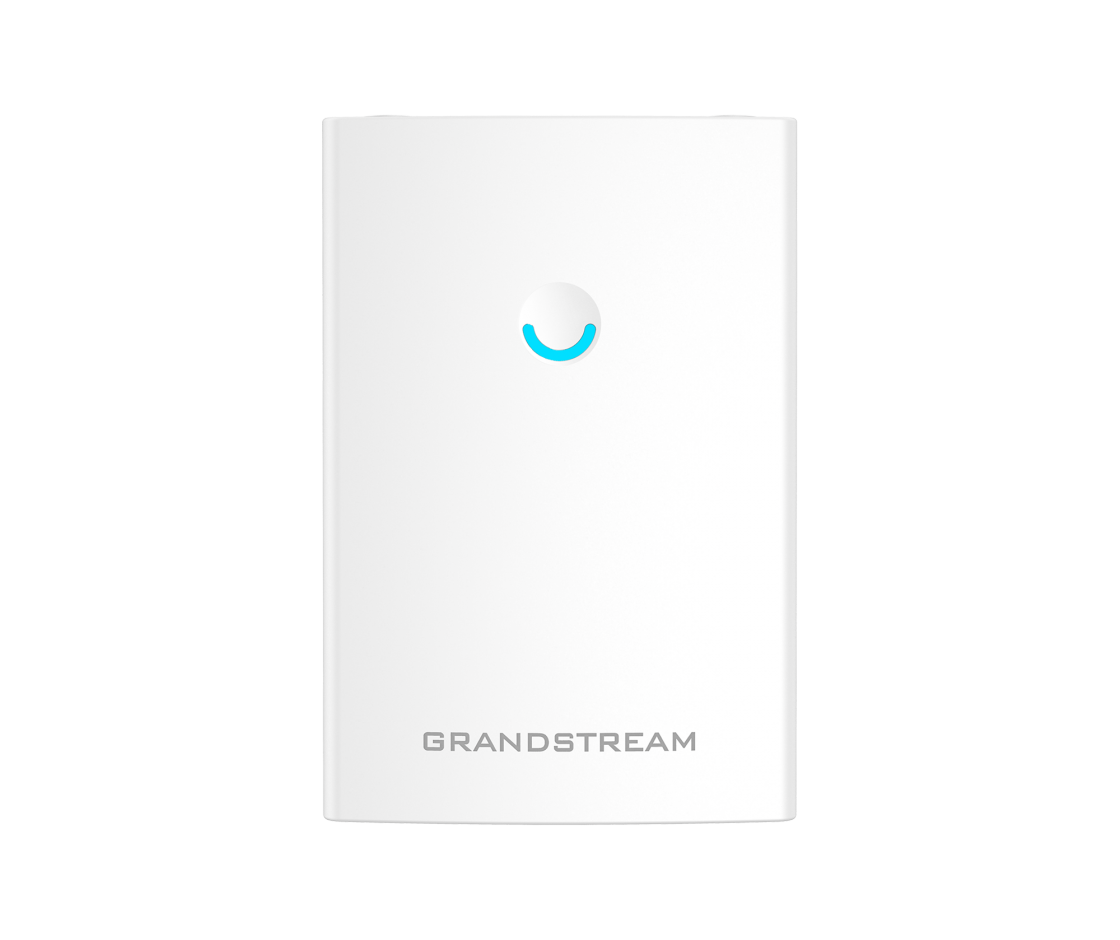

Grandstream GWN7630LR Access Point – Long-Range High-Density Outdoor WiFi Solution

Grandstream GWN7630LR Access Point is a powerful outdoor wireless solution engineered for long-range coverage and high-density environments. Built on dual-band 802.11ac Wave-2 technology, it delivers high-speed connectivity, improved network efficiency, and reliable performance for multiple concurrent users. Designed with a rugged, weatherproof enclosure and advanced antenna system, this access point is ideal for campuses, enterprise deployments, public WiFi, and large outdoor areas. With integrated controller capabilities and support for cloud management, the GWN7630LR offers scalable, secure, and easy-to-manage wireless networking.

Product Features

Extended Long-Range Coverage

Equipped with high-performance antennas to deliver strong and stable WiFi signals over large outdoor areas.

High-Speed 802.11ac Wave-2 Technology

Supports dual-band operation with faster data rates, increased capacity, and better handling of multiple connected devices.

High Client Capacity for Dense Environments

Designed to support a large number of simultaneous users without compromising performance, ideal for busy networks.

Rugged Outdoor Weatherproof Design

Features an IP67-rated enclosure that protects against rain, dust, and extreme weather conditions.

Integrated Controller for Easy Management

Includes an embedded controller capable of managing multiple GWN series access points, eliminating the need for additional hardware.

Flexible Power over Ethernet Support

Supports PoE and PoE+ for simplified deployment using a single cable for both power and network connectivity.

Advanced Security and Network Protection

Implements enterprise-grade security features including WPA/WPA2 encryption, secure boot, and unique device certificates.

Product Specifications

• Model: GWN7630LR
• WiFi Standard: IEEE 802.11a/b/g/n/ac (Wave-2)
• Frequency Bands: 2.4 GHz and 5 GHz
• Maximum Throughput: Up to 2.33 Gbps aggregate
• Antenna: High-gain internal antennas
• Range: Long-range outdoor coverage
• Ethernet Ports: 2 x Gigabit ports
• Power Options: PoE/PoE+ (802.3af/at)
• Enclosure Rating: IP67 weatherproof
• Security: WPA/WPA2, secure boot, anti-hacking protection
• Management: Embedded controller, cloud and local management
• Mounting: Pole or wall mount
• Application: Outdoor WiFi for enterprises, campuses, public hotspots, large compounds
