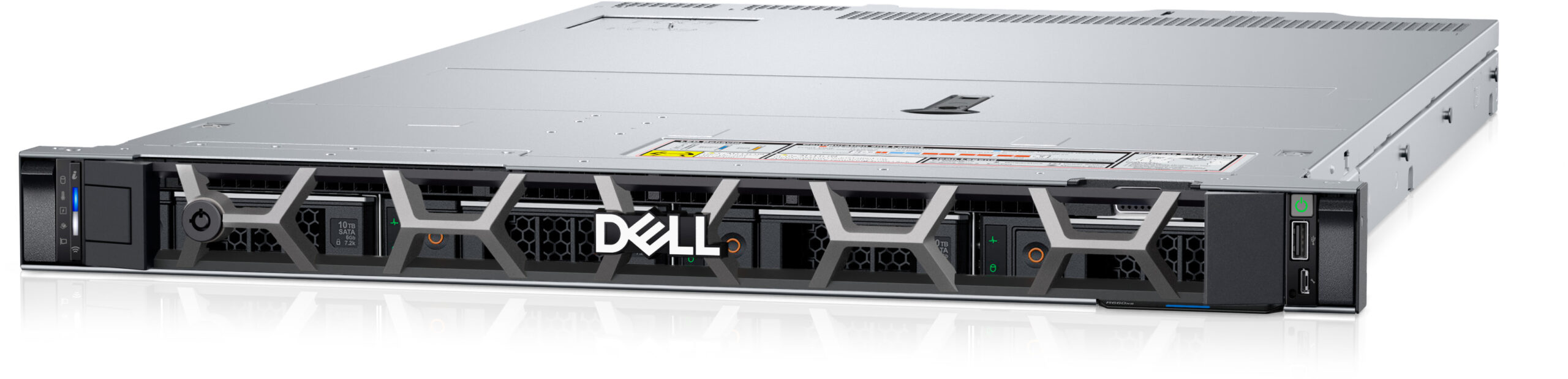

Dell PowerEdge R660xs Rack Server Intel Xeon Silver 4510 Dual CPU 64GB RAM 480GB SSD
Dell PowerEdge R660xs Rack Server is a high-density, enterprise-grade 1U server designed for modern data centers, virtualization workloads, and performance-intensive business applications. Built on the latest Intel Xeon Scalable Silver 4510 dual-processor architecture, this server delivers strong multi-core processing power, improved memory bandwidth, and scalable storage options. With enterprise RAID protection, high-speed DDR5 memory, and Dell’s advanced iDRAC9 management system, the R660xs is optimized for reliability, efficiency, and high availability in demanding IT environments.
Product Features
Dual Intel Xeon Silver 4510 Processors for Scalable Performance
The Dell PowerEdge R660xs is powered by two Intel Xeon Silver 4510 processors, each featuring 12 cores and 24 threads, delivering a total of 24 cores and 48 threads of compute power. With a base frequency of 2.4GHz, 30MB cache, and Intel Hyper-Threading technology, this configuration ensures efficient handling of virtualization, cloud workloads, and enterprise applications with consistent performance.
High-Speed DDR5 RDIMM Memory Architecture
Equipped with 64GB DDR5 RDIMM memory operating at 5600MT/s, the server provides high bandwidth and low latency for demanding workloads. The dual-rank ECC memory enhances data integrity and system stability, making it suitable for mission-critical environments where uptime and accuracy are essential.
Flexible High-Density Storage Configuration
The 2.5-inch chassis supports up to 10 SAS or SATA drives, enabling scalable and flexible storage expansion. This configuration allows businesses to balance performance and capacity for applications such as virtualization, database hosting, and file storage systems.
Enterprise SSD Boot and Performance Optimization
The system includes a 480GB SATA SSD hot-plug drive designed for mixed-use workloads. This ensures fast boot times, improved application responsiveness, and reliable performance for operating system and application hosting.
Advanced RAID Protection with PERC H755 Controller
The integrated Dell PERC H755 SAS front RAID controller supports RAID levels 0, 1, and 5, delivering data protection, redundancy, and optimized storage performance. This enhances system reliability and safeguards critical business data against drive failures.
High-Performance Networking with Dual 1GbE LOM
The Broadcom 5720 Dual Port 1Gb Ethernet controller provides stable and reliable network connectivity for enterprise environments. It ensures consistent data transfer speeds for internal networking, remote access, and cloud integration.
Intelligent Remote Management with iDRAC9 Enterprise
The iDRAC9 Enterprise management system enables full remote monitoring, diagnostics, and server control. IT administrators can manage firmware updates, troubleshoot issues, and monitor system health without physical access, improving operational efficiency and reducing downtime.
Redundant Power Supply for Maximum Availability
The server includes dual redundant 1100W hot-plug Titanium power supplies, supporting 100–240V AC input. This 1+1 redundancy design ensures continuous operation even in the event of a power supply failure, making it ideal for critical business environments.
Compact 1U Rack Design with Expandability
The Dell PowerEdge R660xs features a space-efficient 1U rack chassis with rack rails and standard bezel included. The system supports PCIe expansion with a 1×16 and 1×8 configuration (single CPU setup), allowing for future upgrades and enhanced flexibility.
Product Specifications
- Product Model: Dell PowerEdge R660xs Rack Server
- Part Number: PER660XS1A
- Server Form Factor: 1U Rack Server
- Processor: 2 x Intel Xeon Silver 4510
- Total Cores: 24 Cores (12 cores per CPU)
- Total Threads: 48 Threads
- Processor Base Frequency: 2.4GHz
- Cache Memory: 30MB per CPU
- CPU Power: 150W per processor
- Memory Installed: 64GB DDR5 RDIMM
- Memory Speed: 5600MT/s
- Memory Type: ECC Dual Rank RDIMM
- Maximum Drive Bays: Up to 10 x 2.5-inch SAS/SATA drives
- Installed Storage: 1 x 480GB SATA SSD
- Drive Type: Hot-plug AG Drive
- RAID Controller: Dell PERC H755 SAS Front
- RAID Levels Supported: RAID 0, RAID 1, RAID 5
- Networking: Broadcom 5720 Dual Port 1Gb On-Board LOM
- Remote Management: iDRAC9 Enterprise 16G / 15G
- Expansion Slots: 1×16 + 1×8 PCIe (No OCP, Riser Config 0)
- Riser Configuration: No Riser (1 CPU configuration support)
- Power Supply: Dual Redundant 1100W Hot-Plug Titanium
- Power Input Range: 100–240V AC
- Chassis Type: 2.5-inch High-Density Rack Chassis
- Included Accessories: Rack Rails, Standard Bezel
- Operating Environment: Data Center / Enterprise IT Infrastructure
- Warranty: 3-Year Basic Next Business Day Onsite Support
