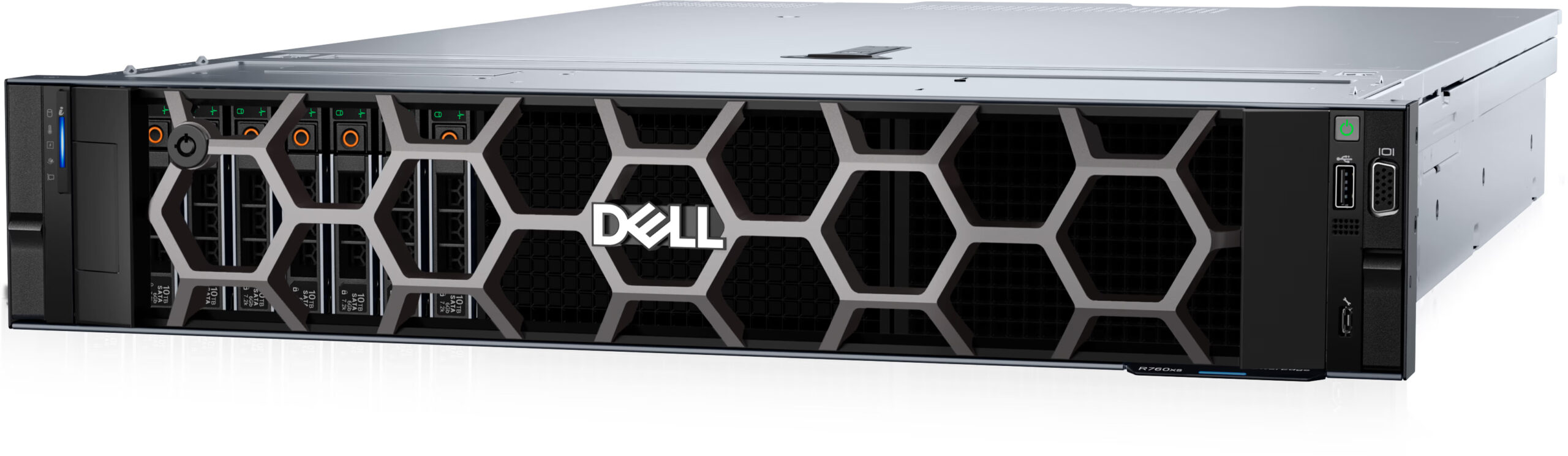

Dell PowerEdge R760xs Rack Server Intel Xeon Silver 4514Y 64GB RAM 480GB SSD 10GbE OCP

Dell PowerEdge R760xs Rack Server is a next-generation enterprise 2U server designed for high-performance computing, virtualization, and data-intensive workloads in modern data centers. Powered by the Intel Xeon Silver 4514Y processor and advanced DDR5 memory architecture, it delivers strong multi-core performance, high memory bandwidth, and scalable storage capacity. With integrated 10GbE networking, enterprise RAID protection, and Dell’s intelligent iDRAC9 management system, the R760xs is built for organizations that require reliability, speed, and efficient infrastructure scaling.

Product Features

High-Performance Intel Xeon Silver 4514Y Processor

The Dell PowerEdge R760xs is powered by the Intel Xeon Silver 4514Y processor featuring 16 cores and 32 threads, a 2.0GHz base frequency, 30MB cache, and Intel Hyper-Threading technology. With a 150W thermal design power, this processor is optimized for balanced performance and energy efficiency, making it suitable for virtualization, enterprise applications, and multi-threaded workloads.

High-Speed DDR5 Server Memory

The system includes 64GB DDR5 RDIMM memory running at 5600MT/s, delivering high bandwidth and improved responsiveness for demanding workloads. The single-rank ECC memory ensures data integrity and system stability, supporting continuous business operations and mission-critical applications.

High-Density Storage with 12-Bay Expandability

The 3.5-inch chassis supports up to 12 SAS or SATA hard drives, enabling flexible storage expansion for growing business needs. This high-capacity design allows organizations to configure storage for performance, redundancy, or large-scale data retention requirements.

Enterprise SSD for Fast System Performance

The included 480GB SATA SSD hot-plug drive provides fast boot times, improved application loading speeds, and reliable system responsiveness. It supports mixed-use workloads, ensuring consistent performance for operating system and application hosting.

Advanced RAID Protection with PERC H755 Controller

The Dell PERC H755 SAS front RAID controller provides enterprise-grade storage management with support for RAID 0, RAID 1, and RAID 5 configurations. This ensures data redundancy, improved performance, and protection against drive failures in critical environments.

Integrated Dual-Port 10GbE Networking

The Broadcom 57416 Dual Port 10GbE BASE-T OCP NIC 3.0 adapter delivers high-speed network connectivity for data-intensive workloads. This enhances data transfer rates, virtualization performance, and overall network efficiency in enterprise environments.

Reliable Dual 1Gb Onboard Networking

In addition to 10GbE capability, the system includes Broadcom 5720 Dual Port 1Gb Ethernet for stable management and backup networking, ensuring continuous connectivity for essential IT operations.

Intelligent Remote Management with iDRAC9 Enterprise

The iDRAC9 Enterprise management system provides full remote server control, monitoring, and diagnostics. IT administrators can manage firmware updates, system health, and troubleshooting remotely, reducing downtime and improving operational efficiency.

Redundant Titanium Power Supply for High Availability

The server is equipped with dual redundant 1100W hot-plug Titanium power supplies, supporting 100–240V AC input. This 1+1 redundancy ensures continuous uptime and protection against power failures in mission-critical environments.

Expandable PCIe and OCP Architecture

The Riser Configuration 0 supports 1×16 and 1×8 PCIe slots, along with OCP NIC 3.0 support. This provides flexibility for future upgrades, including additional networking, storage, or accelerator cards.

Efficient 2U Rack Design with Enterprise Build Quality

The Dell PowerEdge R760xs features a robust 2U rack chassis with rack rails and standard bezel included. Its design optimizes airflow, cooling efficiency, and serviceability for large-scale data center deployments.

Product Specifications

• Product Model: Dell PowerEdge R760xs Rack Server
• Part Number: PER760XS1A – 01
• Server Form Factor: 2U Rack Server
• Processor: Intel Xeon Silver 4514Y
• Processor Cores: 16 Cores
• Processor Threads: 32 Threads
• Base Frequency: 2.0GHz
• Cache Memory: 30MB
• Thermal Design Power: 150W
• Memory Installed: 64GB DDR5 RDIMM
• Memory Speed: 5600MT/s
• Memory Type: ECC Single Rank RDIMM
• Maximum Drive Bays: Up to 12 x 3.5-inch SAS/SATA drives
• Installed Storage: 1 x 480GB SATA SSD
• Drive Type: Hot-plug RI/AG Drive (5–12 Hybrid Support)
• RAID Controller: Dell PERC H755 SAS Front
• RAID Levels Supported: RAID 0, RAID 1, RAID 5
• Networking: Broadcom 5720 Dual Port 1Gb On-Board LOM
• Additional Networking: Broadcom 57416 Dual Port 10GbE BASE-T OCP NIC 3.0
• Remote Management: iDRAC9 Enterprise 16G / 15G
• Expansion Slots: 1×16 + 1×8 PCIe (No Riser, OCP Support)
• Riser Configuration: No Riser (1 CPU configuration support)
• Power Supply: Dual Redundant 1100W Hot-Plug Titanium
• Power Input Range: 100–240V AC
• Chassis Type: 3.5-inch High-Capacity 2U Rack Chassis
• Included Accessories: Rack Rails, Standard Bezel
• Operating Environment: Data Center / Enterprise IT Infrastructure
• Warranty: 3-Year Basic Next Business Day Onsite Support
