Vertiv GXT RT+ 1-Phase UPS, 3kVA (GXTRT-3000IRT2UXL)

Vertiv GXT RT+ 3kVA UPS delivers high-capacity, true double-conversion Power Back-up UPS performance, protecting critical systems against power disruptions, voltage fluctuations, and electrical noise. With zero transfer time, hot-swappable batteries, and advanced monitoring capabilities, it’s an ideal Uninterruptible Power Supply in Kenya for IT networks, healthcare, finance, and edge computing environments requiring consistent uptime.

Product Features

True Online Double-Conversion Technology
Delivers continuous, clean sinewave power with zero transfer time, ensuring uninterrupted performance for sensitive equipment.

High Output Capacity
Rated at 3kVA / 2700W, ideal for powering servers, switches, storage arrays, and advanced workstations.

Advanced Battery Management
Hot-swappable, sealed lead-acid batteries with intelligent monitoring and temperature-compensated charging extend life and performance.

Versatile Output Connections
Includes (6) IEC C13 and (1) IEC C19 outlets for flexible load distribution across multiple devices.

High Efficiency Operation
Achieves up to 94% efficiency in online mode and 98% in ECO mode, reducing operating costs and heat output.

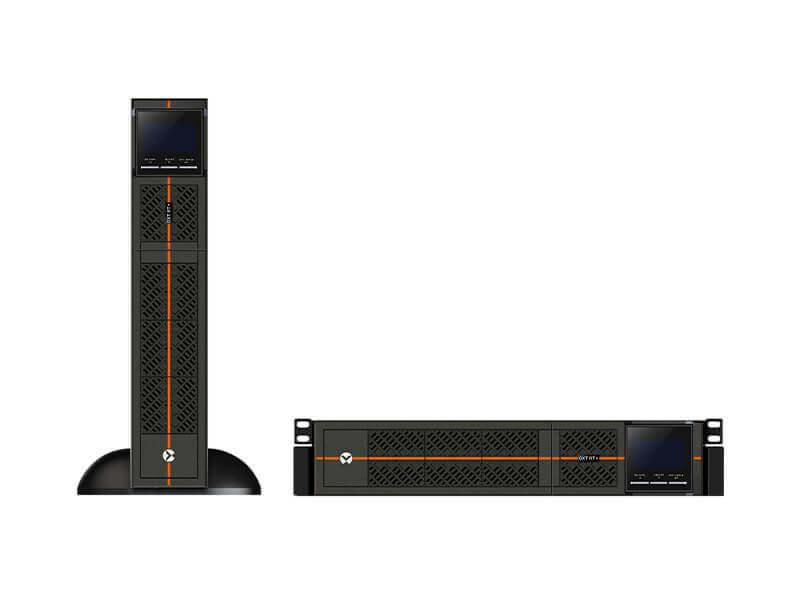

Flexible Rack/Tower Design
Space-saving 2U convertible chassis supports both rackmount and tower installations.

Real-Time Monitoring Interface
LCD panel provides system status, input/output voltage, load, frequency, and alarm conditions.

Remote Management Capabilities
Built-in USB, RS-232, and intelligent SNMP slot allow integration with Vertiv Power Insight and other monitoring platforms.

Scalable Runtime
Supports external battery cabinets to extend backup duration during prolonged power outages.

Quiet and Compact
Low noise level (<55 dB) and 2U height make it suitable for office, branch, or edge IT setups.

Product Specifications

• Model: GXTRT-3000IRT2UXL
• Capacity: 3kVA / 2700W
• Technology: True Online Double-Conversion
• Form Factor: Rack/Tower Convertible (2U)

Input

• Voltage Range: 120V–276V AC
• Nominal Voltage: 230V AC
• Frequency Range: 40–70Hz (auto-sensing)
• Input Plug: IEC60320 C20

Output

• Voltage: 230V AC
• Voltage Regulation: ±1%
• Frequency (Battery Mode): 50/60Hz ±0.05Hz
• Waveform: Pure Sinewave
• Outlets: (6) IEC C13 + (1) IEC C19
• Overload Protection:
  • 105–125% for 1 minute
  • 125% for 10 seconds
• Transfer Time: 0 ms (seamless)

Battery

• Type: Maintenance-free sealed lead-acid
• Configuration: Hot-swappable
• Runtime: ~4–8 minutes (full load, extendable)
• Recharge Time: <4 hours to 90%
• Management: Temperature-compensated charging and monitoring

Efficiency

• Online Mode: Up to 94%
• ECO Mode: Up to 98%

Monitoring & Communication

• Display: LCD (real-time voltage, load, battery, status)
• Ports: USB, RS-232
• Expansion: Intelligent SNMP slot for network cards

Environment

• Operating Temp: 0°C to 40°C
• Storage Temp: -15°C to 50°C
• Humidity: 0–95% RH (non-condensing)
• Altitude: Up to 3000m (derating above 1000m)
• Noise Level: <55 dB

Physical

• Dimensions (W x D x H): 438 x 630 x 86 mm
• Weight: 28.5 kg

Certifications & Compliance

• Certifications: CE, UL
• Standards: IEC/EN 62040-1 (Safety), IEC/EN 62040-2 (EMC)

Warranty

• UPS & Batteries: 2 Years

Applications

• Data Centers & Server Rooms: High power density for mission-critical infrastructure.
• Edge Computing: Localized IT systems at branch or remote sites.
• Healthcare: Power protection for diagnostic and monitoring systems.
• Telecom Networks: Keeps VoIP gateways, switches, and routers running.
• Finance & Retail: Continuous uptime for point-of-sale and transaction systems.
• Education & Government: Reliable performance for labs, servers, and network hardware.
