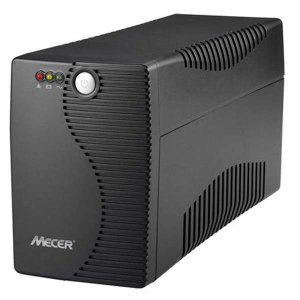

MECER 3000VU 3KVA Line Interactive UPS (ME-3000-VU)

MECER ME-3000-VU is a dependable Power Back-up UPS designed to provide essential voltage regulation and battery backup for critical systems. Leveraging Line Interactive technology, this unit offers stable and uninterrupted power for desktops, networking devices, point-of-sale systems, and other sensitive electronics. It’s an excellent solution for businesses and offices seeking a cost-effective and durable Uninterruptible Power Supply in Kenya.

Product Features

Line Interactive UPS Technology
Delivers automatic voltage regulation (AVR) to correct under- and over-voltage conditions without switching to battery, extending battery life.

Robust Backup Power
Provides up to 3000VA/1800W of backup capacity, ideal for mid-sized systems and office infrastructure.

Automatic Voltage Regulation (AVR)
Stabilizes output voltage without draining the battery, offering enhanced efficiency during fluctuations.

Multiple Protection Functions
Built-in overload, discharge, and overcharge protection ensures safe and reliable performance.

Audible & Visual Alarms
Multi-stage alarm system alerts users to battery mode, low battery, overload, and faults.

Simulated Sine Wave Output
Supports most common computing and communication devices during power failures.

LED Indicator Lights
Clearly show operating mode (AC, battery, or fault) for simplified monitoring.

Optional USB/RS-232 Port
Enables connectivity to UPS monitoring software compatible with Windows, Linux, Unix, and Mac OS.

Product Specifications

• Model: ME-3000-VU
• UPS Type: Line Interactive
• Capacity: 3000 VA / 1800 W
• Input Voltage Range:
  • 81–145 VAC (Low input mode)
  • 162–290 VAC (High input mode)
• Input Frequency: 50/60 Hz (auto-sensing)
• Output Voltage: 110/120 VAC or 220/230/240 VAC
• Output Regulation (Battery Mode): ±10%
• Output Frequency (Battery Mode): 50Hz or 60Hz ±1Hz
• Transfer Time: 2–6 ms (typical), 10 ms (max)
• Waveform (Battery Mode): Simulated Sine Wave
• Battery Type: 4 x 12V/9Ah Sealed Lead-Acid
• Recharge Time: 4–6 hours to 90%
• Indicators:
  • Green: AC mode
  • Yellow (flashing): Battery mode
  • Red: Fault condition
• Alarms:
  • Battery Mode: Every 10 seconds
  • Low Battery: Every second
  • Overload: Every 0.5 seconds
  • Battery Replacement: Every 2 seconds
  • Fault: Continuous tone
• Physical Dimensions: 495 x 150 x 250 mm
• Net Weight: 24.8 kg
• Operating Temperature: 0–40°C
• Humidity: 0–90% RH (non-condensing)
• Noise Level: <40 dB
• Communication: Optional USB/RS-232 port

Applications

• Small to Mid-Sized Business IT Equipment
• Desktops and Workstations
• Routers, Switches, and Network Gear
• Point-of-Sale (POS) Systems
• Security Surveillance Systems
• Home Office and Remote Work Setups

Key Benefits

• Affordable Uninterruptible Power Supply in Kenya with strong local availability and support
• Reliable Power Back-up UPS with AVR and surge protection
• Quiet operation and compact design ideal for office or retail environments
• User-friendly alerts and optional software for monitoring and system control
• Backed by Mecer’s reputation for durable and serviceable UPS units
