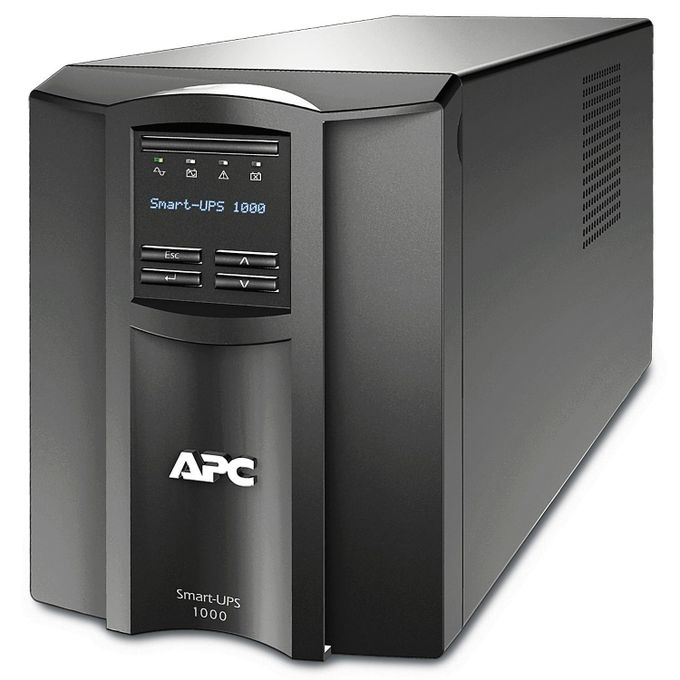

APC Smart-UPS 1000VA LCD 230V Interface Ports (SMT1000IC)

APC Smart-UPS 1000VA LCD (SMT1000IC) is a premium Uninterruptible Power Supply in Kenya that delivers efficient, intelligent protection for servers, POS terminals, routers, switches, and network equipment. Designed with advanced line-interactive topology and a pure sine wave output, this Power Back-up UPS ensures stable voltage, consistent uptime, and real-time system monitoring via a multifunction LCD and SmartSlot interface.

Key Features

• Output Power Capacity: 700W / 1000VA
  Ideal for small servers, storage devices, and networking infrastructure.
• Pure Sine Wave Output
  Delivers clean and stable power—perfect for sensitive electronics and IT devices.
• Line-Interactive Topology
  Offers efficient voltage regulation without battery usage during minor fluctuations.
• Configurable Output Voltage
  Set to 220V, 230V, or 240V as per your regional requirements.
• Fast Transfer Time
  6ms typical (10ms max) ensures nearly uninterrupted switching during power loss.
• Automatic Voltage Regulation (AVR)
  Maintains voltage stability to protect connected devices from under-voltage or over-voltage.

Specifications

• Nominal Output Voltage: 230V
• Output Voltage Range: 220–240V (Configurable)
• Output Frequency: 50/60Hz ±3Hz (synchronized to mains)
• Voltage Distortion: <5%
• Waveform Type: Sine wave
• Output Connections:
  • 8 × IEC 320 C13 (Battery Backup)
  • 2 × IEC Jumpers (Battery Backup)
• Nominal Input Voltage: 230V
• Input Voltage Range:
  • Main Operation: 160 – 286V
  • Adjustable Range: 151 – 302V
• Input Connection: IEC-320 C14
• Input Frequency: 50/60 Hz ±3 Hz (auto-sensing)

Battery & Runtime

• Battery Type: Maintenance-free, sealed lead-acid with suspended electrolyte (leakproof)
• Recharge Time: 3 hours
• Replacement Battery: RBC6
• Battery Life: 3–5 years
• Battery Quantity: 1 (hot-swappable)

Monitoring & Management

• LCD Control Panel: Multifunction graphical interface for UPS status, diagnostics, and controls
• Audible Alarms:
  • Battery mode
  • Low battery warning
  • Overload alert (continuous tone)
• Communication Ports:
  • 1 × USB
  • 1 × SmartSlot (expandable management options)
• EPO Support: Optional Emergency Power Off function for enhanced safety

Design & Build

• Topology: Line Interactive
• Waveform Output: Pure sine wave
• Color: Black
• Mounting: Tower/Floor
• SmartSlot Quantity: 1 (for adding network management cards)

Ideal Applications

• IT Infrastructure: Keeps servers, switches, and routers online during power cuts
• Retail & POS Systems: Ensures business continuity in payment and transaction systems
• Remote Workstations: Protects PCs, monitors, and home networking gear
• SMEs & Branch Offices: Supports networking and communications hardware
• Security Systems: Powers CCTV, DVRs, and alarms for uninterrupted surveillance
