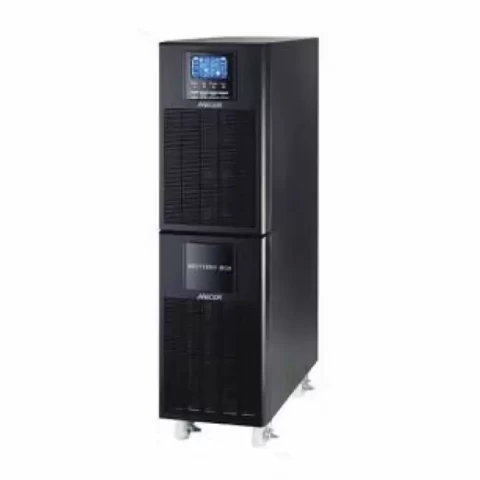

Mecer ME-6000-WPTU, 6KVA Online Smart Tower UPS

Mecer ME-6000-WPTU is a robust 6KVA Power Back-up UPS built with true double-conversion online technology to deliver uninterrupted, stable power for sensitive and high-demand equipment. Designed for data centers, telecom systems, and industrial applications, this Uninterruptible Power Supply in Kenya ensures zero transfer time, advanced battery management, and intelligent remote monitoring—making it ideal for mission-critical environments.

Product Features

True Online Double-Conversion Technology
Provides continuous, clean sinewave power by isolating connected devices from utility power fluctuations.

High Output Power Factor (0.9)
Delivers 4,800W of usable power from its 6,000 VA capacity, supporting high-performance equipment.

Wide Input Voltage Range
Operates from 110–300 VAC (at 50% load), ensuring stable operation even under poor power conditions.

Eco Mode Efficiency
Energy-saving mode available during stable input voltage conditions, reducing energy usage and heat output.

Zero Transfer Time
Guarantees instant switch to battery power without interruption, protecting sensitive systems during outages.

Programmable Outlets
Individual outlet control for critical loads, enabling flexible power management.

Emergency Power Off (EPO)
Ensures safety by instantly powering down the UPS in case of emergencies.

Advanced Battery Charging
3-stage charging technology improves battery performance and extends service life.

Long Runtime Option
Supports extended battery configurations (18–20 batteries) with high current charging (up to 8A).

Maintenance Bypass Support
Allows uninterrupted power to loads during UPS maintenance or replacement.

Parallel Redundancy Support (Optional)
Scalable and redundant power system with N+X configuration for enhanced fault tolerance.

Smart Monitoring & Remote Management
Multiple communication interfaces—USB, RS-232, and SNMP—for local and remote UPS monitoring.

Product Specifications

• Model: Mecer ME-6000-WPTU
• Capacity: 6,000 VA / 4,800 W
• UPS Type: True double-conversion online UPS
• Input Voltage Range:
  • 176–300 VAC @ 100% load
  • 110–300 VAC @ 50% load
• Input Frequency Range: 46–54 Hz or 56–64 Hz
• Input Power Factor: ≥ 0.99 @ full load
• Output Voltage: Selectable: 208/220/230/240 VAC
• Output Regulation (Battery Mode): ± 1%
• Output Frequency (Battery Mode): 50 ± 0.1 Hz / 60 ± 0.1 Hz
• Waveform: Pure sinewave
• Transfer Time: Zero (AC to Battery & Inverter to Bypass)
• Efficiency (AC Mode): 89%
• Efficiency (Battery Mode): 88%

Battery System

• Type: 12V / 9Ah Sealed Lead-Acid
• Quantity: 16 batteries (standard model)
• Charging Voltage: 273 VDC ± 1%
• Recharge Time: 7 hours to 90%
• Charging Current (Long-run model): Up to 4.0 A
• Adjustable Battery Quantity: 18–20 batteries for extended runtime

User Interface & Alarms

• LCD Display: Real-time info—load, voltage, battery level, fault status
• LED Indicators: 16 LEDs showing UPS health and operating status
• Audible Alarms:
  • Battery mode: Beep every 4 seconds
  • Low battery: Beep every second
  • Overload: Two beeps per second
  • Fault: Continuous alarm

Environmental & Physical

• Operating Temperature: 0–40°C
• Humidity: 20–90% RH (non-condensing)
• Noise Level: < 55 dBA at 1 meter
• Dimensions: 592 x 250 x 576 mm
• Weight: 81 kg (standard model), 25 kg (long-run model)

Communication Interfaces

• Ports: USB, RS-232, SNMP (optional)
• OS Support: Windows, Linux, Unix, macOS

Warranty

• UPS Unit: 2 years
• Battery: 1 year

Applications

• Data Centers: Reliable power for mission-critical servers and storage.
• Industrial Automation: Maintains uptime for manufacturing and PLC systems.
• Telecommunications: Powers switches, routers, and PBX systems.
• Medical Facilities: Supports diagnostic machines and monitoring systems.
• Enterprise Networks: Backs up network switches, desktops, and VoIP setups.
• Security Systems: Ensures continuity for CCTV and access control systems.
• Retail and Banking: Ideal for POS terminals and ATMs during power disruptions.
