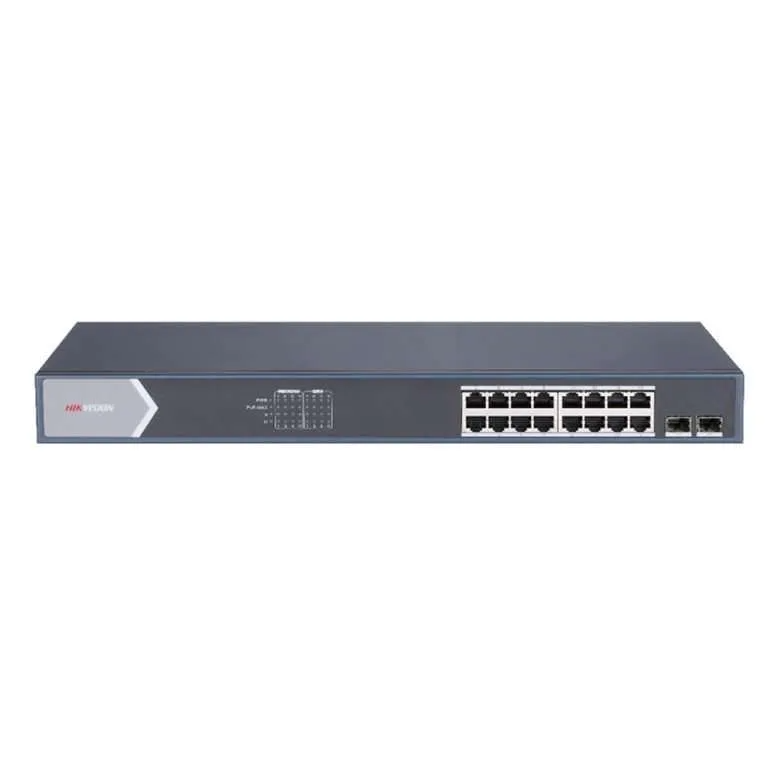

Hikvision DS-3E0518P-E 16 Port Gigabit Unmanaged POE Switch

Hikvision DS-3E0518P-E 16-Port Gigabit Unmanaged PoE Switch is a high-performance, plug-and-play networking solution designed for medium to large surveillance systems and business networks. Featuring 16 Gigabit PoE ports along with uplink connectivity, it delivers both power and high-speed data over a single Ethernet cable, simplifying deployment of IP cameras, access points, and VoIP devices. With a strong PoE power budget, non-blocking switching performance, and durable metal construction, this switch ensures stable, efficient, and reliable network operation without requiring configuration.

Product Features

16 Gigabit PoE Ports with Uplink Options

Equipped with 16 × 10/100/1000 Mbps PoE ports, plus 1 × Gigabit RJ45 uplink and 1 × Gigabit SFP uplink port for flexible network expansion and high-speed backbone connectivity.

Unmanaged Plug-and-Play Design

Requires no configuration—simply connect devices and the switch automatically handles data transmission and PoE power delivery.

IEEE 802.3af/at PoE Support

Supports both PoE and PoE+ standards, delivering up to 30 W per port to power IP cameras and other PoE-enabled devices.

High PoE Power Budget (230W)

Provides a total PoE power budget of up to 230 W, allowing multiple devices to operate simultaneously without performance issues.

High Switching Performance

Offers a switching capacity of up to 36 Gbps and forwarding rate of approximately 26.78 Mpps for smooth and efficient data handling.

6 kV Surge Protection

Built-in surge protection safeguards the switch and connected devices from electrical spikes and lightning.

Store-and-Forward Switching

Ensures accurate data transmission by verifying packets before forwarding, improving network reliability.

Fanless Metal Design

Durable metal enclosure with silent, fan-free operation ensures long-term reliability in professional environments.

Wide Compatibility

Compatible with IP cameras, wireless access points, VoIP phones, and other IEEE-compliant PoE devices.

Product Specifications

• Ports: 16 × Gigabit PoE ports, 1 × Gigabit RJ45 uplink, 1 × Gigabit SFP uplink
• PoE standard: IEEE 802.3af / IEEE 802.3at
• Max port power: Up to 30 W per port
• Total PoE power budget: 230 W
• Switching capacity: 36 Gbps
• Packet forwarding rate: 26.78 Mpps
• MAC address table: 8K entries
• Internal cache: 4.1 Mbits
• Network standards: IEEE 802.3, 802.3u, 802.3x, 802.3ab, 802.3z
• Transmission mode: Store-and-forward
• Surge protection: 6 kV
• Power supply: 100–240 VAC, 50/60 Hz
• Max power consumption: Up to ~400 W
• Operating temperature: 0°C to 40°C
• Storage temperature: -40°C to 85°C
• Operating humidity: 5% to 95% (non-condensing)
• Dimensions: 440 × 44 × 220.8 mm
• Weight: Approx. 2.6–3.5 kg
• Installation: Rack-mount or desktop
• Enclosure: Metal housing, fanless design
