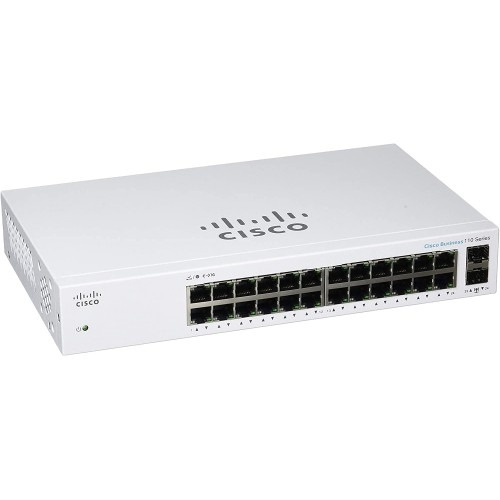

Cisco CBS Unmanaged 24-Port 2x1G SFP Gigabit Switch Non-PoE

Cisco CBS110-24T is a high-performance unmanaged gigabit switch designed for small to medium-sized network deployments where simplicity and reliability matter. With 24 10/100/1000 Mbps RJ-45 ports and 2 1 Gb SFP (combo) uplinks, this switch supports full gigabit connectivity across your wired devices while enabling flexible fiber or long-reach copper uplinks. It requires zero configuration — plug-and-play — and is fanless for quiet operation, making it well-suited for office, classroom or lab environments.

Product Features

24 Gigabit Ethernet Ports

Enables high-speed wired networking for desktops, servers, IP phones and other devices with 24 dedicated Gigabit RJ-45 ports.

2 × 1G SFP Combo Uplinks

Offers two SFP uplink slots (combo with RJ-45) for fiber or other long-reach connections, allowing flexible backbone or inter­switch links.

Unmanaged, Plug-and-Play Operation

No configuration is required. The switch works out of the box — ideal for installations without dedicated IT staff.

Energy Efficient & Fanless Design

Supports IEEE 802.3az (Energy Efficient Ethernet) to reduce power consumption during low-traffic periods, and the fanless chassis lowers noise in open workspace.

Diagnostic Functionality

Built-in features such as loop detection and cable diagnostics help identify network issues quickly, improving network reliability.

Product Specifications

• Model: CBS110-24T (also seen as CBS110-24T-NA / -EU)
• Ports: 24 × 10/100/1000 Mbps RJ-45 + 2 × 1 Gb SFP (combo with RJ-45)
• Switching capacity: 48 Gb/s
• Forwarding rate: 35.7 Mpps (64-byte packets)
• MAC address table size: 8K entries
• Jumbo frame support: 9,216 bytes
• Power input: 100-240 V AC, 50/60 Hz (internal universal power supply)
• Power consumption (max): ~16-18 W, typical for non-PoE version
• Operating temperature: 0 °C to 40 °C
• Dimensions: 279 × 170 × 44 mm (≈ 11″ × 6.7″ × 1.73″)
• Weight: ~1.45 kg forthe  non-PoE model
• Warranty: Limited lifetime hardware warranty (check region for details)
