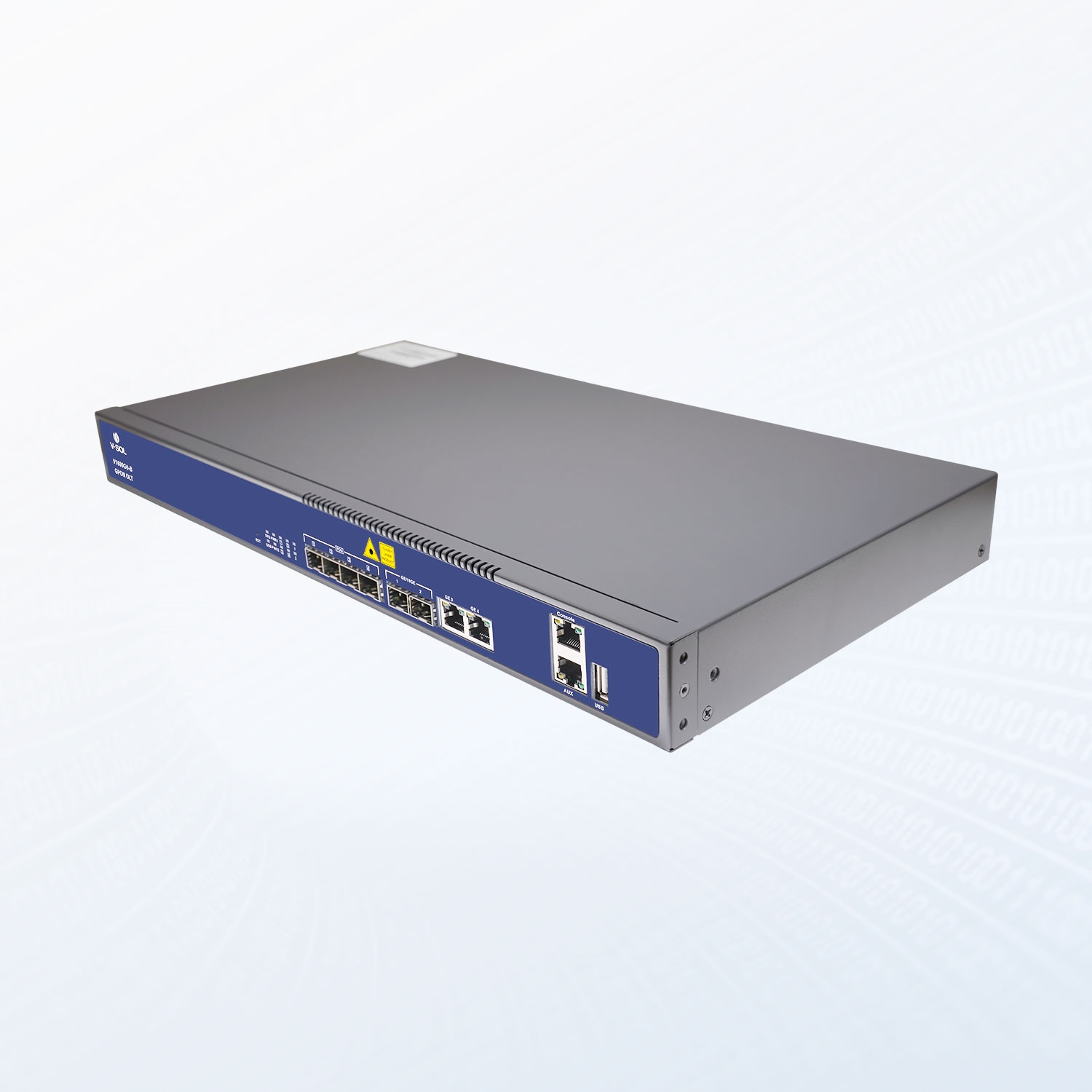

V-SOL 4 Port GPON OLT V1600G0-B (Optical Line Terminal)

V-SOL V1600G0-B is a 4-Port GPON OLT (Optical Line Terminal) designed for high-performance fiber access networks including FTTH (Fiber to the Home), FTTB (Fiber to the Building), and enterprise broadband deployments. It supports up to 512 GPON ONU devices and offers robust switching capabilities, advanced Layer 2 features, and multiple uplink interfaces. With a compact 1U rack-mountable design, flexible management, and excellent stability, it is ideal for ISPs, telecom operators, and institutions seeking reliable, scalable, and cost-effective GPON solutions.

Product Features

High GPON Port Density

Supports 4 GPON ports with each port capable of serving up to 128 ONUs, providing total support for up to 512 GPON ONU devices, ideal for medium-scale deployments.

Flexible Uplink Options

Equipped with 4 uplink ports: 2×GE Combo (RJ45/SFP) and 2×10GE SFP+, allowing seamless integration with core networks and efficient upstream bandwidth.

Carrier-Class Performance

Delivers a switching capacity of 56 Gbps and a forwarding rate of 41.67 Mpps, enabling high throughput and low-latency data transfer across large user bases.

Advanced Layer 2 Switching Features

Supports VLAN, QinQ, MAC address filtering, storm control, port isolation, and Spanning Tree Protocols (STP/RSTP) for secure and manageable network segmentation.

Multiple Management Interfaces

Offers flexible management via Web GUI, CLI, Telnet, SNMP, and EMS, making network monitoring and configuration straightforward for administrators.

Space-Saving and Durable Design

Built in a 1U 19-inch rack-mountable chassis, the OLT fits easily into standard network cabinets and is engineered for 24/7 indoor operation with reliable cooling.

Product Specifications

• 4 GPON ports (SC/UPC, Class B+)
• Supports up to 512 ONU devices (128 ONUs per port)
• 2×GE Combo uplink ports (RJ45/SFP)
• 2×10GE SFP+ uplink ports
• Switching capacity: 56 Gbps
• Forwarding rate: 41.67 Mpps
• MAC address table: 16K entries
• Jumbo frame support: 9600 Bytes
• VLAN: 4K VLANs, QinQ supported
• Layer 2 protocols: STP, RSTP, IGMP snooping, port isolation
• Management: Web GUI, CLI, Telnet, SNMP, EMS
• Power supply: AC 100–240V, 50/60Hz
• Power consumption: ≤45W
• Operating temperature: -10°C to 55°C
• Storage temperature: -40°C to 85°C
• Dimensions: 442mm × 320mm × 44mm
• Weight: Approx. 3.5 kg

Application

V-SOL 4 Port GPON OLT V1600G0-B is engineered to meet the diverse connectivity needs of modern fiber-optic network environments. Its combination of scalability, performance, and efficient management makes it suitable for the following applications:

• FTTH (Fiber to the Home): Delivers high-speed internet, IPTV, and VoIP services directly to residential users with stable and secure connections.
• FTTB (Fiber to the Building): Supports reliable fiber access for multi-dwelling units, commercial buildings, and business complexes with centralized control.
• ISPs and Telecom Service Providers: Enables small and medium-sized providers to roll out GPON-based broadband services with support for hundreds of ONU devices.
• Enterprise Networks: Ideal for corporate campuses, government institutions, and educational facilities requiring high-capacity and segmented network architecture.
• Smart Cities and Surveillance Networks: Provides reliable fiber connectivity for IP cameras, IoT sensors, and public infrastructure in city-wide smart deployments.
• Rural and Community Internet Projects: Supports scalable and affordable fiber rollout in underserved regions with manageable growth and performance.

V1600G0-B combines robust performance with compact design, offering a practical and cost-efficient solution for deploying GPON-based fiber broadband networks.

FAQs

Q1: How many ONU devices can the V-SOL V1600G0-B support?
A: V1600G0-B supports up to 512 GPON ONUs, with each of the 4 ports capable of connecting up to 128 ONU devices.

Q2: What type of uplink ports are available on this OLT?
A: It includes 4 uplink ports: 2×GE Combo ports (RJ45/SFP) and 2×10GE SFP+ ports, providing flexible and high-speed upstream connectivity.

Q3: Can this OLT be used for FTTH deployments?
A: Yes, the V1600G0-B is ideal for FTTH applications, offering stable, high-speed broadband services to residential customers.

Q4: What management options are supported?
A: The OLT can be managed through Web GUI, CLI, Telnet, SNMP, and EMS, allowing both local and remote configuration and monitoring.

Q5: Is the device rack-mountable?
A: Yes, it features a compact 1U 19-inch rack-mountable design, suitable for installation in standard network racks or cabinets.

Q6: What is the switching capacity of this OLT?
A: The device has a switching capacity of 56 Gbps and a forwarding rate of 41.67 Mpps, ensuring efficient handling of high traffic loads.

Q7: Does the OLT support VLAN and Layer 2 protocols?
A: Yes, it supports up to 4K VLANs, QinQ, STP, RSTP, IGMP snooping, and port isolation for advanced network segmentation and control.

Q8: What power input does it require?
A: The OLT operates on an AC power input of 100–240V, 50/60Hz, with a maximum power consumption of ≤45W.

Q9: Can this OLT be used outdoors?
A: No, the V1600G0-B is designed for indoor use in climate-controlled environments to ensure optimal performance and longevity.
