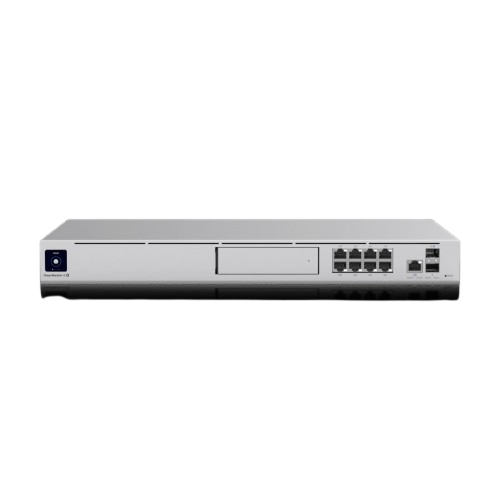

Ubiquiti Dream Machine Special Edition (UDM-SE)

Ubiquiti Dream Machine Special Edition (UDM-SE) is a powerful all-in-one UniFi OS Console that unifies advanced routing, security, switching, and storage within a single rack-mountable appliance. Designed for enterprise and professional networking environments, it combines high-speed multi-gigabit WAN connectivity, an integrated PoE/PoE+ switch, and built-in NVR storage to support comprehensive UniFi Network and Protect solutions. With robust security features, extensive management tools, and expandable storage for surveillance, the UDM-SE delivers an end-to-end networking and security platform for businesses and advanced network deployments.

Product Features

All-in-One UniFi OS Console

Integrates a security gateway, managed PoE switch, network controller, and NVR storage into a single 1U rack-mountable device, simplifying infrastructure and reducing hardware count.

Multi-Gigabit WAN and LAN Connectivity

Includes high-speed WAN options with both 10G SFP+ and 2.5 GbE RJ45 ports and a 10G SFP+ LAN port to support fast internet connections and high-capacity backbone links.

Integrated PoE and PoE+ Switch

Features an 8-port Gigabit Ethernet switch with PoE/PoE+ support to power access points, cameras, and other devices directly without external injectors.

Advanced Security and Routing

Delivers enterprise-grade firewall, IDS/IPS, VPN support, SD-WAN, VLAN segmentation, and threat management with real-time protection and high throughput.

Built-In NVR and Expandable Storage

Comes with a 128 GB SSD for UniFi Protect video recording and includes a 3.5″ HDD bay for additional storage expansion, ideal for managing surveillance cameras.

1.3-inch Touchscreen Display

Equipped with a front-panel touchscreen that provides real-time system status and simplified monitoring without needing to access a separate console.

UniFi Network Integration

Managed via UniFi OS with support for UniFi Network, Protect, Access, and future UniFi applications, allowing centralized configuration, monitoring, and remote cloud access.

Product Specifications

• Processor: Quad-core ARM Cortex-A57 @ 1.7 GHz
• System memory: 4 GB DDR4
• On-board flash: 16 GB eMMC
• Internal storage: 128 GB SSD (pre-installed)
• Expandable storage: 3.5″ HDD bay for additional NVR space
• WAN ports: 1 × 10G SFP+; 1 × 2.5 GbE RJ45
• LAN ports: 8 × Gigabit RJ45 with PoE/PoE+
• Additional LAN: 1 × 10G SFP+
• PoE support: 6 × PoE; 2 × PoE+ (802.3af/at)
• Switching capacity: Approx. 18 Gbps
• IDS/IPS throughput: ~3.5 Gbps
• Touchscreen: 1.3-inch front display
• Enclosure: 1U rack-mountable chassis
• Dimensions: 442.4 × 285.6 × 43.7 mm
• Weight: ~4.95 kg
• Power: Internal AC/DC supply
• Management: UniFi OS with cloud access and mobile app support
• Security features: Stateful firewall, IPS/IDS, VLAN, VPN
