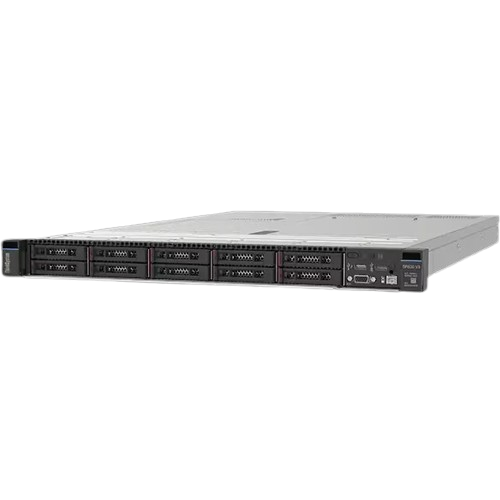

Lenovo Thinksystem SR630 V3 Xeon Silver 4514Y (16C 2.0GHz 30MB Cache/150W), 32GB (1x32GB, 5600MHz 1Rx4 DDR5 RDIMM), 8 SAS/SATA, 940-8i 4GB, 1x1100W Titanium, 6 Performance Fans, XCC2 Platinum, Toolless V2 Rails

Lenovo ThinkSystem SR630 V3 is a high-density 1U rack server designed for enterprise workloads, virtualization, cloud infrastructure, and data-intensive applications. Powered by the Intel Xeon Silver 4514Y processor with 16 cores, it delivers strong parallel processing performance, improved efficiency, and reliable compute capability for modern business environments. Combined with 32GB DDR5 5600MHz RDIMM memory, support for up to 8 SAS/SATA hot-swap drives, and the Lenovo 940-8i RAID controller with 4GB cache, this server provides a scalable, high-performance foundation for demanding IT workloads and data center deployments.

Product Features

Intel Xeon Silver 4514Y 16-Core Processing Performance

The system is powered by the Intel Xeon Silver 4514Y processor featuring 16 cores, a 2.0GHz base frequency, 30MB cache, and 150W TDP. It is optimized for multi-threaded workloads such as virtualization, cloud applications, database processing, and enterprise computing environments.

High-Speed DDR5 5600MHz Memory Performance

Equipped with 32GB of 5600MHz DDR5 RDIMM memory (1x32GB, 1Rx4), the system delivers increased memory bandwidth, faster data transfer rates, and improved responsiveness for memory-intensive workloads. It also supports memory scalability for future expansion.

Flexible 8-Bay SAS/SATA Storage Architecture

The SR630 V3 supports up to 8 SAS/SATA hot-swap drive bays, enabling flexible storage configurations for performance, capacity, or hybrid use cases. This makes it suitable for enterprise storage, virtualization environments, and database hosting.

Lenovo 940-8i RAID Controller with 4GB Cache

The integrated Lenovo 940-8i RAID controller provides enterprise-grade storage management with 4GB cache, enhancing data protection, redundancy, and I/O performance. It supports multiple RAID levels for improved reliability and performance optimization.

Advanced Cooling with 6 Performance Fans

The system is equipped with six high-efficiency performance fans designed to maintain optimal operating temperatures under heavy workloads, ensuring system stability and long-term hardware reliability.

1100W Titanium Power Supply Efficiency

A single 1100W Titanium-rated power supply delivers high energy efficiency, stable power output, and reduced operational costs while supporting enterprise-grade server performance and expansion needs.

Lenovo XClarity Controller 2 Platinum Management

XCC2 Platinum provides advanced remote management capabilities including monitoring, diagnostics, firmware updates, and secure out-of-band control, improving IT efficiency and reducing system downtime.

Toolless V2 Rail Kit for Fast Deployment

The included Toolless V2 rail kit enables quick and secure installation into standard server racks, simplifying deployment and maintenance in professional data center environments.

Product Specifications

• Server model: Lenovo ThinkSystem SR630 V3
• Form factor: 1U rack server
• Processor: Intel Xeon Silver 4514Y
• Processor cores: 16 cores
• Base frequency: 2.0GHz
• Processor cache: 30MB
• Processor TDP: 150W
• Memory installed: 32GB DDR5 RDIMM (1x32GB)
• Memory speed: 5600MHz
• Memory type: 1Rx4 DDR5 RDIMM
• Storage bays: 8 x SAS/SATA hot-swap bays
• RAID controller: Lenovo 940-8i RAID controller with 4GB cache
• Power supply: 1 x 1100W Titanium efficiency PSU
• Cooling system: 6 performance fans
• Management: Lenovo XClarity Controller 2 (XCC2) Platinum
• Rail kit: Toolless V2 rails included
• Expansion slots: PCIe expansion support
• Networking: Integrated Ethernet connectivity
• Operating system: Not included
• Use cases: Virtualization, cloud computing, enterprise applications, databases, and high-performance data center workloads
