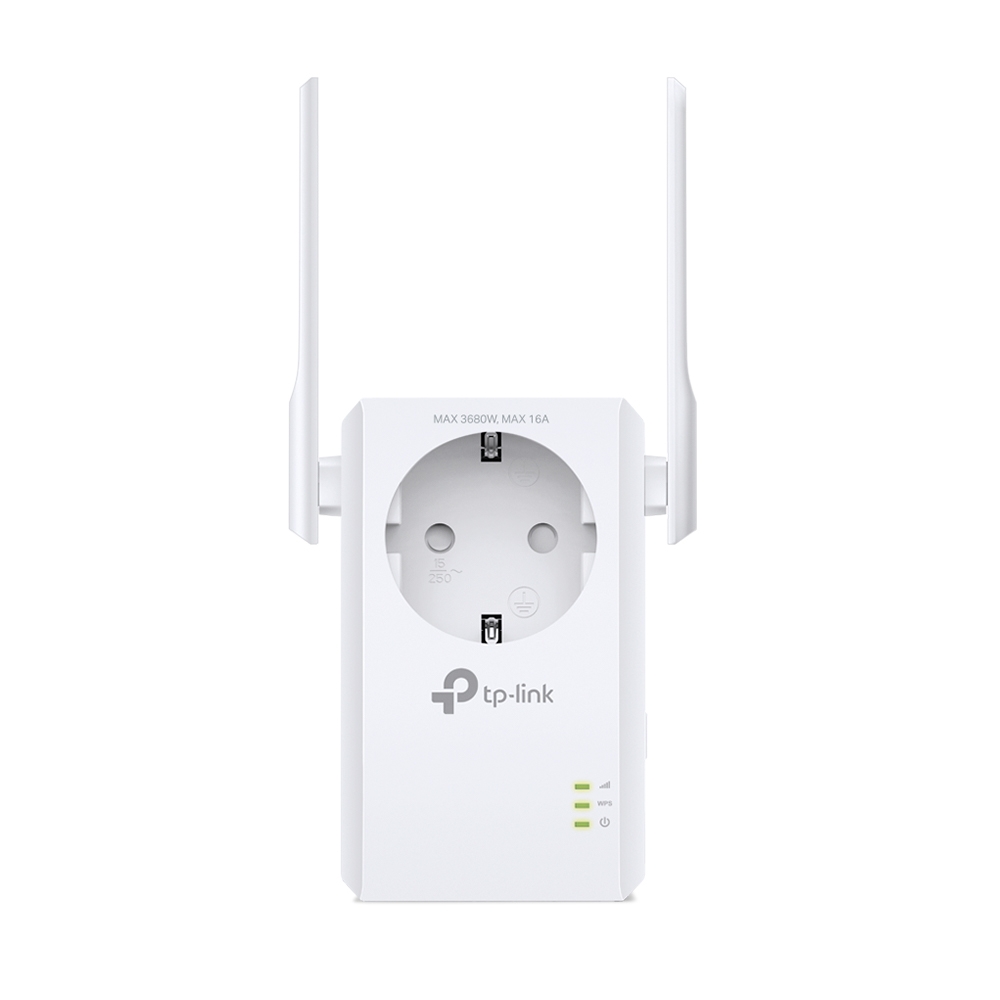

TP-Link TL‑WA860RE 300 Mbps Wi‑Fi Range Extender with AC Passthrough (TL‑WA860RE)

TP-Link TL‑WA860RE is a compact Wi‑Fi range extender designed to eliminate dead zones and enhance wireless coverage throughout your home or office. Supporting up to 300 Mbps wireless N speeds on the 2.4 GHz band, this device features dual external antennas for stronger and more stable connections. Its wall-mounted design with AC passthrough preserves power outlet access, while the integrated Ethernet port allows wired devices to connect to the wireless network. With a simple one-button WPS setup, smart signal indicator, and universal compatibility, the TL‑WA860RE is a practical solution for expanding your Wi‑Fi network effortlessly.

Product Features

One-button super Wi‑Fi extension
Quickly extend your wireless network using the WPS button on your router and the RE button on the extender—no complex setup required.

Compact wall-mounted design
Slim, plug-in form factor fits discreetly into outlets and can be easily relocated without needing reconfiguration.

AC passthrough power socket
Continue using your wall outlet to power other devices—no need to sacrifice plug access for Wi‑Fi coverage.

Dual external antennas
Fixed high-gain antennas enhance wireless signal strength, improve coverage, and reduce Wi‑Fi dead spots for smooth HD streaming and online gaming.

Ethernet bridge functionality
Use the built-in 10/100 Mbps Ethernet port to connect wired devices like smart TVs or game consoles to your Wi‑Fi network.

Smart signal indicator
LED signal strength lights guide you to the optimal extender placement for the best performance and coverage.

Smooth streaming & low latency
Delivers 300 Mbps N-band speed ideal for HD/3D video streaming, VoIP, and light gaming with minimal lag.

Product Specifications

• Wireless standards: IEEE 802.11b/g/n
• Frequency band: 2.4–2.4835 GHz
• Maximum data rates:
  • 11n: up to 300 Mbps
  • 11g: up to 54 Mbps
  • 11b: up to 11 Mbps
• Reception sensitivity:
  • 270 Mbps: –69 dBm@10% PER
  • 54 Mbps: –69 dBm@10% PER
  • 1 Mbps: –91 dBm@8% PER
• Transmit power: <20 dBm (EIRP)
• Ports and buttons:
  • 1 × 10/100 Mbps RJ‑45 Ethernet port
  • RE (Range Extender), Reset, and Power On/Off buttons
• Antennas: 2 × external fixed antennas
• Input power: 100–240 V AC, 50/60 Hz
• Power consumption: Approx. 3 W
• Dimensions: 110 × 65.8 × 75.2 mm
• Wireless security: 64/128/152‑bit WEP, WPA‑PSK, WPA2‑PSK
• Wireless features: WMM QoS, MAC filtering, domain‑name login management
