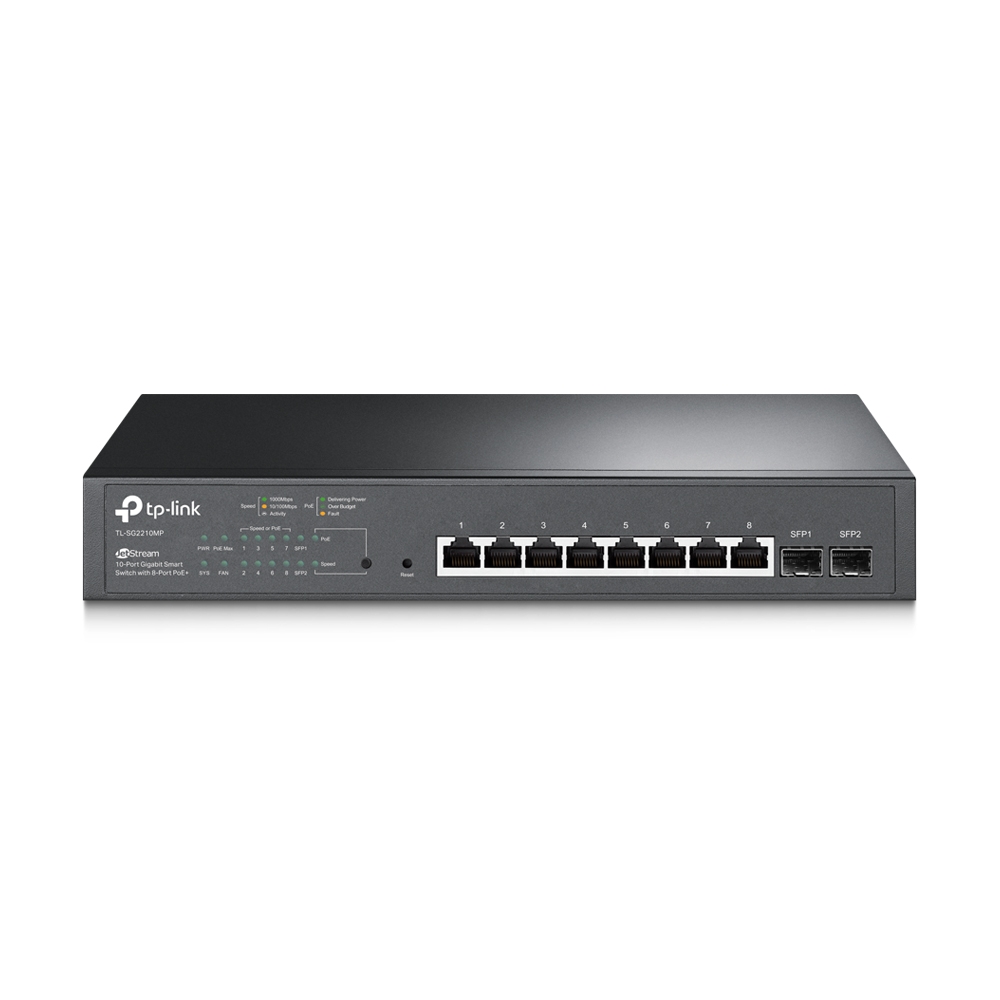

TP-Link TL-SG2210MP 10-Port Gigabit Smart PoE+ Switch

TP-Link TL-SG2210MP (also marketed as JetStream; replaces earlier T1500G-10MPS designations) is a managed 10-port Gigabit smart switch with 8 IEEE 802.3af/at PoE+ copper ports (up to 30W each, 150W total), 2 Gigabit SFP fiber slots, Omada SDN cloud/app integration (ZTP, centralized monitoring), advanced L2/L2+ features including static routing, rich QoS, VLAN segmentation, ACL/security toolset, IPv6 readiness, internal power supply, metal 1U rack/desktop mounting, active fan cooling, and performance specs of 20 Gbps switching capacity with 14.9 Mpps forwarding rate for powering and aggregating surveillance cameras, wireless access points, and IP phones in SME, retail, hospitality, or campus edge deployments.

Product Features

150W Full PoE+ Power on 8 Gigabit Ports

Eight RJ45 Gigabit ports deliver IEEE 802.3af/at PoE+ up to 30W per port with a shared 150W budget, supporting dense deployments of APs, IP cameras, and VoIP phones without external injectors.

Dual Gigabit SFP Fiber Uplinks

Two dedicated Gigabit SFP slots provide flexible fiber or long-distance copper uplinks to core or distribution layers while preserving all eight PoE+ copper ports for endpoints.

Omada SDN Cloud Management & ZTP

Integrates with Omada SDN for centralized cloud/app visibility, zero-touch provisioning, intelligent monitoring, and unified management alongside gateways and APs; also manageable standalone via web, CLI, SNMP, and RMON

Advanced L2/L2+ & Static Routing

Supports static routing, VLAN (802.1Q), Link Aggregation, IGMP/MLD Snooping, DHCP relay options, QoS (L2/L3/L4 priorities, queue scheduling), and jumbo frames to optimize internal traffic flows and segment broadcast domains efficiently.

Comprehensive Security & Access Control

Provides ACL (MAC/IP/time-based), 802.1X, port isolation, DHCP snooping/relay, storm control (broadcast/multicast/unknown unicast), DoS defenses, secure HTTPS/SSH management, and physical security lock support for layered protection.

Intelligent PoE Management & Auto Recovery

PoE power management features include auto reboot (PoE recovery) of unresponsive devices and overload/priority mechanisms to maintain power to critical ports when demand nears the 150W ceiling.

Internal Power Supply, Metal 1U Chassis & Flexible Mounting

Built-in universal AC power supply, durable metal enclosure, and support for desktop, 13″ or standard 19″ 1U rack mounting streamline professional installation and cable organization.

Active Cooling (Single Fan) & Practical Acoustic Profile

Employs a single internal fan for thermal stability under high PoE load; community feedback reports low hum suitable for enclosed cabinets when properly ventilated. (User experience inference based on community discussions.)

IPv6 & Energy-Efficient Standards

Extensive IPv6 management (ACL, QoS, MLD Snooping) plus support for energy-efficient Ethernet (802.3az) protect investments and reduce power draw while easing dual-stack or IPv6-only transitions.

Proven Performance & Scalability

Delivers 20 Gbps switching capacity, 14.9 Mpps forwarding rate, 8K MAC table, 4.1 Mbit buffer, and 9 KB jumbo frame support for smooth multicast video streams and aggregated AP backhaul.

Optimized for Surveillance, Wi-Fi, and VoIP Edge

Design emphasis on PoE budget, fiber uplinks, QoS, and security strategies makes it ideal for converged edge networks (cameras, APs, phones) in retail, hospitality, education, and SMB offices.

Product Specifications

• Model: TL-SG2210MP
• Ports (Copper): 8 x 10/100/1000 Mbps RJ45 (all PoE+; Auto-Negotiation / Auto MDI/MDIX).
• Ports (Fiber Uplinks): 2 x 100/1000 Mbps SFP slots.
• PoE Standard / Per-Port Output: IEEE 802.3af/at (PoE+) up to 30 W per RJ45 port.
• Total PoE Power Budget: 150 W shared across PoE ports (hardware versions V1–V4).
• Switching Capacity: 20 Gbps.
• Packet Forwarding Rate: 14.9 Mpps.
• MAC Address Table: 8K entries (auto learning/aging).
• Packet Buffer Memory: 4.1 Mbit.
•  Jumbo Frame Support: 9 KB.
• Management Modes: Omada SDN (cloud/app), standalone Web GUI, CLI, SNMP (v1/v2c/v3), RMON.
• Key L2/L2+ Features: VLAN (802.1Q), Link Aggregation, IGMP/MLD Snooping, DHCP relay options, static routing, QoS (CoS/DSCP, 8 queues, WRR/SP), storm control.
• Security / Access Control: ACL (MAC/IP/time), 802.1X, port isolation, DHCP snooping, secure HTTPS/SSH, DoS defense, physical security lock.
• PoE Management: PoE recovery (auto reboot of PD), overload & priority allocation.
• Standards Supported: IEEE 802.3i/u/ab/ae/az/z, 802.3x, 802.3af/at, 802.1D/Q/p/s/w/x, 802.3ad (LACP), plus IPv6 feature set.
• Power Supply: Internal 100–240 V AC, 50/60 Hz (no external brick).
• Max Power Consumption (No PD): 12.2 W (typical, 110 V/60 Hz).
• Max Power Consumption (Full PoE Load): Up to ~173.9–175.3 W with 150 W PD load (version dependent).
• Max Heat Dissipation (Full Load): Up to ~539–598 BTU/h (version dependent).
• Fan Quantity / Cooling: 1 internal fan.
• Chassis / Mounting: Metal, desktop, 13″ or 19″ 1U rack mountable.
• Dimensions (W x D x H): 294 x 180 x 44 mm (11.6 x 7.1 x 1.7 in).
• Physical Security: Kensington/lock slot present.
• Operating Environment: 0–50 °C (32–122 °F), 10–90% RH non-condensing (regional spec variations).
• Storage Environment: –40–70 °C (–40–158 °F), 5–90% RH non-condensing.
• Certifications: CE, FCC, RoHS.
• Typical Use Cases: Multi-AP Wi-Fi, IP surveillance, VoIP, small/medium business converged edge.
• Legacy / Replacement Notes: Supersedes earlier model naming (T1500G-10MPS / TL-SL1311MP) in some channels.
• Warranty / Protection: 1Year
• Package Contents: Switch, power cord, rackmount kit, rubber feet, installation/quick guide (omissions may vary by region).
