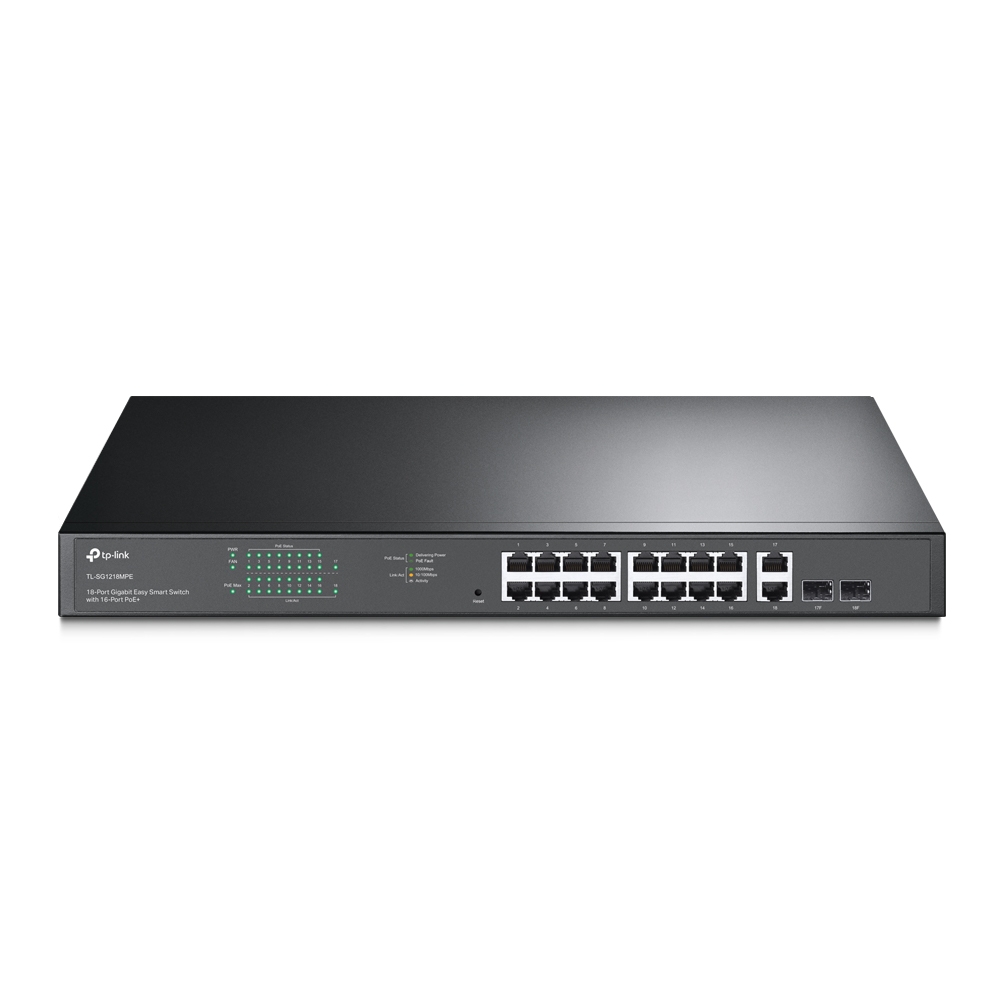

TP-Link TL-SG1218MPE 18-Port Gigabit Easy Smart PoE+ Switch

The TP-Link TL-SG1218MPE is a high-performance network switch designed for cost-effective PoE+ deployment in IP surveillance, Wi-Fi access, and VoIP applications. Featuring 16 PoE+ Gigabit ports and 2 Gigabit RJ45/SFP combo uplinks, it combines Layer 2 management features, intelligent PoE functions, and reliable cooling in a rackmount form factor. With hardware versions offering either 192W or 250W total PoE budget, this smart switch is ideal for powering high-density edge devices like CCTV cameras, access points, and IP phones in offices, retail stores, and hospitality environments.

Product Features

High-Power PoE+ Switching

• 16× PoE+ (802.3af/at) Gigabit ports deliver up to 30W per port
• Dual uplinks (2 RJ45 + 2 combo SFP) ensure flexible connectivity
• Total PoE budget: 192W or 250W (depending on hardware version)

Intelligent PoE Management

• Auto Recovery: Automatically reboots unresponsive PoE devices (PDs)
• PoE Scheduling: Define time-based power delivery to reduce energy use
• Power Limiting & Port Priority: Maintain operation of critical devices when PoE load exceeds budget

Optimized for Surveillance & Wireless Edge
Perfect for multi-camera CCTV, Wi-Fi access point clusters, and VoIP phones. Simplifies infrastructure by eliminating the need for separate power sources.

Smart Layer 2 Management

• Web GUI and Easy Smart Utility for simplified configuration
• VLAN (Port, Tag, MTU), QoS (802.1p/DSCP, 4 priority queues)
• IGMP Snooping (V1/V2/V3) for efficient multicast control
• Static link aggregation, storm control, loop prevention, port mirroring, and cable diagnostics

Reliable Performance Switching

• 36 Gbps switching capacity
• Forwarding rate: Up to 26.78 Mpps (version-dependent)
• 4.1 Mbit packet buffer, 8K MAC address table, and jumbo frame support (9 KB or 10 KB depending on hardware revision)

Built for Continuous Operation

• 1U rackmount metal chassis with dual active cooling fans
• Designed for 24/7 use with documented heat dissipation values
• Fans are audible—plan placement away from noise-sensitive environments

Deployment Flexibility

• Combo SFP slots support fiber uplinks for longer runs or electrical isolation
• Rack mountable (kit included) or desktop installation
• Compatible with standard 100–240V AC power supply

Product Specifications

• Model: TL-SG1218MPE
• Ports:
  • 16 × 10/100/1000 Mbps PoE+ RJ45
  • 2 × 10/100/1000 Mbps RJ45 (non-PoE)
  • 2 × Gigabit SFP combo slots
• PoE Standard: IEEE 802.3af/at
• PoE Budget:
  • 192W (early hardware versions)
  • 250W (newer hardware revisions—confirm version)
• Per-Port Power Output: Up to 30W
• Switching Capacity: 36 Gbps
• Forwarding Rate: 23.8 Mpps (older specs) / 26.78 Mpps (latest hardware)
• MAC Table: 8K
• Buffer Memory: 4.1 Mbit
• Jumbo Frames: 9 KB or 10 KB (hardware dependent)
• VLAN Support: Up to 32 active VLANs (from 4K IDs)
• QoS: 802.1p / DSCP, 4 priority queues, rate limiting
• Multicast & Layer 2 Features: IGMP Snooping, static link aggregation, port mirroring, loop prevention, storm control, cable diagnostics
• PoE Management: Auto Recovery, port priority, scheduling, power limiting
• Cooling: 2 × internal fans
• Power Supply: 100–240V AC, 50/60Hz
• Power Consumption:
  • 192W version: 18.73W idle / 217.22W full load
  • 250W version: 21.4W idle / 296.3W full load
• Heat Dissipation:
  • 192W version: 63.89 BTU/h idle / 741.15 BTU/h full
  • 250W version: 72.97 BTU/h idle / 1010.38 BTU/h full
• Dimensions: 440 × 180 × 44 mm (17.3 × 7.1 × 1.7 in)
• Mounting: Rack-mountable (1U) or desktop
