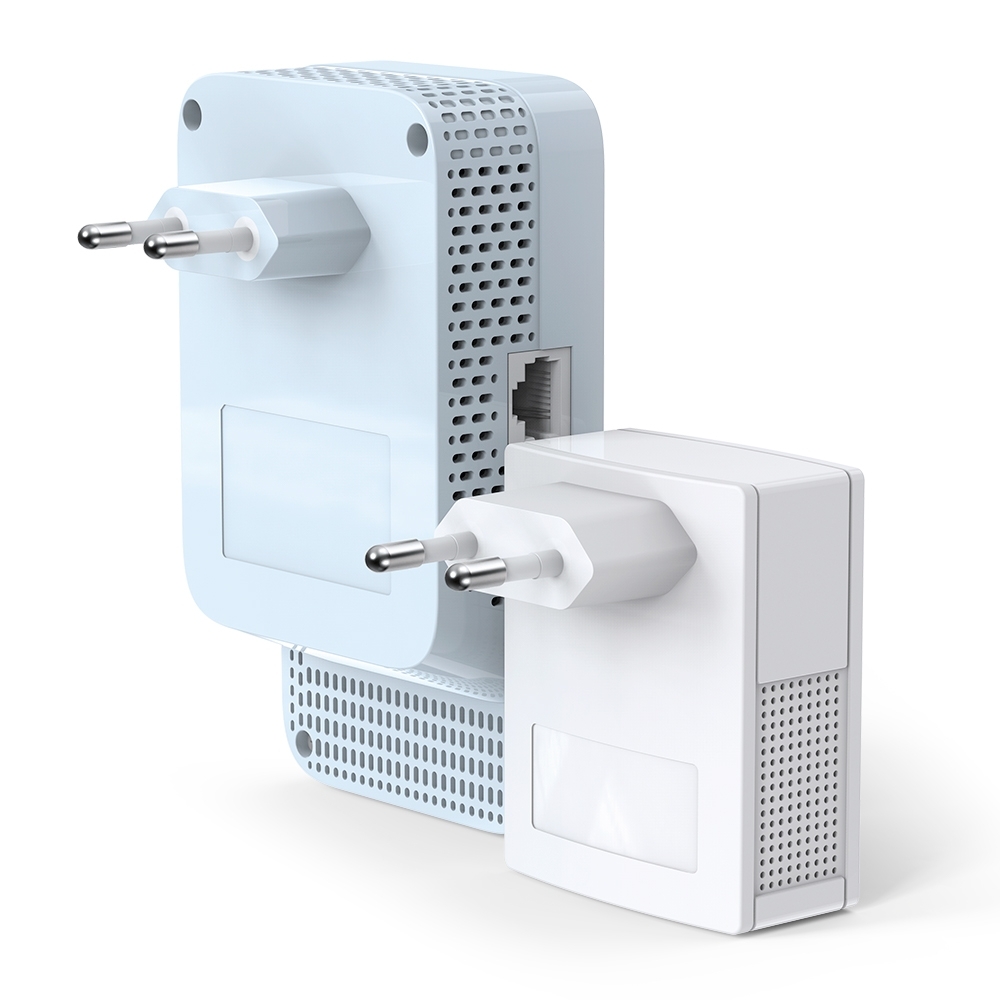

TP‑Link AV1000 Gigabit Powerline ac Wi‑Fi Kit – TL‑WPA7517 KIT

TP-Link TL‑WPA7517 KIT includes a powerline transmitter and a wall-plug extender featuring dual-band AC1200 Wi‑Fi (867 Mbps on 5 GHz + 300 Mbps on 2.4 GHz) and a gigabit Ethernet port, delivering seamless streaming, gaming, and file transfers in rooms without a direct router connection. Setup is plug‑and‑play with powerline pairing, and Wi‑Fi Auto‑Sync ensures consistent login details across your network. Backwards-compatible with HomePlug AV/AV2 and featuring OneMesh support, this kit enables mesh-style roaming and scalable coverage with existing TP‑Link devices.

Product Features

HomePlug AV2 1 Gbps powerline
Achieves up to 1000 Mbps network speed over electrical circuits up to 300 m, ensuring robust wired and Wi‑Fi connections in distant rooms.

Dual‑band AC1200 Wi‑Fi
Combines 867 Mbps on 5 GHz and 300 Mbps on 2.4 GHz for lag‑free HD streaming, gaming, and video conferencing.

Wi‑Fi Auto‑Sync & Wi‑Fi Clone
Automatically mirrors your router’s SSID/password across the extender or synchronizes changes, simplifying setup and ensuring seamless connectivity.

Gigabit Ethernet port
Provides a high‑speed wired connection for smart TVs, consoles, or NAS units; the extender can also operate as a standalone access point.

OneMesh/EasyMesh compatibility
Works with OneMesh/EasyMesh routers and extenders to create a unified mesh network under a single SSID for roaming between devices.

Plug‑and‑play pairing
Set up secure powerline links quickly using the pair buttons—no configuration needed.

Product Specifications

• Powerline speed: up to 1000 Mbps (HomePlug AV2, up to 300 m over line)
• Wi‑Fi: dual-band 802.11ac; 300 Mbps @ 2.4 GHz, 867 Mbps @ 5 GHz
• Ethernet ports: each unit includes 1 × gigabit port (10/100/1000 Mbps)
• Security: 128‑bit AES for powerline; WPA‑PSK/WPA2‑PSK/WEP for Wi‑Fi
• Management: tpPLC mobile app and Windows utility; LED on/off switch, pair, reset, Wi‑Fi clone buttons
• Power usage: TL‑WPA7517 uses up to 11 W; TL‑PA7017 uses up to 2.9 W
• Dimensions: TL‑WPA7517: 69.5 × 35 × 124.1 mm; TL‑PA7017: 52 × 28.5 × 65 mm
• Operating conditions: Temperature 0–40 °C, humidity 10–90 %, includes CE/RoHS certification
• Package includes: TL‑WPA7517 extender, TL‑PA7017 transmitter, two Ethernet cables, installation guide
