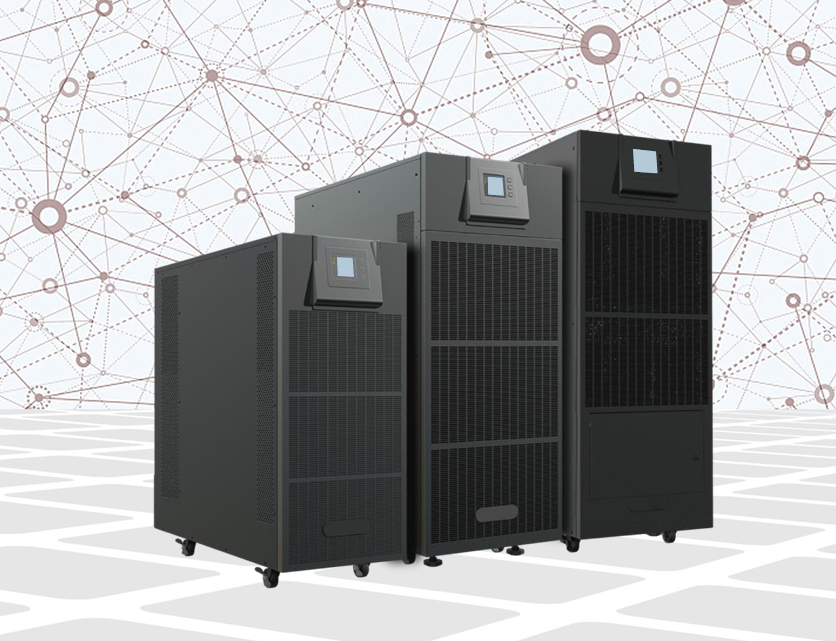

Mecer 200kVA ME-200000-GTU II 3/3 Transformerless UPS

Mecer ME-200K-GTU III 3/3 Galleon III 200KL is a high-capacity Power Back-up UPS engineered to deliver clean, continuous, and stable power to mission-critical systems. With a true online double-conversion architecture, 200kVA output, and advanced management features, this Uninterruptible Power Supply in Kenya is tailored for demanding environments like data centers, industrial facilities, and healthcare institutions. Its transformaless design ensures improved energy efficiency, reduced footprint, and optimized performance.

Product Features

True Online Double Conversion Technology
Provides seamless power transfer with zero transfer time, ensuring uninterrupted operation during voltage fluctuations, sags, and blackouts.

High Power Capacity – 200kVA / 180kW
Robust enough to support large-scale enterprise infrastructure, production environments, and centralized backup systems.

Wide Input Voltage Range
Operates from 138–485Vac (at 40% load), ensuring resilience even in poor grid conditions, ideal for deployment across Kenya’s variable power landscape.

High Efficiency – Up to 96%
Energy-efficient operation lowers electricity costs while minimizing heat output and reducing cooling needs.

Flexible Battery Configuration
Supports 30 to 50 battery units (±180V to ±300V DC) for tailored backup runtimes based on application needs.

Advanced Overload Handling
Withstands up to 150% overload for 1 minute in inverter mode, ensuring operational continuity under peak demand.

Low Harmonic Distortion
THDi ≤3% on input and THDv ≤3% on output ensures clean power for sensitive electronic systems.

Zero Transfer Time
Instantaneous switching between power modes guarantees no downtime for critical applications.

Redundancy & Scalability
Supports parallel operation of up to 6 units, enabling N+1 redundancy and capacity expansion without compromising uptime.

Intelligent Monitoring and Control
Equipped with USB, RS232, RS485, dry contact, and SNMP (optional) communication interfaces, plus a remote LCD for local monitoring.

Generator Compatibility
Works smoothly with generators via a power walk-in function, minimizing start-up current draw and harmonics.

Product Specifications

• UPS Type: Online double-conversion (transformaless)
• Rated Capacity: 200kVA / 180kW
• Input Voltage: 380/400/415Vac (3Ph + N + PE)
• Input Voltage Range:
  • 138–485Vac at 40% load
  • 305–485Vac at full load
• Input Power Factor: ≥ 0.99
• Input THDi: ≤3% (linear load)
• Bypass Voltage Range: Configurable ±10%, ±15%, ±20%, ±25%
• Output Voltage: 380/400/415Vac (3Ph + N + PE)
• Voltage Regulation: ±1%
• Output Power Factor: 0.9
• Crest Factor: 3:1
• Output THDv: ≤3% (nonlinear load)
• Overload Capacity (Inverter Mode):
  • ≤110% for 60 mins
  • ≤125% for 10 mins
  • ≤150% for 1 min
• Efficiency: 96%
• Transfer Time: 0ms (seamless switching)
• Battery Voltage Range: ±180V to ±300V DC
• Charging Current: Up to 60A (adjustable)
• Communication Ports: USB, RS232, RS485, dry contact, intelligent slot, parallel port
• Optional Cards: SNMP, Relay
• Remote Monitoring: Supported with remote LCD panel
• Operating Temperature: 0°C – 40°C
• Storage Temperature: -25°C to 55°C
• Humidity: 0–95% non-condensing
• Altitude: <1500m without derating
• Noise Level: <65 dB
• Certifications: IEC/EN62040-1, IEC/EN62040-2, RoHS, EMC compliant

Applications

• Data Centers: Ensures uninterrupted performance of servers, storage arrays, and mission-critical networking systems.
• Industrial Operations: Stabilizes power to automation systems, PLCs, and production lines to reduce costly downtime.
• Medical Facilities: Delivers continuous power to life-support systems, diagnostic machines, and hospital IT infrastructure.
• Telecommunications: Keeps voice and data networks operational, maintaining national and enterprise-level communications.
• Banking and Financial Systems: Prevents outages in transaction processing, ATMs, and branch systems.
• Public Infrastructure: Powers government services and utilities where continuous operation is non-negotiable.

Key Benefits

• Premium-grade Power Back-up UPS for high-stakes environments.
• Reliable Uninterruptible Power Supply in Kenya, engineered to thrive in demanding power conditions.
• Scalable solution supporting redundancy and expansion via parallel configuration.
• Intelligent control with remote diagnostics, real-time alerts, and configurable parameters.
• Long-term investment with lower operational costs through superior energy efficiency.
