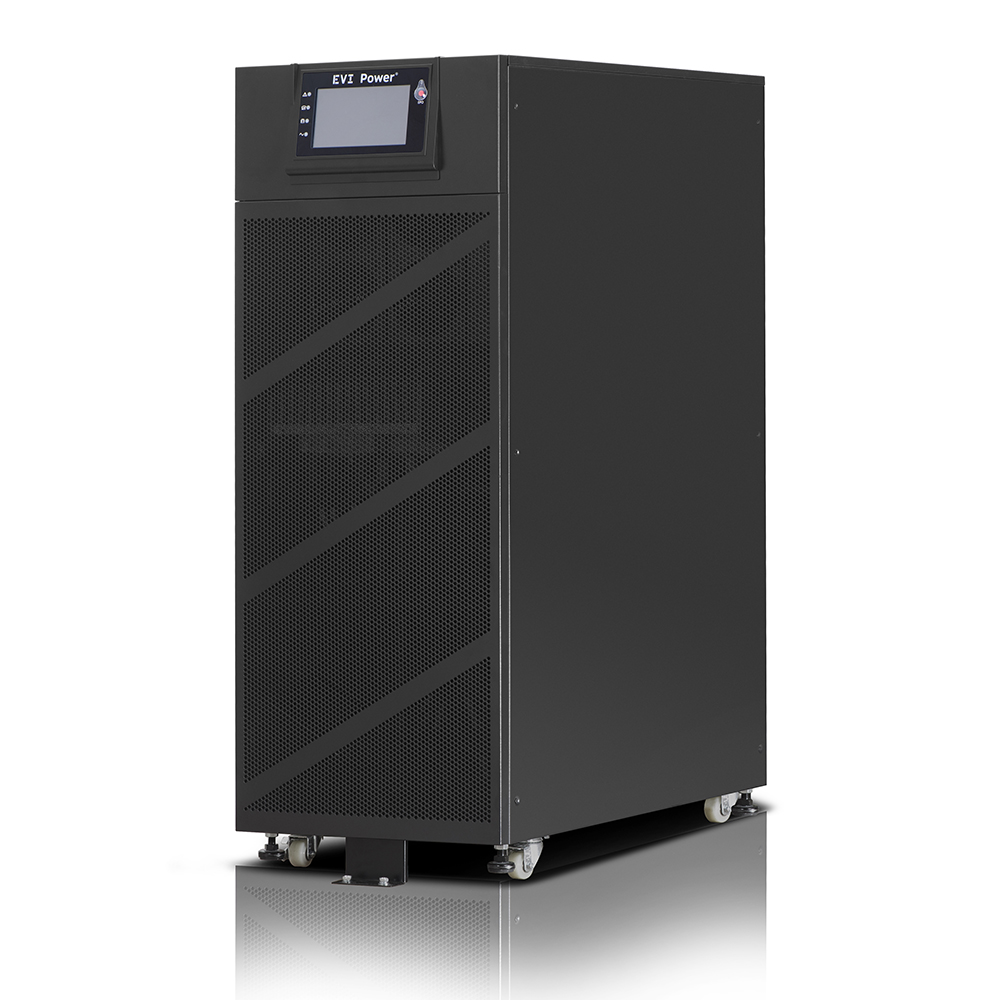

EVI 10000VA / 9000W Tower Online Single Phase UPS

EVI 10000VA / 9000W Tower Online Single Phase UPS (EP-UPS10000Y11OT) is a high-performance uninterruptible power supply designed for mission-critical applications that demand maximum reliability, efficiency, and advanced protection. Built with online double conversion and DSP control technology, it ensures clean and stable power delivery to sensitive equipment, while features like N+X parallel redundancy, wide input range, and generator compatibility make it an ideal solution for data centers, telecom systems, and industrial environments.

Product Features

N+X Parallel Redundancy

Ensures uninterrupted operation by allowing multiple UPS systems to run in parallel for increased capacity and reliability.

Online Double Conversion with DSP Control

Provides clean and stable power output by continuously converting AC to DC and back to AC, ensuring protection against power fluctuations and disturbances.

High Output Power Factor (0.9 PF)

Delivers more usable power to connected equipment, making it ideal for servers, network devices, and heavy-duty loads.

Wide Input Voltage and Frequency Range

Supports input voltage from 120 – 276 Vac and frequency range of 45 – 55 Hz (50 Hz) / 54 – 66 Hz (60 Hz), ensuring stable performance even in unstable power environments.

Generator Compatibility

Seamlessly integrates with generators for continuous backup power during outages.

Eco Mode for Energy Efficiency

Optimizes energy consumption by automatically switching to bypass mode when input power quality is stable.

Self-Testing on Startup

Performs automatic self-diagnostics at startup to ensure system readiness and reliability.

Flexible Communication Options

Comes with RS232 and USB ports, and supports optional SNMP, parallel, or relay cards for enhanced monitoring and control.

Cold Start Capability

Allows the UPS to start directly from battery power without a mains connection.

Rotating LCD Display

User-friendly LCD interface with a rotating screen for flexible installation and real-time monitoring.

Terminal Port Connectivity

Equipped with input and output terminal ports for easy integration into electrical systems.

Warranty Coverage

Backed by a 2-year warranty (1 year on battery) for peace of mind and reliable service.

Product Specifications

• Capacity: 10000VA / 9000W
• Model: EP-UPS10000Y11OT
• Topology: Online double conversion with DSP control
• Input Current Harmonic: <3%
• Output Power Factor: 0.9 PF
• Input Voltage Range: 120 – 276 Vac
• Input Frequency Range: 45 – 55 Hz (50 Hz) / 54 – 66 Hz (60 Hz)
• Supports Generator Input: Yes
• Eco Mode: Yes
• Cold Start: Supported
• Communication Ports: RS232, USB
• Optional Cards: SNMP card, Parallel card, Relay card
• Display: Rotating LCD Display
• Terminal Ports: Input / Output
• Warranty: 2 Years (1 Year on Battery)

Applications

EVI 10000VA / 9000W Tower Online Single Phase UPS is ideal for critical power protection across multiple industries and environments, including:

• Data Centers & Server Rooms – Ensures uninterrupted operation of servers, storage systems, and networking equipment.
• Telecommunication Systems – Protects base stations, switches, and transmission equipment from power disturbances.
• Industrial Automation – Provides reliable backup for PLCs, CNC machines, and sensitive control systems.
• Healthcare & Medical Equipment – Maintains continuous operation of diagnostic devices, laboratory instruments, and life-support systems.
• Financial Institutions – Safeguards banking systems, ATMs, and transaction servers from downtime.
• Educational & Research Institutions – Protects laboratories, IT infrastructure, and e-learning platforms.
• Government & Corporate Offices – Keeps communication systems, security devices, and IT infrastructure running during outages.

Frequently Asked Questions (FAQs)

Q1: What does online double conversion mean?
A: Online double conversion continuously converts incoming AC power to DC and then back to AC, ensuring clean, stable, and uninterrupted power to connected equipment.

Q2: Can this UPS work with a generator?
A: Yes, the UPS is fully compatible with generators, making it suitable for environments with frequent or extended power outages.

Q3: What is the advantage of the 0.9 power factor?
A: The high output power factor (0.9 PF) allows the UPS to deliver more usable power, making it ideal for powering modern servers, networking devices, and sensitive electronics.

Q4: Does the UPS support parallel operation?
A: Yes, the UPS supports N+X parallel redundancy, allowing multiple units to work together for greater capacity and system reliability.

Q5: Can the UPS start without mains power?
A: Yes, it features a cold start function, which enables it to start directly from battery power if no AC mains is available.

Q6: What communication options are available?
A: Standard communication ports include RS232 and USB. Optional cards such as SNMP, relay, and parallel cards are also supported for advanced monitoring.

Q7: What kind of warranty does it come with?
A: The UPS is backed by a 2-year warranty (1 year on battery), ensuring reliability and after-sales support.

Q8: Where can this UPS be used?
A: It is ideal for data centers, telecom systems, healthcare facilities, industrial automation, banking institutions, and corporate IT infrastructure.
