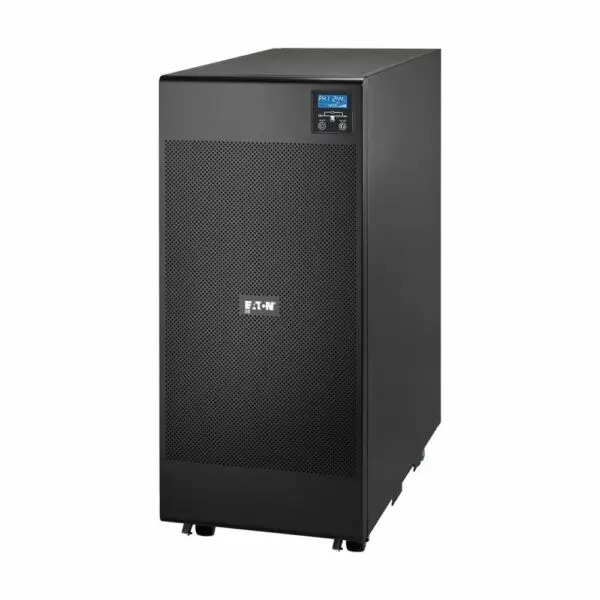

Eaton 9E 15000i 15kVa 12000W Online UPS (9E15Ki)

The Eaton 9E 15000i 15kVA / 12kW Online UPS (9E15KI) offers robust, high-capacity power protection for critical business and industrial applications. Designed to ensure continuous uptime, this UPS delivers clean, stable power to servers, network equipment, and sensitive electronics, preventing downtime caused by power fluctuations or outages. Its online double-conversion technology guarantees zero transfer time to battery power, making it ideal for medium to large data centers, server rooms, and industrial environments. With scalable battery options, advanced monitoring, and high efficiency, the Eaton 9E15KI combines reliability and operational cost savings in a compact, tower form factor.

Product Features

Online Double-Conversion Technology

Ensures uninterrupted power supply by isolating equipment from surges, sags, and other power disturbances.

High-Capacity Performance

Delivers 15kVA / 12kW output, suitable for medium to large IT infrastructures and industrial equipment.

Advanced Monitoring and Management

Equipped with an LCD display and network management capabilities, allowing remote monitoring and control of UPS performance.

Scalable Battery Runtime

Supports extended runtime with optional external battery modules to match operational needs.

Automatic Voltage Regulation (AVR)

Protects connected equipment from overvoltage and undervoltage without drawing on the battery.

Compact and Robust Tower Design

Optimized for space efficiency while providing high reliability in demanding environments.

Product Specifications

• Capacity: 15kVA / 12kW
• Topology: Online double-conversion
• Input Voltage Range: 160–300V
• Output Voltage: 230V
• Output Frequency: 50/60 Hz (auto-sensing)
• Battery Type: Sealed lead-acid (VRLA)
• Backup Time: Configurable with external battery modules
• Efficiency: Up to 95% in high-efficiency mode
• Communication Ports: USB, RS-232, optional SNMP card
• Dimensions (H x W x D): 820 x 300 x 550 mm
• Weight: 120 kg
