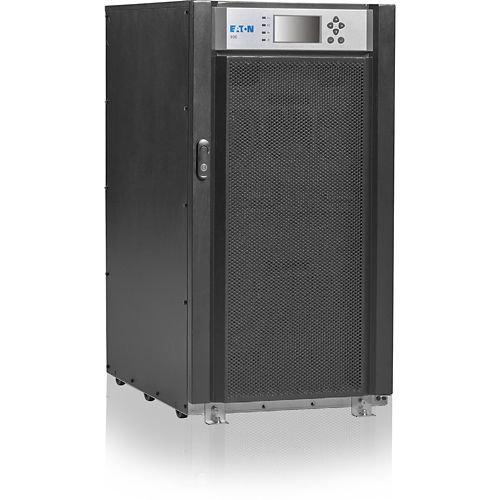

Eaton 93E UPS 15kVA Online Tower UPS (93E15KMBSBI)

Eaton 93E UPS 15kVA Tower Online UPS delivers reliable and efficient three-phase power protection for data centers, IT facilities, and critical infrastructure. Designed with advanced double-conversion topology, this uninterruptible power supply ensures continuous uptime, high efficiency of up to 98% in Eco Mode, and superior power quality with minimal voltage distortion. With integrated internal batteries, an internal maintenance bypass switch, and parallel capability for redundancy or capacity, the Eaton 93E is built to safeguard mission-critical systems against outages, surges, and fluctuations while optimizing energy costs.

Product Features

High-Efficiency Performance

Achieves up to 98% efficiency in Eco Mode and 94% in online double-conversion mode, reducing energy consumption and operational costs.

Reliable Power Protection

With a power factor of 0.9 and output capacity of 15kVA/13.5kW, it delivers stable and clean power to critical IT equipment.

Advanced Battery Management (ABM)

Equipped with ABM technology for optimized battery charging, extending battery life and improving reliability.

Integrated Maintenance Bypass

Features an internal maintenance bypass switch, allowing uninterrupted power supply during service or maintenance.

Flexible Scalability

Supports parallel configuration with up to 4 units for increased capacity or redundancy.

User-Friendly Interface

Comes with a graphical LCD display for real-time monitoring and intuitive UPS management.

Comprehensive Communication Options

Includes USB and RS232 interfaces plus slots for communication cards, enabling seamless network management.

Robust and Certified Design

CE Marked, RoHS Compliant, and certified to IEC/EN 62040-1, IEC/EN 62040-2, and EN 62040-3, manufactured under ISO 9001 and ISO 14001 standards.

Product Specifications

• Product Name: Eaton 93E UPS
• Catalog Number: 93E15KMBSBI
• EAN: 3553340693083
• Topology: Online double conversion
• Phase Input/Output: 3-phase in / 3-phase out
• kVA Rating: 15 kVA
• Wattage: 13.5 kW (13,500 W)
• Output Power Factor: 0.9
• Efficiency:
  • Online: 94%
  • Eco Mode: 98%
• Input Voltage: 380–415 V (default 400 V)
• Output Voltage: 380–415 V programmable
• Input Frequency: 50–60 Hz
• Output Frequency: 50 Hz (programmable 50/60 Hz)
• Voltage Distortion (Linear Load): ≤ 2%
• Runtime:
  • At half load: 27 minutes
  • At full load: 11 minutes
• Battery Type: Internal, sealed lead-acid with ABM technology
• External Battery Connection: Hardwired
• User-Replaceable Batteries: No
• Internal Maintenance Bypass: Yes
• Hot-Swappable Modules: No
• Parallel Capability: Up to 4 units
• Communication Interfaces: USB, RS232, optional communication cards
• User Interface: Graphical LCD
• Construction Type: Free-standing tower model
• Color: Black
• Audible Alarms: Yes
• Auto Shutdown Function: Yes
• Applications: Data centers, IT facilities, industrial environments
• Package Contents: UPS, user manual, safety instructions
• Certifications & Compliance: CE, RoHS, IEC/EN 62040-1, IEC/EN 62040-2, EN 62040-3
• Dimensions (L x W x H): 710 × 500 × 960 mm

Weight: 312 kg
