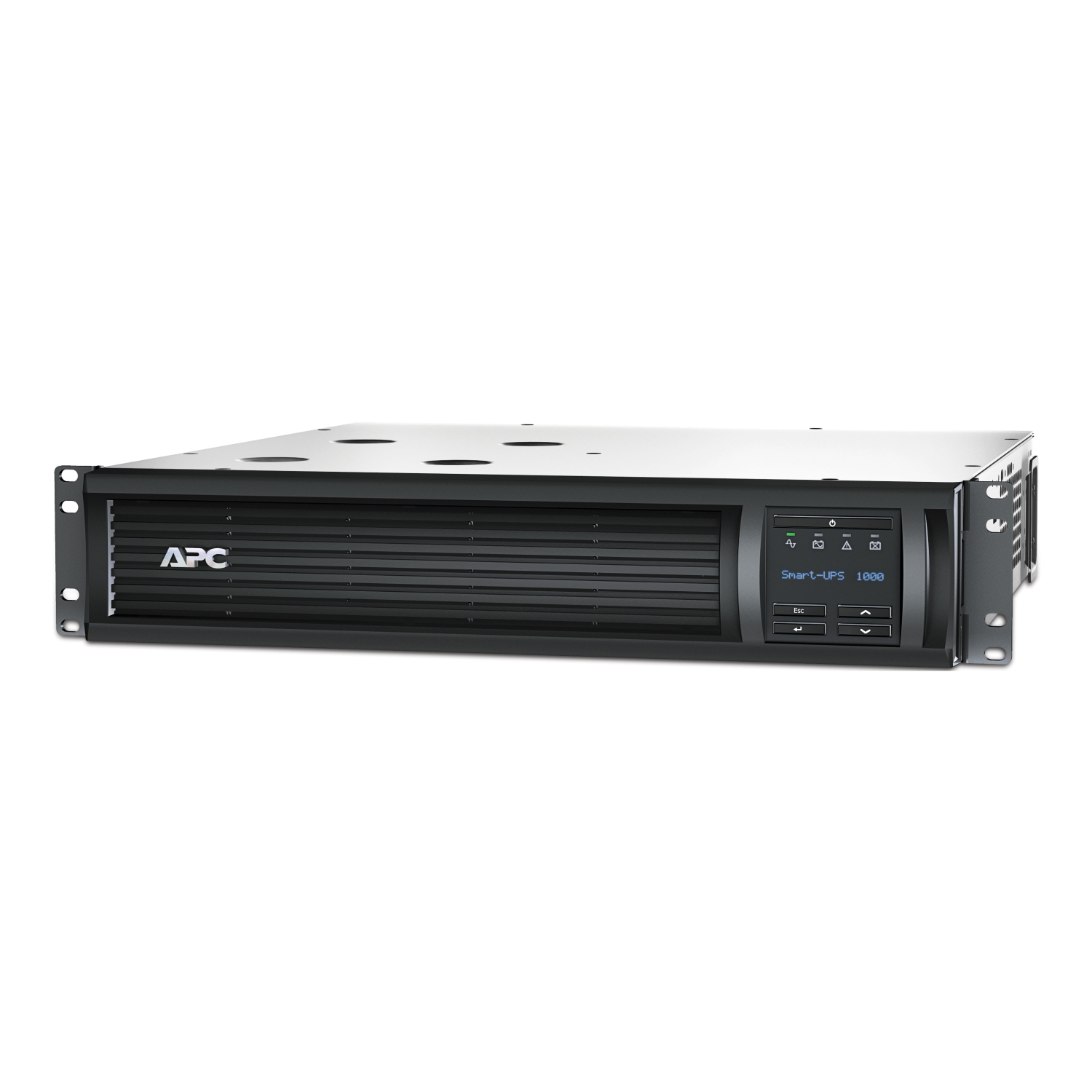

APC SMT1000RMI2UC 1000VA Rackmount Smart-UPS LCD 230V with SmartConnect

APC Smart-UPS SMT1000RMI2UC is a 1.0kVA / 700W line‑interactive, pure sine wave, 2U rackmount uninterruptible power supply engineered to protect critical servers, storage, network switches, POS, and edge IT gear in demanding power conditions. It combines automatic voltage regulation (AVR) to correct brownouts and overvoltage without draining the battery, intuitive front‑panel LCD control, cloud‑enabled APC SmartConnect remote monitoring, SmartSlot expansion for network management cards, and energy‑saving high‑efficiency operation—all in a compact chassis that fits standard 19‑inch racks. User‑replaceable lead‑acid batteries and robust surge/noise filtering help ensure long service life and reliable uptime for business‑critical systems.

Product Features

Line‑interactive topology with AVR voltage regulation

Automatically boosts low voltage and trims high voltage without switching to battery, preserving runtime while protecting sensitive IT loads in regions with unstable mains.

Pure sine wave output for server‑grade compatibility

Delivers a high‑quality sine waveform recommended for equipment with active PFC power supplies (common in servers and networking gear), helping prevent nuisance shutdowns.

APC SmartConnect cloud monitoring

Built‑in network port enables secure, cloud‑based remote power monitoring, firmware updates, proactive email alerts, and recommended corrective actions—no additional gateway required.

SmartSlot expansion for advanced management

Add an optional APC Network Management Card, environmental sensors, or other accessories to integrate UPS status, graceful shutdown, and remote control into data center or edge management platforms (e.g., EcoStruxure IT, PowerChute Network Shutdown).

Intuitive LCD status and configuration interface

Front‑panel multifunction LCD provides quick visibility into input/output voltage, load %, battery capacity, alarms, and key settings; local navigation keys allow fast configuration without a PC.

Network‑grade surge & noise protection

Full‑time multi‑pole noise filtering and surge suppression help shield connected electronics from lightning, spikes, and line noise, supporting higher availability in harsh power environments.

High‑efficiency Green Mode option

Selectable operating mode improves efficiency and reduces heat output and utility costs while maintaining safe protection levels—useful in energy‑constrained edge racks.

User‑replaceable, hot‑swappable battery cartridge

Field‑replaceable lead‑acid battery (APCRBC157) lets you restore runtime without taking the load offline for extended periods, reducing service downtime.

Flexible IEC connectivity for global deployments

Ships with IEC‑320 C14 input, four IEC C13 battery‑backup outlets, and two IEC jumper leads to simplify power distribution within rack enclosures across multi‑region installs.

Rackmount hardware and setup guides included

Comes with rackmount support rails, installation guide, documentation media, and USB cable to streamline deployment in 19‑inch server racks.

Product Specifications

• Capacity: 1000VA / 700W line‑interactive UPS.
• Nominal output voltage: 230V (user‑selectable 220 / 230 / 240V).
• Output waveform: Sine wave; <5% voltage distortion.
• Output frequency (sync to mains): 50/60 Hz ±3 Hz.
• Transfer time: 6 ms typical, 10 ms max.
• Input connection: IEC‑320 C14; single power cord.
• Input voltage range (main operation): 160–286V (adjustable 151–302V).
• Input frequency: 50/60 Hz auto‑sensing.
• Output receptacles: 4 × IEC C13 (battery backup) + 2 × IEC jumper outlets.
• Communication ports: USB, RJ‑45 serial, SmartSlot; SmartConnect (cloud).
• Control panel: Multifunction LCD status & navigation keys.
• Battery type: Sealed lead‑acid (user replaceable).
• Replacement battery cartridge: APCRBC157 (1 required).
• Typical recharge time: ~3 hours to full charge (environment dependent).
• Estimated battery life: Approx. 4–6 years under recommended conditions.
• Runtime (reference): ~8.7 minutes at full 700W load; ~31 minutes at ~50% load (published channel estimates; actual runtime varies by load & age).
• Surge energy rating: 459 Joules; full‑time multi‑pole noise filtering.
• Rack height: 2U.
• Dimensions (H × W × D): ~86 mm × 432 mm × 477 mm (8.6 cm × 43.2 cm × 47.7 cm). Minor dimensional variations reported by resellers; use official drawing for rack fit.
• Net weight: ~22.5 kg (channel listings up to ~28 kg packed; check shipping spec).
• Operating temperature: 0–40 °C; 0–95% RH (non‑condensing).
• Storage temperature: −15 to 45 °C; 0–95% RH (non‑condensing).
• Operating elevation: 0–3048 m.
• Audible noise (1 m): ~45 dBA.
• Approvals: EN/IEC 62040‑1, EN/IEC 62040‑2, CSA, EAC, RCM, VDE/UL listings regionally.
• Standard warranty: 2‑years
