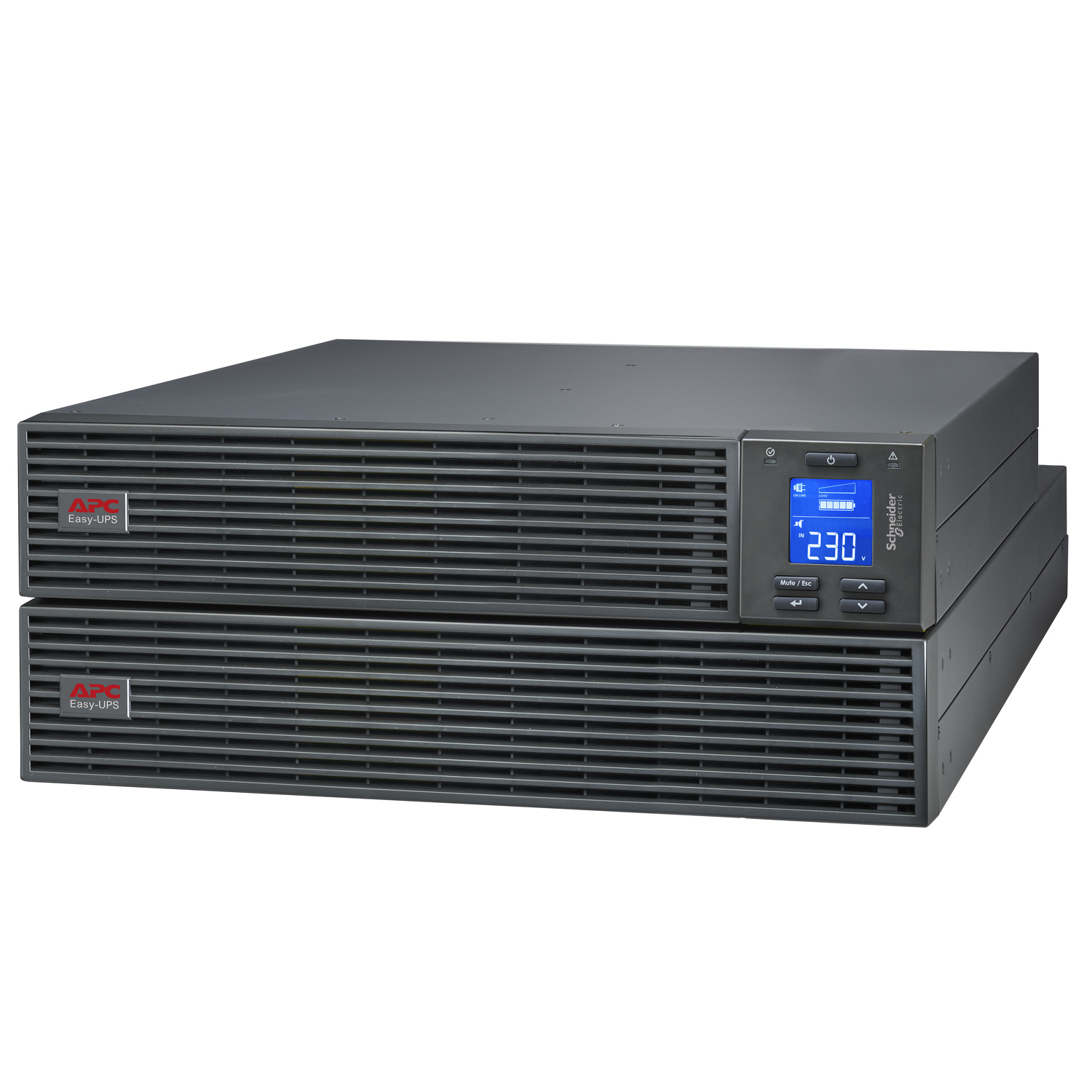

APC Easy UPS On-Line SRV Rackmount 3000VA 230V with Rail Kit (SRV3KRILRK)
APC Easy UPS On-Line SRV3KRILRK is a 3kVA / 2400W double-conversion online uninterruptible power supply built in a robust 4U rackmount form factor for mission‑critical servers, networking, storage, and edge IT deployed in regions with unstable mains power. Delivered as an extended‑runtime model with an external battery pack and rail kit included, it provides clean sine‑wave output, wide input voltage tolerance, intelligent battery management, ECO (high‑efficiency) mode, generator compatibility, and an intuitive LCD interface for fast configuration. While the standard SRV3KRILRK ships with sealed lead‑acid batteries, organizations seeking lower maintenance, faster recharge, and longer lifecycle can move to the lithium‑ion variant (model SRVL3KRILRK), giving you a forward path to reduced total cost of ownership.
Product Features
Double-conversion online power protection
Continuous AC‑to‑DC‑to‑AC conversion completely isolates connected equipment from voltage sags, surges, frequency drift, and noise, delivering stable output even when input power is poor.
Wide input voltage window reduces unnecessary battery use
Designed to ride through broad input swings (up to 160–280 V at full load; extended down to 110 V at lighter load) so the UPS does not constantly transfer to battery in regions with fluctuating grids, preserving battery life.
Pure sine‑wave output with low harmonic distortion
Provides high‑quality power (sine wave; THD ~3%) suitable for active PFC power supplies and sensitive electronics.
Extended runtime scalability
Ships with an external battery pack and supports the addition of further external packs (SRV72RLBP‑9A and related families) to scale runtime from minutes to multiple hours for critical loads. Runtime examples in APC literature show substantial gains as packs are added.
Intelligent battery management & fast recharge
Precision charging helps maximize battery performance and service life; typical recharge window shown in channel specs is about 4–5.5 hours depending on conditions.
ECO / Green high‑efficiency operating mode
User‑selectable energy‑saving mode (ECO) increases operational efficiency when power conditions permit, helping cut heat and utility costs.
Generator compatible
Designed to provide clean, uninterrupted output while running on generator input—important for facilities that depend on backup gensets during utility outages.
Automatic and manual internal bypass
Built‑in bypass circuitry maintains power to connected loads if the UPS electronics require service or are overloaded, improving availability during abnormal conditions.
LCD status and control interface
Multifunction front‑panel LCD/LED display gives at‑a‑glance status plus local configuration access (input/output voltage, load, battery status, alarms, mode selection, etc.).
Flexible communications: USB, RS‑232, SmartSlot
Standard USB and serial ports enable local management and graceful shutdown; an intelligent/SmartSlot supports optional network, Modbus, or dry‑contact cards (e.g., AP9544, SRVSMB001) for remote monitoring and integration with EcoStruxure IT or third‑party platforms.
Field accessories & rail kit included
Bundled rack rails, mounting brackets, power cables (C19‑to‑Schuko, C13‑to‑C14), USB, RS‑232, external battery pack cabling, and hardware streamline deployment in standard 19‑inch racks.
Lithium‑ion upgrade path (SRVL3KRILRK)
Need longer battery life, faster recharge, and better performance at higher temperatures? Schneider Electric’s lithium‑ion Easy UPS model SRVL3KRILRK offers those advantages versus traditional VRLA, providing more usable watt‑hours and reduced battery replacement cycles. Consider specifying the lithium version for edge sites where maintenance access is limited.
Product Specifications
- Power capacity: 3000 VA / 2400 W (0.8 PF nominal real output; extended runtime model literature also references 2700 W max in some regional datasheets—verify regionally).
- Topology: Double-conversion online (continuous isolation).
- Nominal output voltage: 230 V (user selectable 220 / 240 V).
- Nominal input voltage: 230 V (supports 220 / 240 V).
- Input voltage limits: 160–280 V at full load; down to 110 V at reduced load (brochure shows 180–300 V full / 105–300 V light for some KIL/KRIL variants—range varies by sub‑SKU; consult install guide for site planning).
- Input frequency: 40–70 Hz auto sensing.
- Output frequency: 50/60 Hz ±3 Hz (sync to mains) or tighter regulation on battery.
- Waveform: Pure sine wave.
- Harmonic distortion: Approximately 3% (online mode).
- Efficiency: Up to ~88% in double‑conversion mode; higher in ECO mode (brochure cites up to low‑90%+ depending on model).

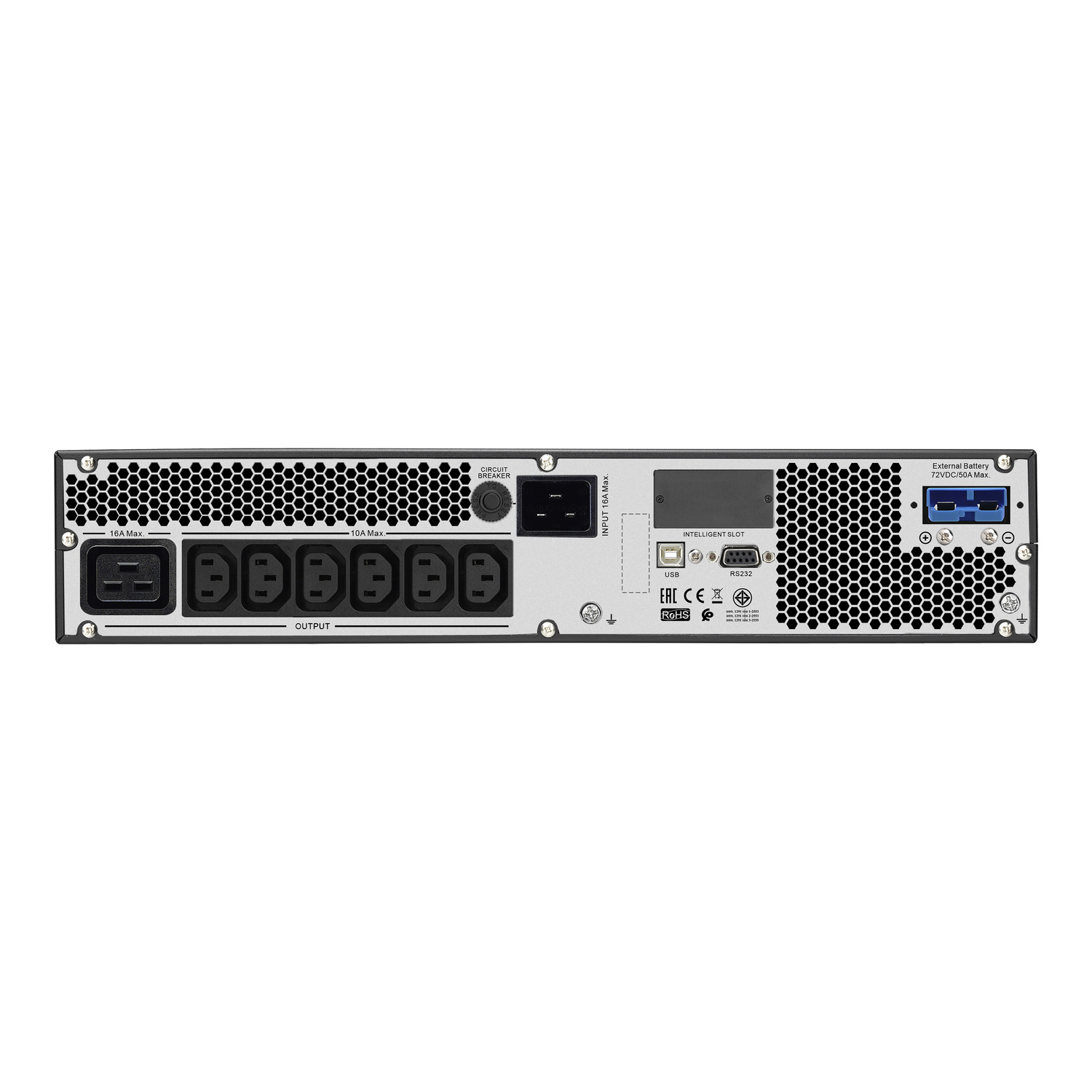

- Output connections: 6 × IEC 60320 C13, 1 × IEC 60320 C19.
- Input connection: IEC 60320 C20 (regional cordsets supplied).
- Included equipment: C19‑to‑Schuko cord, C13‑to‑C14 cord, USB cable, RS‑232 configuration cable, rack brackets, rack support rails, external battery pack, battery cable (contents may vary by region).
- Battery type (standard SRV3KRILRK): Sealed lead‑acid; maintenance‑free, leak‑proof design.
- Battery voltage: 72 V nominal (6 × 12 V blocks in series in VRLA configuration).
- Typical recharge time: ~4–5.5 hours to 90% (site conditions dependent).
- Estimated battery life: 3–5 years for VRLA under recommended conditions.
- Runtime reference (internal + included external pack): Channel data shows ~30 min at half load and ~12–13 min at full load for base extended‑runtime kit; scalable with additional packs (see runtime tables in brochure).
- Internal bypass: Automatic and manual.
- Crest factor: 3:1 (handles high inrush loads).
- Communications: USB, RS‑232; 1 × SmartSlot for network / Modbus / dry‑contact cards.
- Alarm indicators: On‑battery, low battery, overload; audible tones plus panel indicators.
- Control panel: Multifunction LCD status and control console.
- Rack height: 4U.
- Dimensions (H x W x D): 17.2 cm x 43.7 cm x 63.2 cm.
- Net weight (UPS chassis + included battery module set): ~52 kg (varies with battery pack revision).
- Acoustic noise: ~50 dBA at 1 m.
- Operating environment: 0–40 °C; 0–95% relative humidity, non‑condensing; up to 3000 m altitude.
- Storage environment: -20–50 °C; 0–95% RH non‑condensing.
- Surge energy rating: 600 J.
- IP rating: IP20.
- Certifications: CE, UKCA, EAC, TISI; compliant with EN/IEC 62040‑1 safety and 62040‑2 electromagnetic standards (regional listings apply).
- Warranty: 2‑year repair or replace standard (region dependent; extended service packs available).
Lithium Battery Note: If your requirement explicitly calls for a lithium‑ion battery build, specify Schneider Electric part number SRVL3KRILRK (the “L” after SRV denotes the lithium range). This lithium variant delivers longer runtime, faster recharge, and improved usable capacity versus traditional VRLA Easy UPS units—advantages that lower maintenance visits and total cost of ownership at distributed edge and branch locations.
