APC Smart‑UPS C 3000VA Rackmount LCD 230 V (SMC3000RMI2U)

APC Smart‑UPS C SMC3000RMI2U is a robust 3 kVA / 2.1 kW line‑interactive, pure sine‑wave rackmount UPS, engineered to safeguard entry-level servers, network infrastructure, point-of-sale systems, voice-over-IP, and small data centers against power interruptions. It features automatic voltage regulation (AVR) to correct over/undervoltage without draining batteries, an intuitive graphic LCD for status and settings, and integrated USB and serial communications. Designed for seamless integration in 19″ racks, it offers clean power, swift transfer times, and reliable battery backup to ensure operational continuity.

Product Features

Line-interactive architecture with AVR

Automatically corrects voltage fluctuations (180–287 V range) without engaging battery, preserving runtime and protecting connected equipment.

Pure sine-wave output

Delivers low-distortion sinusoidal power (<5% THD) suitable for PFC-equipped servers and sensitive electronics.

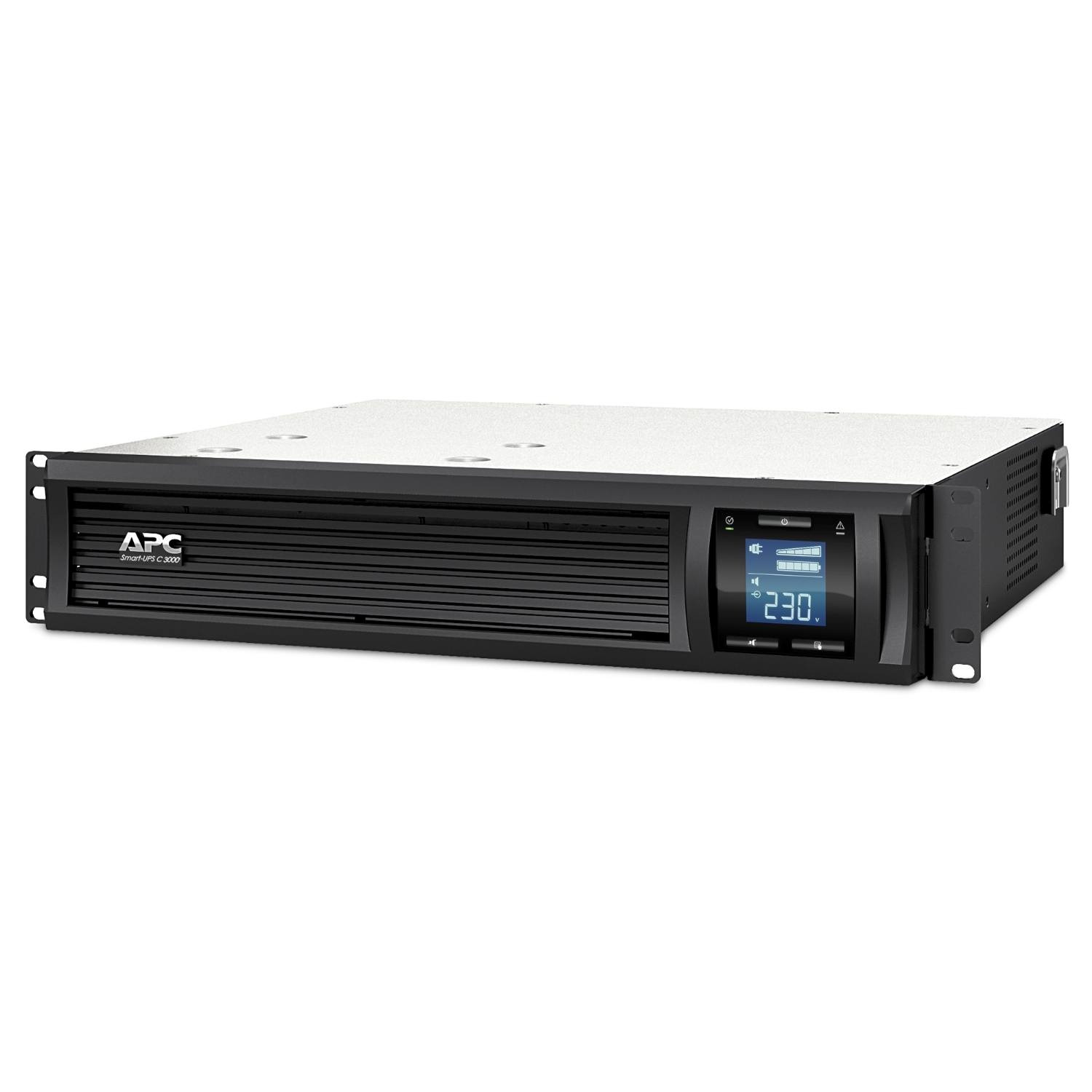

Graphic LCD status and configuration display

Front-panel LCD provides clear real-time data on input/output voltage, load, battery status, alarms, and allows local configuration without software.

Extensive outlet selection

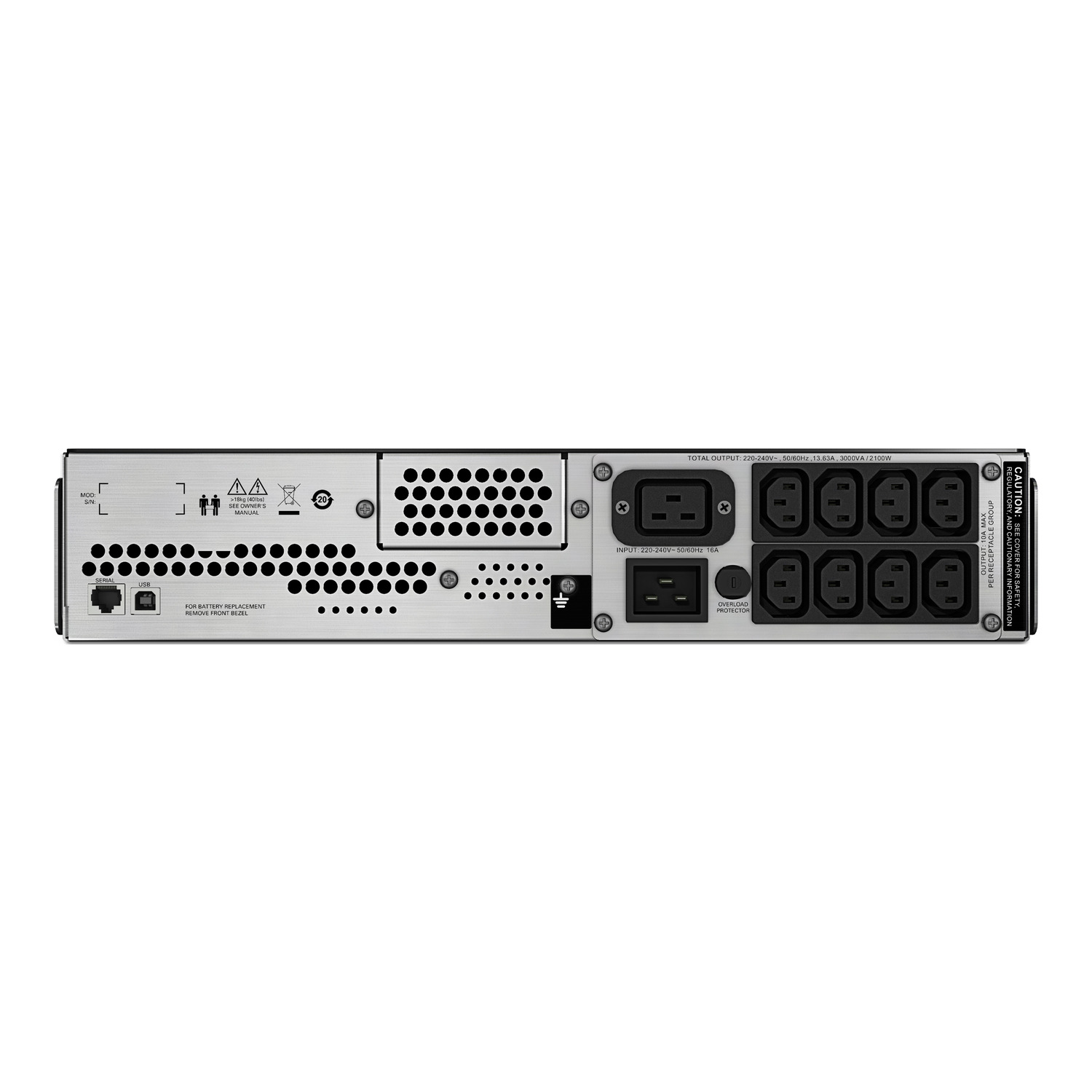

Eight IEC C13 battery-supported outlets, two IEC jumper receptacles, and one IEC C19 port provide flexible equipment protection and rack cable management.

Hot-swappable, user-replaceable battery

Field-replaceable lead-acid battery cartridge (APCRBC151) minimizes downtime and simplifies maintenance.

Efficient protection and filtering

Provides full-time noise suppression and 300 J surge energy absorption to defend against spikes, surges, and power line interference.

Low transfer time

Typical 8 ms (maximum 10 ms) switch-over ensures smooth transitions during power events without system interruptions.

Rack-ready installation

Slim 2U form factor, approximately 89 mm × 480 mm × 670 mm, with mounting brackets and included USB cable for quick rack deployment.

Environmental consciousness

Built with recycled packaging material, offers sustainable design and is covered by APC’s global take-back program.

Product Specifications

• capacity: 3000 VA / 2100 W line-interactive UPS
• topology: line-interactive with automatic voltage regulation
• nominal output voltage: 230 V
• output waveform: pure sine wave, <5% total harmonic distortion
• output frequency: 50/60 Hz ±3 Hz (sync to mains)
• input voltage range (nominal operation): 180–287
• transfer time: typical 8 ms; maximum 10 ms
• input connection: 1 × IEC 320 C20
• output connections: 8 × IEC C13 (battery backup), 2 × IEC jumper, 1 × IEC C19
• battery type: sealed lead-acid, user-replaceable
• replacement battery cartridge: APCRBC151 (1 included)
• typical recharge time: ~3 hours to full charge
• expected battery life: 3–5 years
• surge protection: 300 J
• noise filtering: full-time multi-pole filtering, meets UL 1449 standards
• rack height: 2U
• dimensions: 89 × 480 × 670 mm
• net weight: 41 kg
• acoustic noise: 42 dBA at 1 m
• heat dissipation: 81 BTU/hr
• operating temperature: 0–40 °C; humidity 0–95% non‑condensing
• storage temperature: −15–45 °C; humidity 0–95%
• operating altitude: up to 3048 m; storage altitude up to 15 240 m
• compliance: C‑Tick, CE, EAC, GOST, IRAM, SABS, VDE, GS; UL 1449; EN/IEC 62040‑1/2 standards
• warranty: 2 years repair or replace chassis; APC take‑back and environmental programs apply globally
