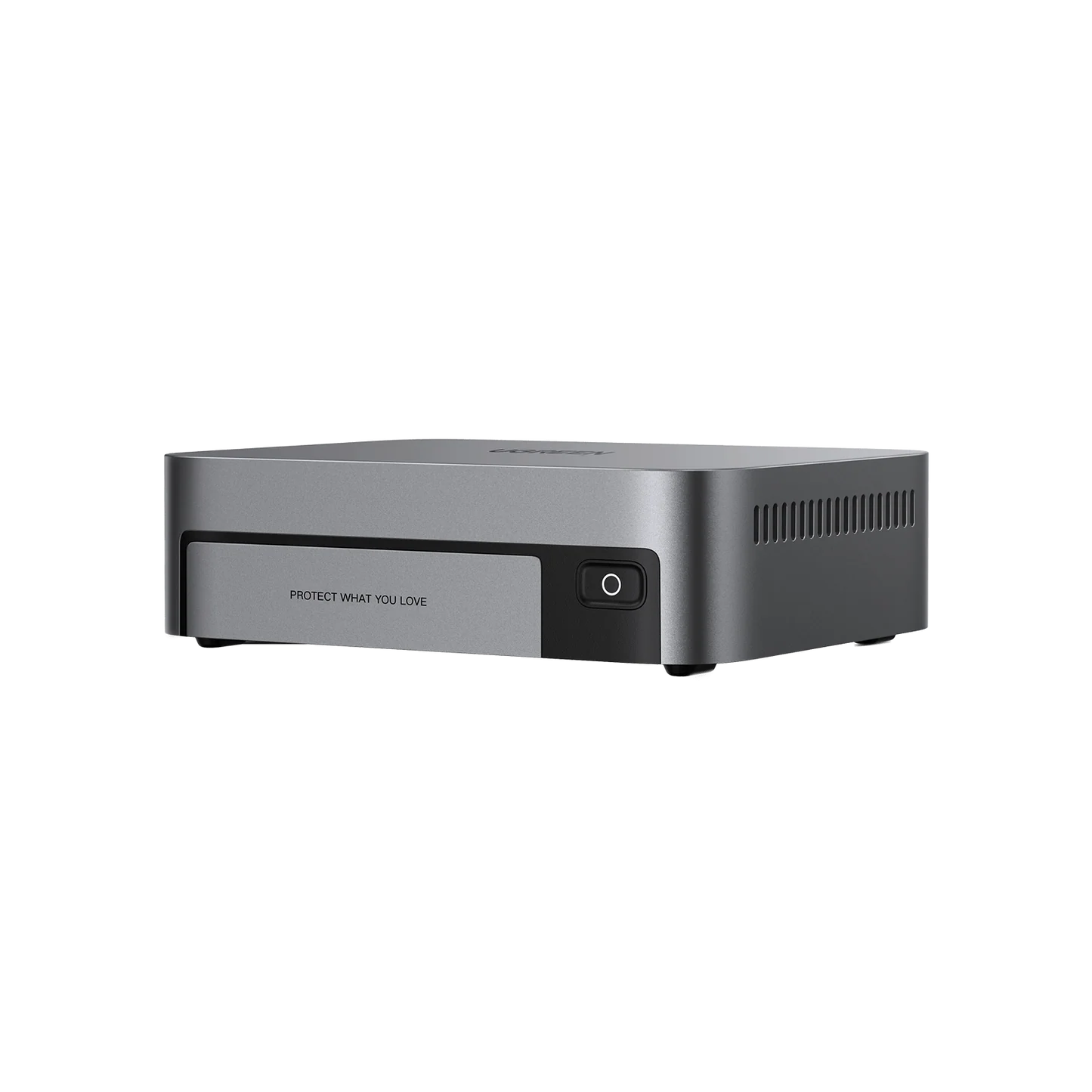

UGREEN NASync DXP480T Plus 4-Slot NVMe SSD NAS (CM718)

UGREEN NASync DXP480T Plus is a high-performance all-flash network-attached storage device featuring a 12th-generation Intel Core i5-1235U CPU, 8 GB of DDR5 memory (expandable to 64 GB), and four M.2 NVMe slots supporting up to 32 TB. With built-in 10 GbE, dual Thunderbolt 4, HDMI 8K output, Wi‑Fi 6, and AI-powered software through UGOS Pro, it caters to creative professionals, home labs, and small offices seeking fast, quiet, scalable, and secure storage.

Product Features

12th-generation Intel Core i5 1235U processor

Delivers 10 cores and 12 threads for responsive multitasking, quick encryption, and smooth handling of virtual machines and containers.

All-flash NVMe storage for ultra-fast performance

Four PCIe Gen4 M.2 NVMe bays provide low-latency read/write operations, ideal for video editing, media streaming, and large file transfers.

High-speed connectivity

Includes 10 GbE LAN for network throughput up to 1.25 GB/s, dual Thunderbolt 4 ports, USB‑A 10 Gb/s, HDMI 8K, and built-in Wi‑Fi 6 for versatile access and local connections.

UGOS Pro software with advanced AI features

UGREEN’s unified platform supports RAID (JBOD/0/1/5/6/10), photo management with AI face/object recognition, firewall, encryption, and remote mobile app control.

Compact, quiet, and well-cooled design

Compact aluminum chassis (≈18 × 14 × 5 cm) with dedicated NVMe heatsinks and twin fans keeps noise around 30 dB—great for desktops or shared workspaces.

Expandable memory

Ships with 8 GB DDR5 (4800 MHz), user-upgradable up to 64 GB via two SODIMM slots for enhanced speed and multitasking.

Product Specifications

• cpu: Intel Core i5‑1235U (10 core / 12 thread)
• memory: 8 GB DDR5 standard; expands to 64 GB via two SODIMM slots
• storage: Four M.2 2280 NVMe slots, up to 32 TB total (4 × 8 TB)
• raid levels: JBOD, basic, RAID 0/1/5/6/10
• os storage: Includes separate M.2 2242 for UGOS Pro system
• network: 1×10 GbE RJ‑45 (Aquantia/Marvell), Wi‑Fi 6
• external ports: 2× Thunderbolt 4 (40 Gb/s), 1× USB‑A 10 Gb/s, 1× HDMI 8K, 1× 3.5 mm audio
• dimensions: 179 × 142 × 52 mm (~7.05″ × 5.59″ × 2.05″)
• weight: ~1.2 kg (approx.)
• power: External 140 W PSU; power draw ~23 W (active), ~17 W (idle)
• cooling: Dual fans under chassis; three-speed modes (quiet/full)
• noise: ≈30 dB under typical load
• security: Firewall, encryption, security manager via UGOS Pro
• software: UGOS Pro OS with Docker/container support; mobile and desktop app integration
• packaging/includes: PSU, thermal pads, Ethernet cable, screws, screwdriver, manual, and two-year seller warranty
