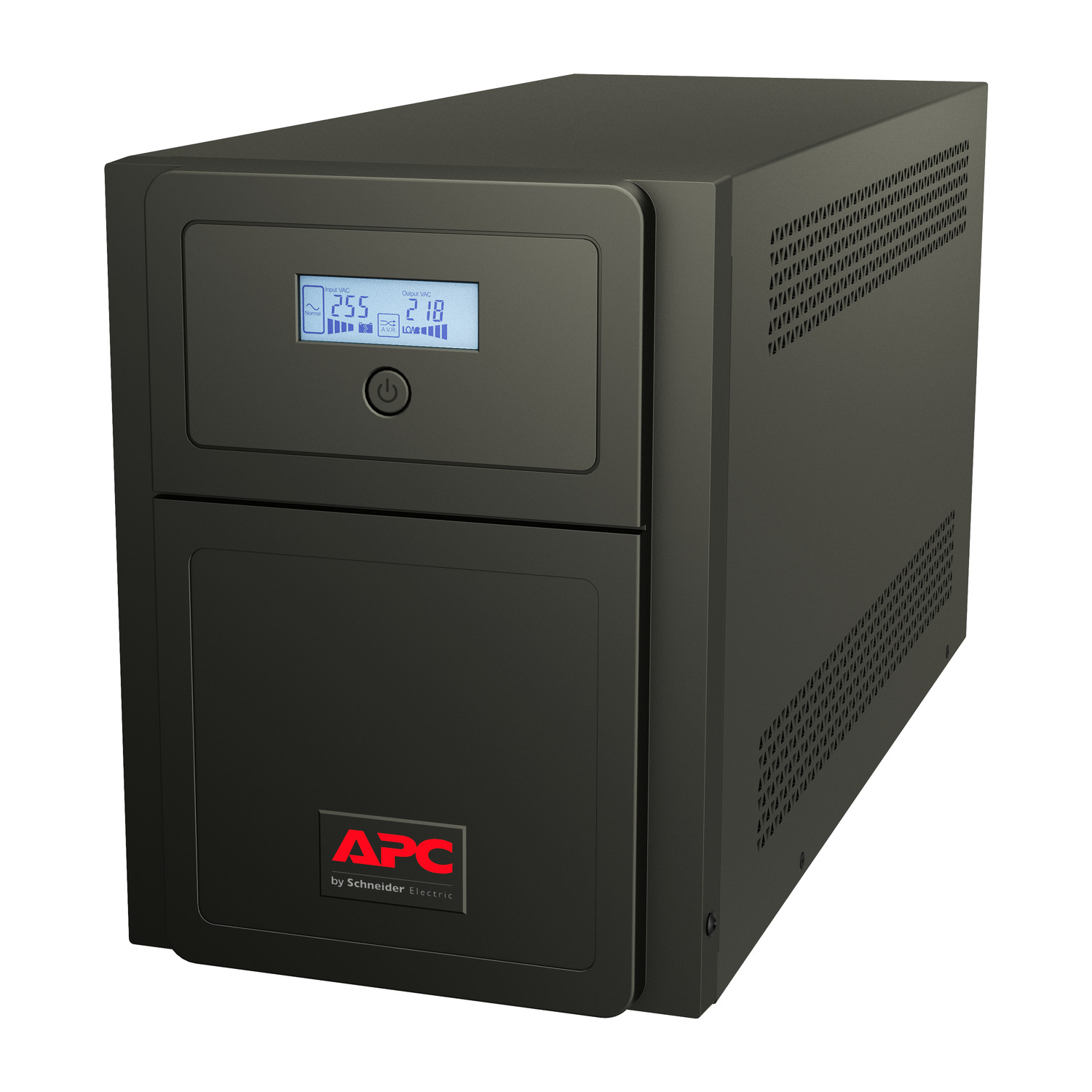

APC Easy UPS 2000 VA SMV2000AI‑MSX Universal Outlet
APC Easy UPS 2000 VA SMV2000AI‑MSX is a line-interactive tower UPS designed to protect critical electronics from power surges, voltage fluctuations, and outages. With a capacity of 2000 VA/1400 W, pure sine-wave battery backup, universal outlets, and automatic voltage regulation (AVR), it delivers reliable, clean power while offering user-friendly monitoring via an LCD interface. Ideal for home offices, networking setups, and small servers.
Product Features
Pure Sine-Wave Battery Output
Delivers a clean sine-wave output during battery operation, ensuring compatibility with sensitive electronics and active PFC devices.
Automatic Voltage Regulation (AVR)
Stabilizes output voltage without draining the battery by correcting undervoltage and overvoltage conditions .
Line-Interactive Topology
Provides fast automatic switchover (2–6 ms typical, 12 ms maximum) in case of power disturbances.
Cold‑Start Capability
Allows the UPS to power connected equipment from battery alone, even when mains power is unavailable
LCD Interface
Offers a graphical display with real-time information on operating status, load, battery level, and active alerts .
Surge Protection
Built-in surge suppression with a 125 Joule surge energy rating helps safeguard your electronics
Audible Alerts
Provides beeps for events such as on-battery, low battery, and overload conditions.
Efficient Battery Management
Features intelligent charging to maximise battery lifespan, with a recharge time of 4–6 hours to 90% capacity .
Safety and Certifications
Complies with CE and EN/IEC 62040-1/-2 safety standards and features IP20 casing and multiple safety alerts.
Product Specifications
- Model: SMV2000AI‑MSX
- Power Capacity: 2000 VA / 1400 W
- Topology: Line-interactive
- Input Voltage Range: 165–295 V; frequency 45–65 Hz auto-sensing
- Output Voltage: 230 V; frequency 50/60 Hz ±1 Hz
- Transfer Time: Typical 2–6 ms, max 12 ms
- Waveform: Pure sine wave

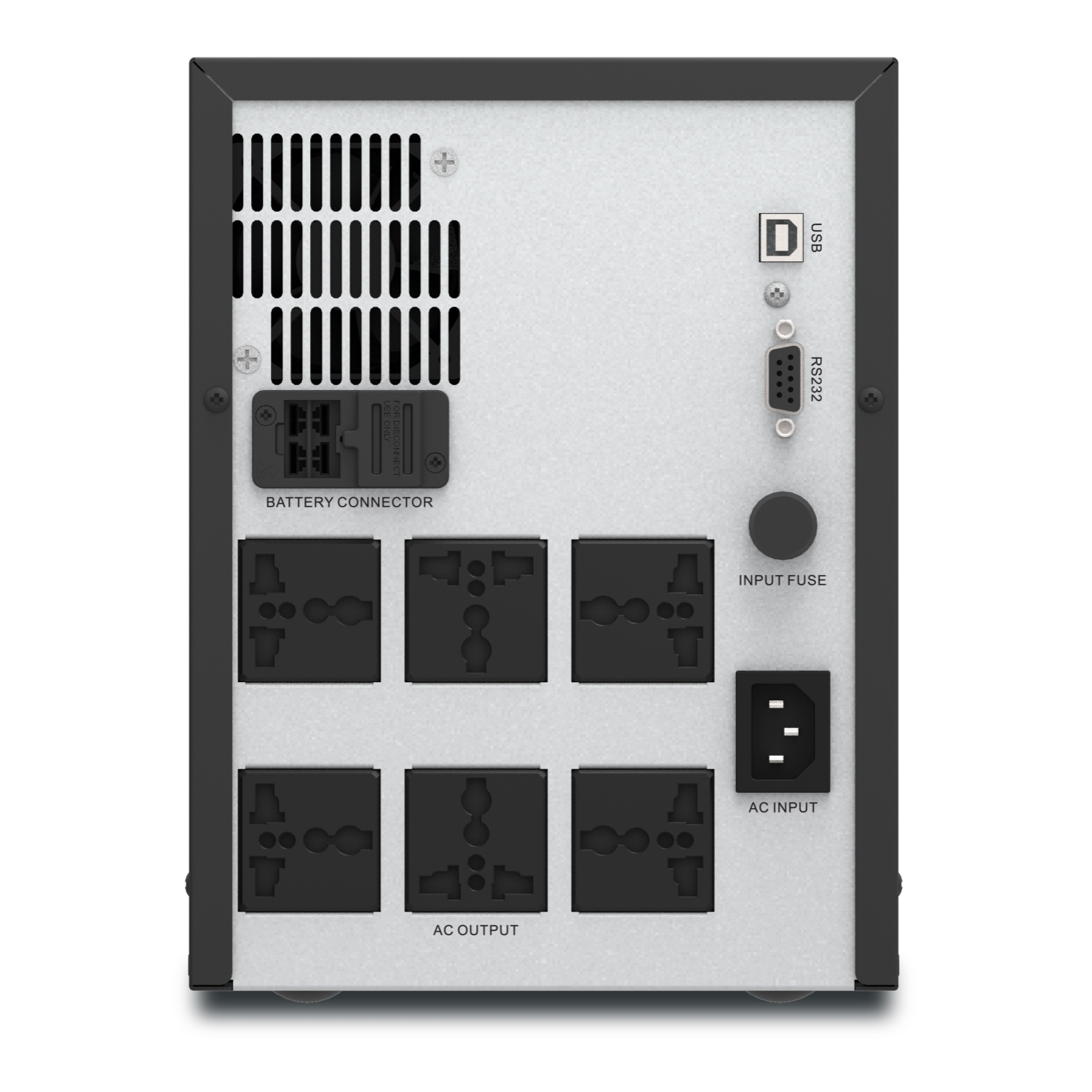

- Outlets: Six universal battery backup receptacles
- Battery Type: Maintenance-free lead-acid (48 V, 336 VAh total)
- Recharge Time: 4–6 hours to 90%
- Surge Rating: 125 J
- Crest Factor: 3:1
- RS‑232 Port: For monitoring via software
- Noise Level: < 45 dBA
- Dimensions (D × W × H): 455 × 180 × 240 mm
- Weight: 23.5 kg (net), ~26.9 kg (shipping)
- Operating Conditions: 0–40 °C; 0–95% RH non-condensing
- Certifications: CE, EN/IEC 62040‑1/-2; IP20
- Warranty: 2 years repair or replace
This UPS provides essential, reliable protection with advanced features like pure sine-wave output, AVR, and monitoring capabilities—making it a top choice for ensuring uninterrupted operation of sensitive equipment in both residential and light commercial environments.
