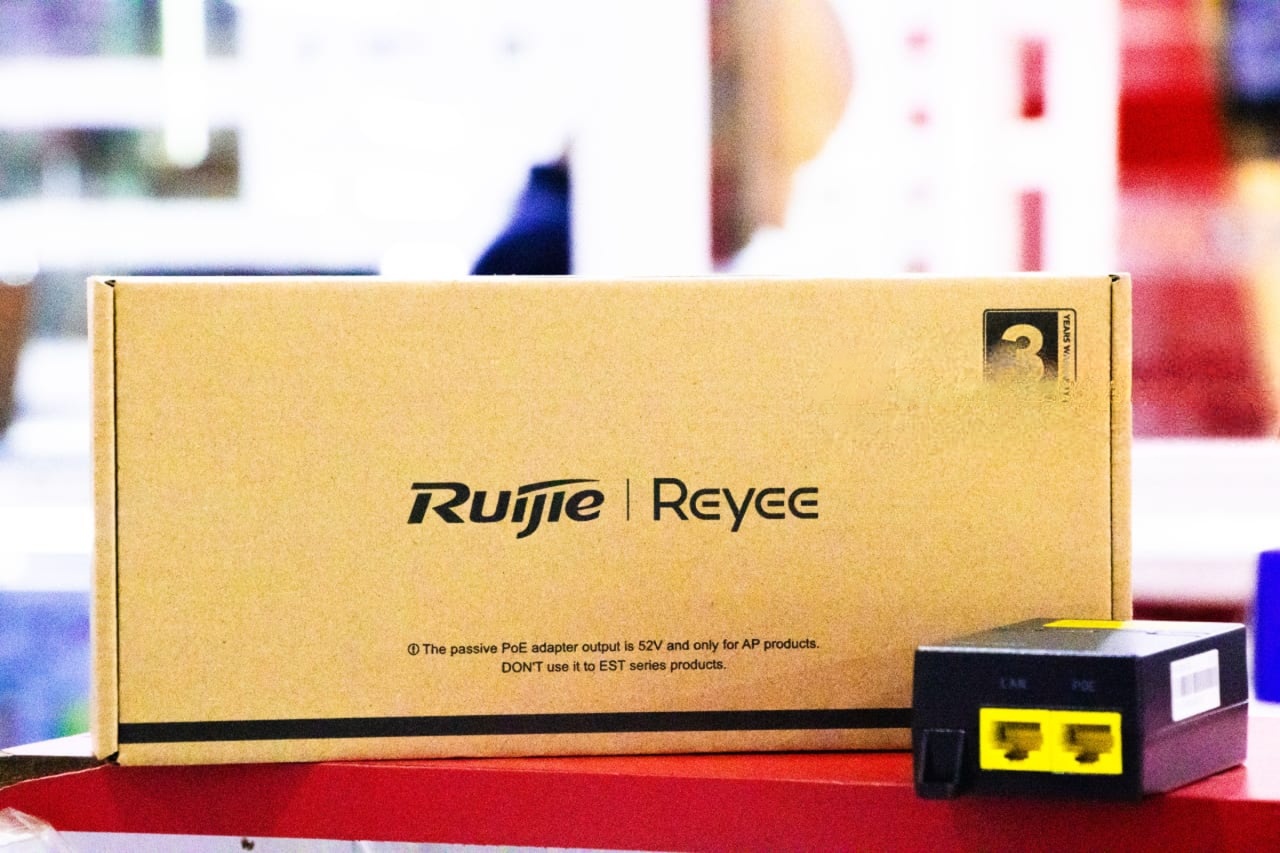

Ruijie RG-POE-50-60W-MG 1-Port 2.5G 60W PoE Injector

The Ruijie RG-POE-50-60W-MG is a high-power single-port PoE injector designed to deliver both data and electrical power to network devices over a single Ethernet cable. Supporting multi-gigabit (2.5G) transmission and up to 60W output, it is ideal for powering high-performance devices such as Wi-Fi 6 access points, PTZ cameras, and outdoor wireless equipment. With a compact design and reliable power delivery, it simplifies installations where PoE switches are not available.

Product Features

60W High-Power PoE Output

Provides up to 60 watts of power, suitable for demanding devices like high-end access points and PTZ surveillance cameras.

2.5G Multi-Gigabit Data Support

Supports 10/100/1000/2500 Mbps Ethernet speeds, ensuring high-speed data transmission alongside power delivery.

IEEE 802.3bt (PoE++) Compatibility

Complies with PoE++ standards, enabling efficient and safe power delivery to compatible devices.

Single-Port PoE Injector Design

Simple plug-and-play solution with one PoE output port, ideal for standalone device installations without a PoE switch.

Stable and Reliable Power Supply

Designed to provide consistent voltage output, ensuring stable operation of connected network devices.

Surge Protection

Includes built-in surge protection to safeguard connected equipment from voltage spikes and power fluctuations.

Wide Operating Temperature Range

Operates reliably in environments ranging from approximately -10°C to +45°C, suitable for indoor and controlled outdoor deployments.

Compact and Easy Installation

Lightweight and space-saving design allows for quick deployment in offices, homes, and network cabinets.

Product Specifications

• Model: RG-POE-50-60W-MG
• Type: 1-port PoE injector (passive PoE)
• PoE Standard: IEEE 802.3bt (PoE++)
• Output Power: Up to 60 W
• Output Voltage: 56 V DC (approx.)
• Ethernet Speed: 10/100/1000/2500 Mbps (2.5G)
• Ports: 1 × PoE output (RJ-45), 1 × data input (RJ-45)
• Input Voltage: 100–240 V AC, 50/60 Hz
• Power Delivery: 4-pair PoE (pins 1,2,4,5 + / 3,6,7,8 -)
• Maximum Distance: Up to 100 meters
• Protection: Surge protection
• Operating Temperature: -10°C to 45°C
• Installation: Desktop or wall-mount
• Application: Powering access points, IP cameras, VoIP phones, and outdoor wireless devices
