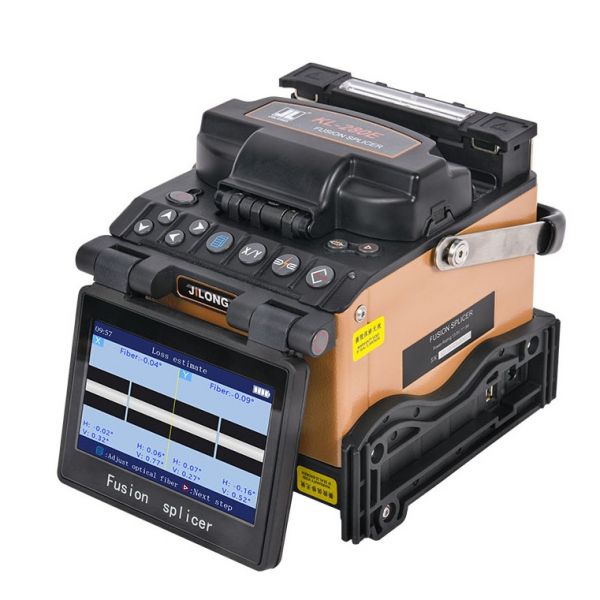

JILONG KL-280E Core Alignment Optical Fiber Fusion Splicer

JILONG KL-280E Core Alignment Optical Fiber Fusion Splicer is a high-precision, easy-to-use fiber splicing solution designed for demanding network installations and maintenance. Equipped with advanced core alignment technology, fast splice and heat times, and a rugged, field-ready design, the KL-280E is ideal for fiber optic deployments in FTTH, data centers, telecom, and enterprise networks. It delivers consistent splice quality with minimal loss, automated operation, and robust connectivity options, making it a dependable tool for both professionals and large-scale projects.

Product Features

Advanced Core Alignment Technology

The KL-280E uses accurate core-to-core alignment for superior splice performance with low insertion loss, suitable for all common fiber types including SM, MM, DS, and NZDS fibers.

Fast Splicing and Heating

Optimized for efficiency, the KL-280E performs a typical splice in just 7 seconds and heat shrink in about 18 seconds, helping technicians complete jobs faster.

User-Friendly Interface

Features a high-resolution 5-inch LCD color touch screen that supports intuitive navigation and real-time splice display, simplifying operation even in outdoor conditions.

Rugged and Portable Design

Built for field environments, the unit is shockproof, dustproof, and weather-resistant. Its compact and lightweight body ensures portability and reliability under harsh conditions.

High-Capacity Battery

Equipped with a long-lasting lithium battery that supports up to 220 splicing and heating cycles per charge, ideal for long working hours in remote locations.

Auto Calibration and Real-Time Monitoring

The fusion splicer supports intelligent arc calibration and real-time splice monitoring to ensure optimal performance and minimal signal loss across all splices.

Large Storage and Data Export

Can store up to 10,000 splice records, which can be exported through a USB port for future analysis, record-keeping, or reporting.

Comprehensive Accessory Set

KL-280E comes complete with essential tools such as a fiber cleaver, stripper, electrodes, AC adapter, battery pack, carrying case, and cleaning accessories.

Product Specifications

• Splicing Method: Core-to-core alignment
• Applicable Fibers: SM, MM, DS, NZDS
• Average Splice Time: Approx. 7 seconds
• Heating Time: Approx. 18 seconds
• Display: 5-inch TFT color LCD touch screen
• Fiber Types: G.652, G.657, G.655, G.653, and G.651
• Magnification: 300X (single), 200X (dual)
• Electrode Life: Up to 3,000 arcs
• Storage Capacity: 10,000 splice results
• Power Supply: AC input or internal lithium battery
• Battery Capacity: Up to 220 splices/heating cycles
• Operating Temperature: -10°C to +50°C
• Storage Temperature: -40°C to +80°C
• Humidity Tolerance: ≤95% (non-condensing)
• Interface Ports: USB for data backup and software updates
• Dimensions: Approx. 120 mm x 120 mm x 130 mm
• Weight: Approx. 2.0 kg (with battery)

Application

JILONG KL-280E Core Alignment Optical Fiber Fusion Splicer is engineered for versatility across multiple industries and deployment environments. Its precision, durability, and portability make it suitable for a wide range of fiber optic network installations, repairs, and upgrades. Below are the key applications:

• FTTH (Fiber to the Home) Projects
  Ideal for last-mile fiber deployments, enabling reliable connections in residential areas.
• Telecommunication Backbone Networks
  Used for long-distance splicing in national and regional telecom infrastructure, ensuring low signal loss and high-speed data transfer.
• Data Centers and Enterprise Networks
  Supports high-density fiber cabling and maintenance within data centers and corporate IT environments, reducing downtime and improving efficiency.
• Broadcast and CCTV Infrastructure
  Facilitates stable video transmission over fiber optics for surveillance systems and broadcasting stations.
• Campus and Metropolitan Area Networks (MANs)
  Connects multiple buildings or departments across educational institutions, business campuses, or city-wide networks.
• Industrial Automation and Smart Grids
  Provides reliable fiber optic connections for automation systems, power grids, and smart infrastructure requiring real-time data communication.
• Emergency Repairs and Field Maintenance
  Its rugged design and battery operation make it perfect for technicians handling urgent repairs or installations in remote or outdoor environments.
• Military and Defense Communications
  Deployed in tactical and secure fiber communication systems requiring portable, fast, and dependable splicing performance.

FAQs

Q1: What type of fibers does the JILONG KL-280E support?
A: KL-280E supports Single-Mode (SM), Multi-Mode (MM), Dispersion Shifted (DS), and Non-Zero Dispersion Shifted (NZDS) fibers. It is compatible with ITU-T G.652, G.657, G.655, G.653, and G.651 fiber standards.

Q2: How long does it take to complete a splice and heat cycle?
A: The typical splicing time is approximately 7 seconds, and the heat shrink process takes around 18 seconds under standard conditions.

Q3: How many splices can be done on a single battery charge?
A: The built-in lithium battery can perform up to 220 splicing and heating cycles per full charge, depending on environmental conditions and usage.

Q4: Is the KL-280E suitable for outdoor or harsh environments?
A: Yes, the splicer is designed with rugged, field-ready housing. It is shock-resistant, dustproof, and weather-resistant, making it suitable for challenging outdoor conditions.

Q5: Can I store and export splice records?
A: Yes, the device can store up to 10,000 splice results. These can be exported via USB for quality control, auditing, or reporting purposes.

Q6: Does the machine support automatic arc calibration?
A: Yes, the KL-280E supports intelligent arc calibration and real-time monitoring to ensure optimal splice quality and minimize signal loss.

Q7: What’s included in the KL-280E splicer package?
A: The standard package includes the splicer unit, fiber cleaver, stripper, spare electrodes, AC power adapter, lithium battery, carrying case, and cleaning tools.

Q8: Can the device be updated or upgraded?
A: Yes, firmware updates and data backups can be done via the USB port, ensuring long-term compatibility and performance improvements.
