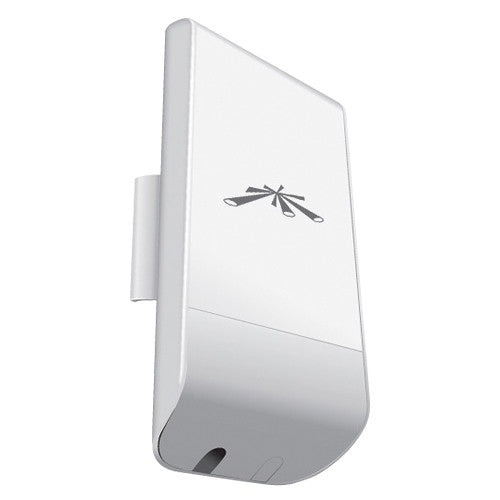

Ubiquiti Networks NanoStation loco M2 Indoor/Outdoor airMAX CPE

Ubiquiti Networks NanoStation loco M2 is a compact, versatile airMAX CPE designed for reliable long‑range wireless connectivity in both indoor and outdoor settings. Operating in the 2.4 GHz band with integrated high‑gain antennas and airMAX technology, the loco M2 delivers efficient throughput, stable links, and simplified deployment for point‑to‑point or point‑to‑multipoint networks. Its rugged, weather‑resistant construction and Power over Ethernet capability make it an ideal choice for broadband bridging, network extension, and service provider applications requiring affordable, high‑performance wireless access.

Product Features

airMAX Protocol Support

Supports Ubiquiti’s airMAX TDMA protocol to improve network efficiency, reduce latency, and increase scalability over standard Wi‑Fi deployments.

2.4 GHz Frequency Band Operation

Operates in the widely compatible 2.4 GHz spectrum, providing extended coverage and reliable signal propagation even through obstacles.

Integrated High‑Gain Antenna

Built‑in high‑gain directional antennas deliver focused signal strength for extended range and improved link stability without the need for external antennas.

Indoor/Outdoor Durability

Designed with a weather‑resistant housing that withstands exposure to outdoor environments while remaining compact enough for indoor use.

Power over Ethernet (PoE)

Enables simplified installation with Power over Ethernet, allowing both power and data to run over a single cable and reducing infrastructure complexity.

airOS Management Interface

Includes access to Ubiquiti’s intuitive airOS software, providing easy configuration, performance monitoring, and advanced networking controls.

Product Specifications

• Frequency band: 2.4 GHz
• Wireless standard: IEEE 802.11b/g/n
• airMAX technology: airMAX TDMA
• Maximum throughput: Up to 100 Mbps+
• Antenna gain: Integrated high‑gain directional
• Antenna type: Directional
• Ethernet interface: 1 × 10/100 Mbps RJ45
• Power method: Power over Ethernet (PoE)
• Power supply: Passive PoE adapter included
• Management: airOS firmware
• Mounting: Pole or wall mount hardware included
• Enclosure: Outdoor weather‑resistant housing
• Operating temperature: −30 °C to 70 °C
