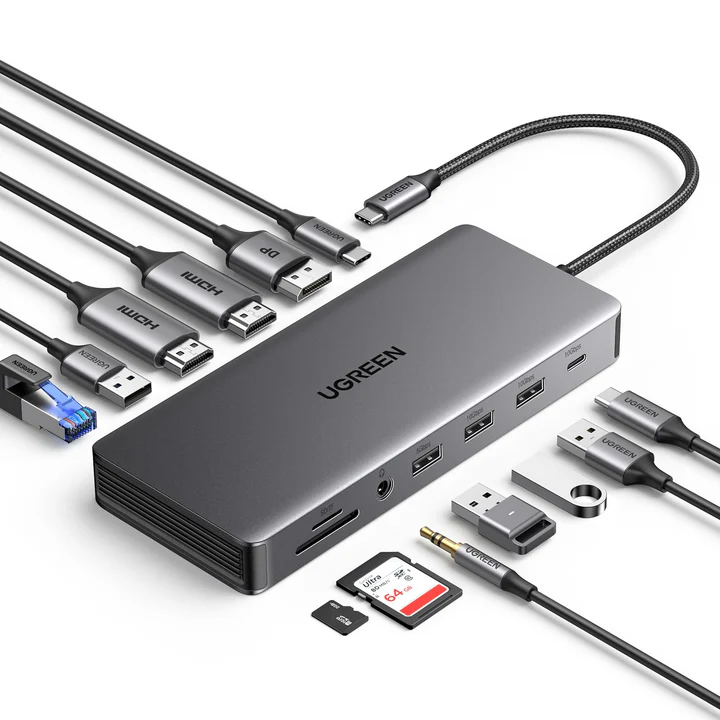

UGREEN Revodok Pro 313 13‑in‑1 USB‑C Docking Station UG-15978

Transform a single USB‑C port into a full-featured workstation with the UGREEN Revodok Pro 313. This compact yet powerful hub supports triple 4K@60 Hz display output via two HDMI ports and one DisplayPort, delivers ultra-fast data transfer via USB‑C and USB‑A at 10 Gbps, offers up to 85 W laptop charging via 100 W power‑delivery pass‑through, includes gigabit Ethernet, SD and microSD card slots, a 3.5 mm audio jack, and broad compatibility across Windows, macOS, Linux, Chrome OS, and Android devices.

Product features

Triple monitor support

Drive up to three independent displays at resolution up to 4K@60 Hz via dual HDMI 2.0 and DisplayPort 1.4 for enhanced multitasking and productivity.

High‑speed data ports

Includes one USB‑C 3.2 Gen 2 port and two USB‑A 3.2 Gen 2 ports supporting data transfer speeds up to 10 Gbps, plus two USB‑A 3.0 ports at up to 5 Gbps.

100 W power delivery

Supports up to 85 W pass‑through charging to your laptop while reserving power for docking operations via a dedicated USB‑C PD port.

Stable wired networking

Built‑in gigabit RJ45 Ethernet port offers reliable, high‑speed internet connections up to 1000 Mbps.

SD and microSD card support

Dual card slots allow simultaneous use of SD and TF (microSD) cards with transfer speeds up to approximately 104 MB/s.

Audio passthrough

Combined 3.5 mm headphone/microphone jack supports analogue audio input/output for headsets and speakers.

Universal compatibility and plug‑and‑play ease

Designed for use with modern USB‑C laptops and tablets including Dell XPS, Lenovo ThinkPad, HP, MacBook, iPad Pro, Chrome OS, Android devices, and more—no drivers typically required on Windows and Linux. Note that macOS supports only mirrored output.

Product specifications

• Model: 15978 / CM681
• Total ports: 13‑in‑1 multifunction hub
• USB Ports:
  • 1 × USB‑C 3.2 Gen 2 data port (10 Gbps)
  • 2 × USB‑A 3.2 Gen 2 (10 Gbps)
  • 2 × USB‑A 3.0 (5 Gbps)
• Video outputs:
  • 2 × HDMI 2.0 (up to 4K@60 Hz)
  • 1 × DisplayPort 1.4 (up to 4K@60 Hz)
• Power delivery port: USB‑C PD up to 100 W (≈85 W pass‑through)
• Ethernet: 1 × RJ45 gigabit port (10/100/1000 Mbps)
• Memory card slots: 1 × SD, 1 × TF (microSD)
• Audio: 3.5 mm combined headphone/mic jack
• Display support: up to 3 external monitors (Windows; macOS mirrored only)
• Transfer speeds: USB‑C and USB‑A 3.2 up to 10 Gbps; USB‑A 3.0 up to 5 Gbps
• Max display resolution: 4K@60 Hz
• Dimensions: approx. 145 × 70 × 20 mm
• Weight: approx. 306 g
• Compatibility: Windows XP and above, macOS, Linux, Chrome OS, Android
• Cable length: approx. 250 mm built‑in USB‑C cable
