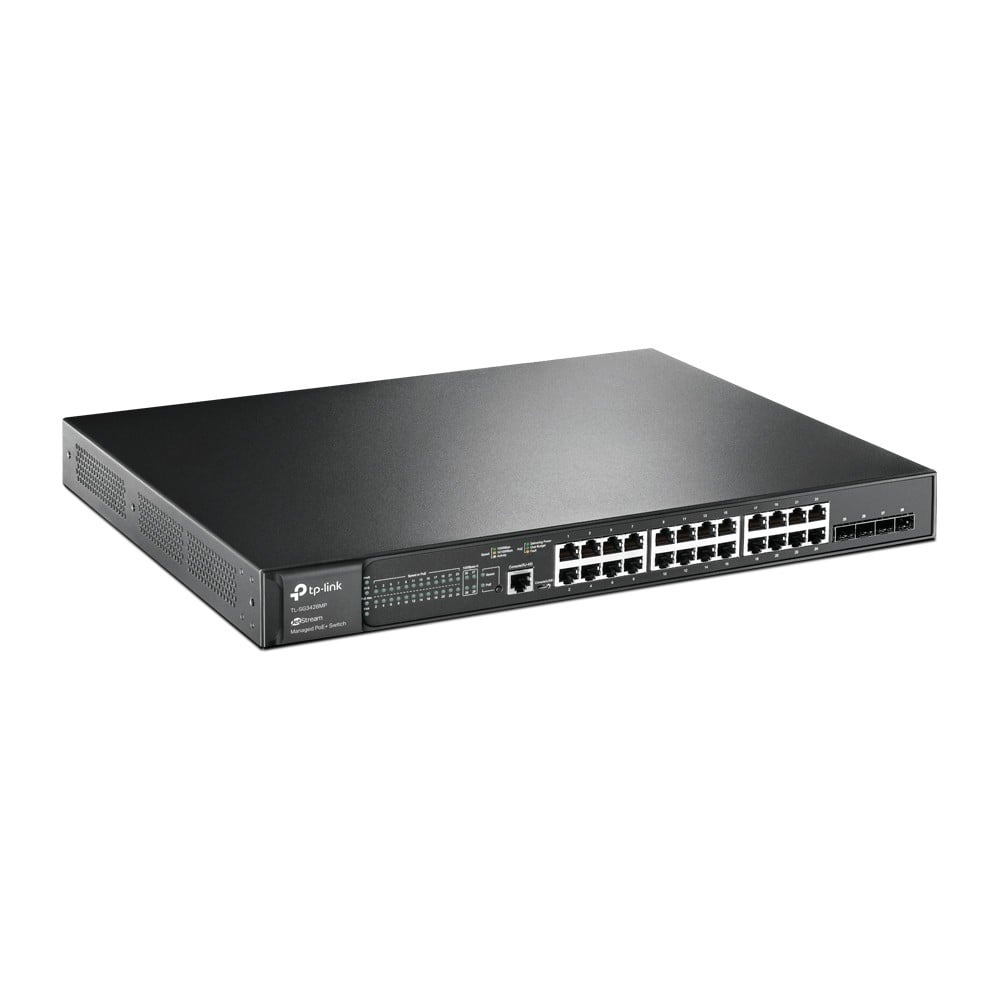

TP-Link TL-SG3428MP JetStream™ 28-Port Gigabit L2+ Managed Switch with 24-Port PoE+

TP-Link TL-SG3428MP JetStream 28-Port Gigabit L2+ Managed Switch with 24-Port PoE+ is a powerful and scalable networking solution for medium-sized enterprise environments that require advanced Layer 2+ management and reliable Power over Ethernet support. With 24 PoE+ capable Gigabit ports and 4 additional Gigabit uplink ports, this managed switch delivers flexible connectivity, robust network control, and enhanced security features to support IP cameras, Wi-Fi access points, VoIP phones, and other PoE devices while ensuring optimized performance and network efficiency.

Product Features

24 Gigabit PoE+ Ports with High Power Delivery

Equipped with 24 IEEE 802.3af/at compliant Gigabit PoE+ ports, the TL-SG3428MP supplies both power and data over a single Ethernet cable for connected PoE devices. This streamlines deployments and eliminates the need for separate power sources.

Four Gigabit Uplink Ports

In addition to PoE+ ports, the switch includes 4 non-PoE Gigabit uplink ports to connect to core network infrastructure, improving data throughput and supporting seamless network expansion.

Advanced Layer 2+ Managed Capabilities

Designed for sophisticated network control, this JetStream switch supports enhanced Layer 2+ features such as static routing, VLAN, QoS, Access Control Lists, Link Aggregation, IGMP Snooping, and MSTP. These tools help prioritize traffic, optimize network efficiency, and ensure reliable communication across devices.

Comprehensive Security Controls

The TL-SG3428MP includes robust security mechanisms, including 802.1X authentication, IP-MAC-Port Binding, Access Control Lists, and Storm Control to protect against unauthorized access and network threats while maintaining secure network operations.

Centralized Management Support

Administrators can manage the network through multiple interfaces including web GUI, Command Line Interface (CLI), SNMP, and RADIUS. Integration with TP-Link’s management platforms enables centralized configuration and monitoring of multiple switches for simplified network administration.

Generous PoE Power Budget

With a high total PoE power budget, the switch supports powering multiple high-power devices simultaneously, ensuring stable power distribution across connected equipment in demanding environments.

Commercial-Grade Durability and Installation Flexibility

The TL-SG3428MP features a rugged metal housing and supports both desktop placement and standard rackmount installation, providing flexibility in deployment across server rooms, wiring closets, or office environments.

Product Specifications

• Model: TL-SG3428MP
• Network Ports: 28 × 10/100/1000 Mbps Gigabit RJ45 ports
• PoE+ Ports: 24 × Gigabit PoE+ (IEEE 802.3af/at)
• Uplink Ports: 4 × Gigabit Ethernet (non-PoE)
• Total PoE Power Budget: Up to 370W
• Switching Capacity: 56 Gbps
• Forwarding Rate: 41.67 Mpps
• MAC Address Table: 16K entries
• VLAN Support: Up to 4K VLAN IDs
• QoS Features: Port-based, 802.1p, DSCP priority
• Management Interfaces: Web GUI, CLI, SNMP, RADIUS
• Security Features: 802.1X, ACL, IP-MAC-Port Binding, Storm Control
• Static Routing: Supported
• Link Aggregation: LACP supported
• Installation: Desktop or rackmount
• Power Supply: Internal
• Operating Temperature: 0°C to 40°C
• Enclosure: Metal chassis
