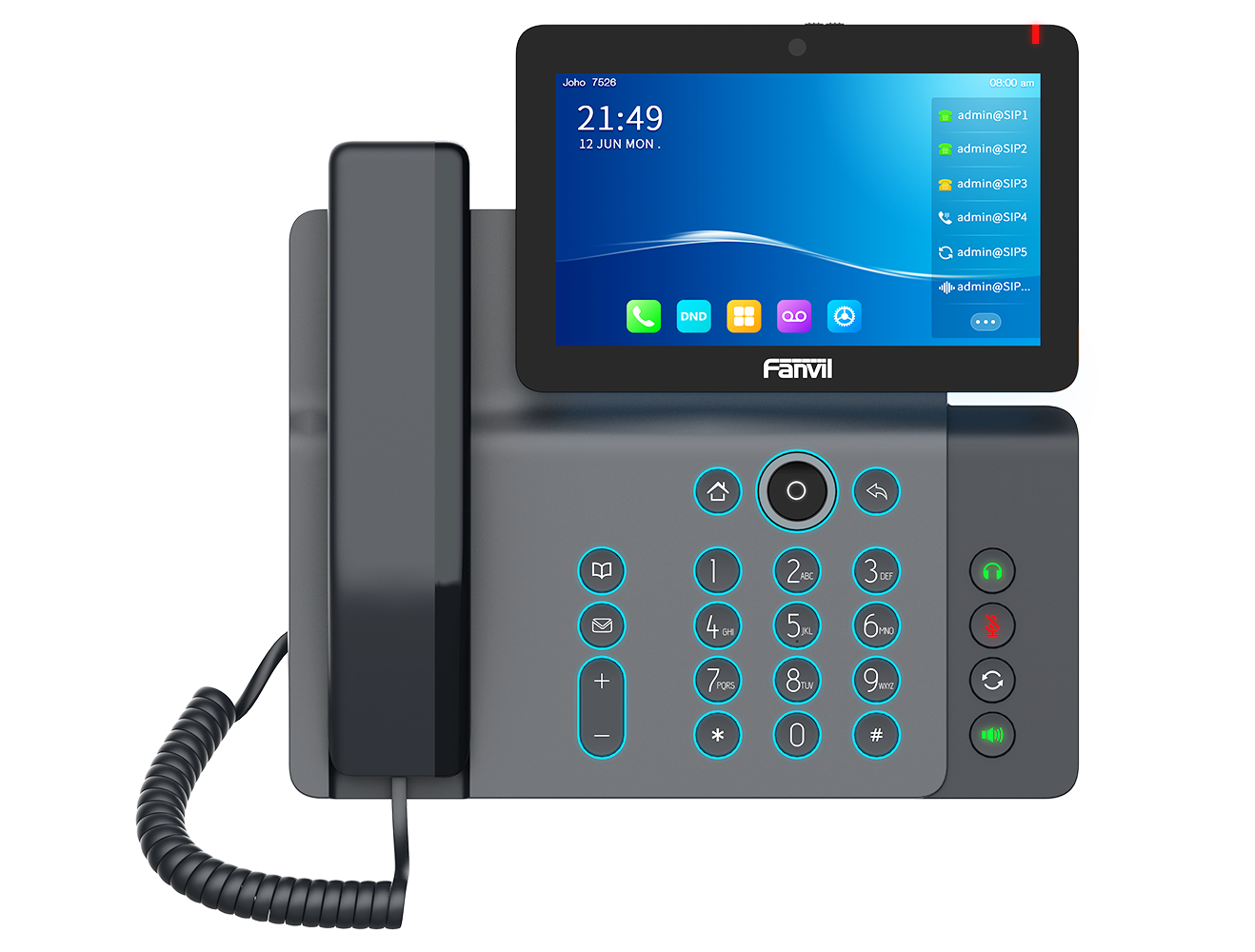

Fanvil V67 Flagship Smart Video Phone

Fanvil V67 Flagship Smart Video Phone is a premium IP phone designed for executives, managers, and teleworkers, offering a blend of advanced features and elegant design.

Display & Design

• 7-inch Adjustable Touchscreen: Capacitive display with 1024×600 resolution, adjustable between 0° to 40° for optimal viewing angles.

• Colorful LED Keypad: RGB LED lighting inspired by luxury car interiors, serving as customizable status indicators for events like boot-up, ringing, and message waiting.

• Antibacterial Surface: Handset and keypad surfaces are made of antibacterial materials, effectively inhibiting over 99.5% of bacterial growth.

Camera & Video

• 5MP HD Camera: Built-in camera with mechanical privacy shutter, supporting 1080p video at 30 frames per second.

• Video Conferencing: Supports up to 3-party video conferencing and 10-party audio conferencing, including up to 2-way video calls.

• Video Codec: H.264, with resolutions up to 1080p.

Audio & Voice

• Audio Codecs: Supports wideband codecs like G.722 and Opus, as well as narrowband codecs including G.711a/u, G.729AB, and iLBC.

• Audio Features: HD voice with full-duplex hands-free speakerphone, acoustic echo cancellation (AEC), noise reduction (NR), voice activity detection (VAD), comfort noise generation (CNG), and automatic gain control (AGC).

Connectivity & Network

• Wi-Fi: Dual-band 2.4GHz and 5GHz Wi-Fi (802.11 a/b/g/n/ac) for flexible wireless connectivity.

• Bluetooth: Built-in Bluetooth 5.0 for pairing with headsets and mobile devices.

• Ethernet: Dual 10/100/1000 Mbps Ethernet ports with integrated Power over Ethernet (PoE) support.

• USB: One USB 2.0 Type-A port for connecting USB headsets or flash drives.

• Network Protocols: Supports IPv4, SIP2.0 over UDP/TCP/TLS, RTP/RTCP/SRTP, STUN, DHCP, LLDP, PPPoE, 802.1x, OpenVPN (via third-party app), SNTP, FTP/TFTP, HTTP/HTTPS, TR-069, and AES128 & AES256 encryption.

Operating System & Applications

• OS: Android 9.0, providing a secure and customizable platform.

• Pre-installed Apps: Includes File Manager, Calendar, Gallery, Browser, Email, Calculator, Notepad, Sound Recorder, Clock, Video Player, and Music Player.

• Third-Party Support: Allows installation of third-party applications and supports secondary development through a comprehensive SDK.

Telephony Features

• SIP Lines: Supports up to 20 SIP lines with SIP hotspot functionality.

• DSS Keys: Up to 116 programmable DSS (Direct Station Selection) keys, configurable as Line, BLF, Speed Dial, etc.

• Phonebook: Local phonebook supports up to 2000 entries; remote phonebook via XML/LDAP also supports 2000 entries.

• Call Logs: Stores up to 1000 entries, including incoming, outgoing, and missed calls.

• Call Features: Includes call transfer (attended/unattended), call forwarding (always/busy/no answer), call hold/resume, call waiting, caller ID display, speed dial, anonymous call, call parking/pick-up, redial, do-not-disturb, auto-answering, voicemail (with server support), hotline, hotdesking, and BLF.

Security & Management

• Security Protocols: TLS, SRTP, HTTPS, 802.1x network authentication, and support for AES128 & AES256 encryption.

• Management: Supports auto-provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR-069, web management portal, web-based packet dump, configuration export/import, phonebook import/export, firmware upgrades, and syslog.

Physical Specifications

• Dimensions: Approximately 245.4 x 252.5 x 63 mm.

• Weight: Approximately 1 kg.

• Installation: Supports desktop stand and wall mounting (wall mount kit sold separately).

• Color: Gunmetal.

• Operating Conditions: Temperature range of 0°C to 45°C; humidity range of 10% to 95%.
