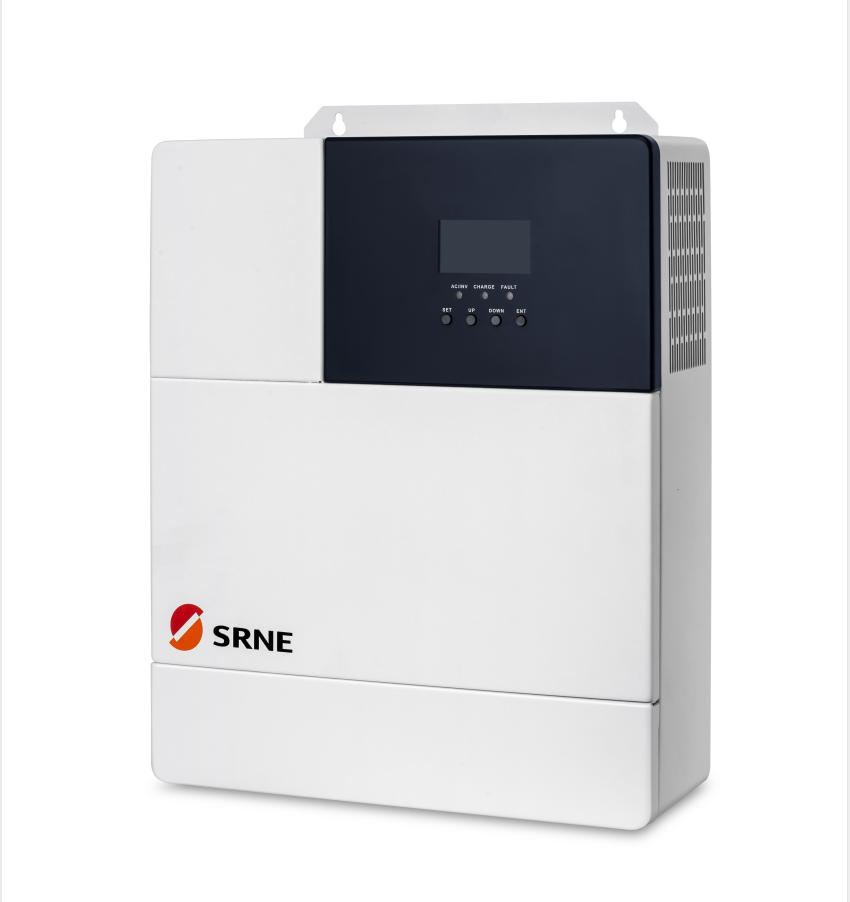

SRNE 5kW Hybrid Solar Inverter 48VDC

SRNE 5kW Hybrid Solar Inverter 48VDC is a high-performance power management system engineered for homes, offices, and small commercial setups seeking reliable renewable energy solutions. This inverter intelligently combines solar power, grid electricity, and battery backup to ensure consistent power supply. With advanced MPPT technology, pure sine wave output, and wide battery compatibility, the SRNE 5kW Hybrid Inverter delivers maximum efficiency, durability, and intelligent energy utilization.

Product Features

Hybrid Power Operation

The inverter seamlessly integrates solar energy, battery storage, and grid power, automatically switching between sources to maintain continuous and efficient electricity supply.

Advanced MPPT Technology

Equipped with a high-efficiency Maximum Power Point Tracking (MPPT) solar charge controller, it optimizes solar energy conversion, achieving up to 98% tracking efficiency.

Pure Sine Wave Output

Produces a clean and stable AC output, making it safe for sensitive electronics and appliances such as refrigerators, computers, and medical equipment.

Wide Input Voltage Range

Supports a broad PV input voltage range, providing flexibility in solar array design and maximizing power generation under varying sunlight conditions.

Intelligent LCD Display

Features a user-friendly LCD interface that displays real-time data on solar input, battery status, load power, and system performance for easy monitoring and management.

Multi-Protection Design

Built with comprehensive protection features, including overload, short-circuit, over-temperature, and overvoltage safeguards, ensuring reliable operation and system longevity.

Battery Compatibility

Compatible with both lithium-ion and lead-acid batteries, allowing users to customize their power storage solutions according to budget and application needs.

Efficient Cooling and Compact Design

Designed with an intelligent fan cooling system and a compact body for easy wall mounting, the inverter ensures efficient heat dissipation and long-term stability.

Product Specifications

• Rated Power Output: 5kW (5000W)
• Inverter Type: Hybrid (Solar + Grid + Battery)
• DC Input Voltage: 48VDC
• PV Input Voltage Range: 120VDC – 450VDC
• MPPT Tracking Efficiency: ≥98%
• Output Voltage: 230VAC ±5%
• Output Frequency: 50/60Hz (auto detection)
• Waveform: Pure Sine Wave
• Battery Voltage: 48VDC
• Maximum Charging Current: Up to 80A
• Supported Battery Types: Lead-acid / Lithium-ion
• Communication Interface: RS485 / USB / Wi-Fi (optional)
• Cooling Method: Intelligent Fan Cooling
• Protection Features: Overload, Short Circuit, Over-temperature, Reverse Polarity, Overvoltage
• Operating Temperature Range: -10°C to +50°C
• Installation Type: Wall Mount
• Dimensions: Approx. 460 x 350 x 130 mm
• Weight: Approx. 10.5 kg

SRNE 5kW Hybrid Solar Inverter 48VDC is the perfect solution for users seeking dependable off-grid and hybrid power performance. It ensures maximum energy efficiency, smart control, and sustainable energy independence for modern homes and businesses.
