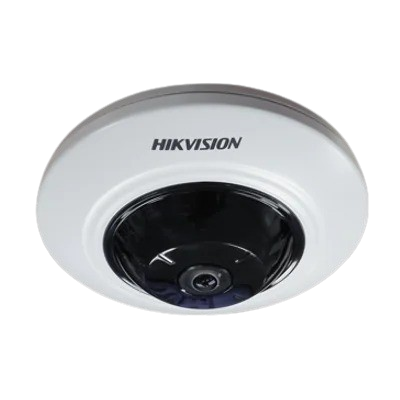

Hikvision DS-2CD2955G0-IS(U) 5MP Fixed Fisheye Network Camera

Hikvision DS-2CD2955G0-IS(U) is a powerful 5MP fisheye network camera designed to deliver comprehensive 360-degree panoramic surveillance. Equipped with a 1/2.7″ progressive scan CMOS sensor, it captures ultra-HD images with exceptional clarity and detail. The camera’s advanced fisheye lens eliminates blind spots, making it ideal for retail stores, offices, banks, and large public spaces. Multiple dewarping modes, smart IR night vision, and intelligent video analytics ensure reliable, efficient monitoring. With H.265+ compression and robust network security features, this camera offers superior video quality, efficient storage, and seamless remote access.

Product Features

5MP Ultra HD Image Quality

Delivers detailed and clear video footage at a resolution of 2560 × 1920 using a 1/2.7″ progressive scan CMOS sensor, ensuring sharp surveillance images.

360° Panoramic Fisheye View

Features a fixed 1.05mm fisheye lens providing a full 180° horizontal, vertical, and diagonal field of view for complete coverage without blind spots.

Multiple Dewarping Modes

Offers versatile viewing options including panoramic, corridor, and multi-region dewarping to optimize monitoring based on installation needs.

Advanced Night Vision with Smart IR

Equipped with infrared illumination extending up to 8 meters, this camera delivers clear video even in total darkness, enhanced by smart IR to reduce glare.

Wide Dynamic Range (WDR) for Balanced Exposure

Utilizes true 120dB WDR technology to balance bright and dark areas, enhancing visibility in scenes with high contrast lighting.

Smart Video Analytics for Proactive Security

Includes motion detection, video tampering alarm, line crossing detection, and intrusion detection to improve security effectiveness and minimize false alarms.

H.265+ Video Compression for Efficient Storage

Supports advanced video compression standards that significantly reduce bandwidth and storage needs while maintaining excellent video quality.

Built-in Audio Capabilities

Features a built-in microphone and supports mono sound recording for real-time audio capture alongside video footage.

Flexible Installation & Mounting Options

Supports wall, ceiling, and table mounting, providing flexible deployment choices to suit various environments.

Robust Network & Security Features

Includes HTTPS encryption, password protection, IP filtering, and compatibility with ONVIF and Hikvision’s Hik-Connect and iVMS-4200 platforms for secure, seamless integration.

Weatherproof & Durable Design

Constructed with durable ADC12 metal housing suitable for indoor and semi-outdoor environments, ensuring long-lasting performance.

Product Specifications

Camera

• Image Sensor: 1/2.7″ Progressive Scan CMOS
• Resolution: 2560 × 1920 (5MP Ultra HD)
• Shutter Time: 1/3s to 1/100,000s
• Min Illumination: Color: 0.017 Lux (F2.25, AGC ON), B/W: 0 Lux with IR
• Day/Night: IR Cut Filter

Lens

• Type: Fixed focal, 1.05mm
• Field of View: 180° horizontal, vertical, diagonal
• Aperture: F2.25
• Depth of Field: 0.1m to infinity

Illumination

• Type: IR
• Range: Up to 8 meters
• Wavelength: 850 nm
• Smart IR: Yes

Video

• Frame Rate: 25/30 fps at max resolution
• Compression: H.265+/H.265/H.264+/H.264
• Bit Rate: 32 Kbps to 16 Mbps
• WDR: 120dB

Audio

• Type: Mono sound
• Compression: G.711, G.722.1, G.726, MP2L2, PCM, AAC-LC
• Noise Filtering: Yes

Network & Security

• Protocols: TCP/IP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, SNMP, IGMP, QoS, IPv6
• Live View: Up to 6 channels simultaneously
• User Levels: Admin, Operator, User (up to 32 users)
• Storage: NAS (NFS, SMB/CIFS) support

Interface

• Ethernet: RJ45 10M/100M adaptive
• Storage: microSD up to 256GB
• Audio I/O: Line-in and line-out supported
• Alarm: 1 input, 1 output (Max. 12VDC, 30mA)
• Reset Key: Yes

Power & Environment

• Supply: 12V DC ±25%, PoE (IEEE 802.3af, Class 3)
• Power Consumption: Max 7.5W
• Operating Temp: -10°C to 50°C
• Humidity: ≤ 95% (non-condensing)

Physical

• Material: ADC12 metal housing
• Dimensions: Ø119.9 mm × 41.2 mm
• Weight: Approx. 320 g

Certifications

• EMC: CE, RCM, IC, KC
• Safety: UL, CB, CE-LVD, BIS, LOA
• Environmental: CE-RoHS
